BU-P42 Series
Manufacturer: Mueller Electric Co
Beta
⌘K

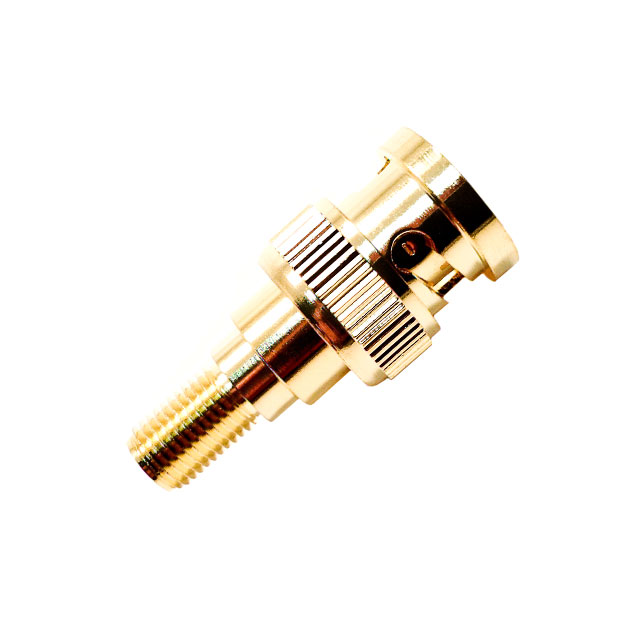

RF ADAPTERS - BETWEEN SERIES ADAPTER BNC MALE TO SMA FEMALE GOLD
| Part | Center Contact Material | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Body Finish | Body Material | Impedance | Conversion Type | Adapter Type | Convert To (Adapter End) | Adapter Series | Fastening Type | Fastening Type | Frequency - Max [Max] | Mounting Type | Convert From (Adapter End) | Style | Center Contact Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mueller Electric Co | Beryllium Copper | Polytetrafluoroethylene (PTFE) | 170 °C | -50 °C | Gold | Brass | 50 Ohms | Between Series | Plug to Jack | SMA Jack Female Socket | BNC to SMA | Threaded | Bayonet Lock | 12.4 GHz | Free Hanging (In-Line) | BNC Plug Male Pin | Straight | Gold |
 Mueller Electric Co | Beryllium Copper | Polytetrafluoroethylene (PTFE) | 170 °C | -50 °C | Gold | Brass | 50 Ohms | Between Series | Plug to Jack | SMA Plug Male Pin | BNC to SMA | Threaded | Bayonet Lock | 12.4 GHz | Free Hanging (In-Line) | BNC Jack Female Socket | Straight | Gold |
