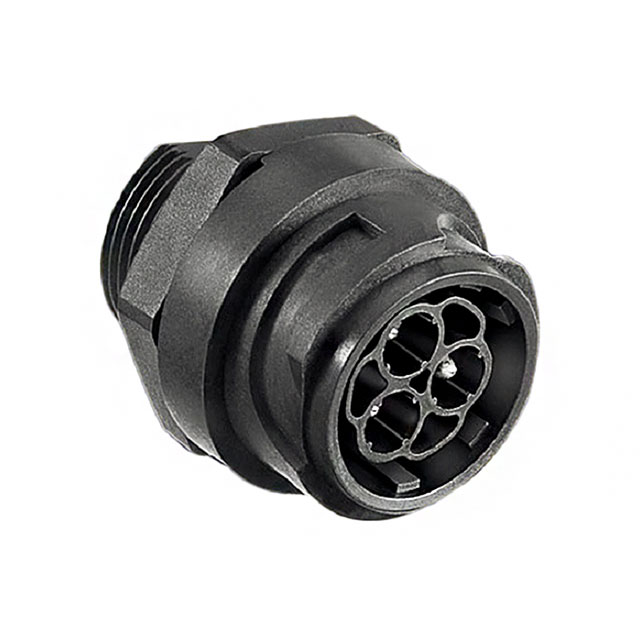

C016 10P002 Series
Manufacturer: Amphenol Tuchel Industrial
Beta
⌘K
CONN RCPT HSNG MALE 3POS PNL MT
| Part | Mounting Feature | Contact Shape | Number of Positions | Housing Color | Shell Size - Insert | Material Flammability Rating | Shell Material | Shielding | Connector Type | Contact Size | Type | Fastening Type | Features | Mounting Type | Orientation | Note | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Tuchel Industrial | Bulkhead - Rear Side Nut | Circular | 3 | Black | 1 | UL94 V-0 | Nylon 6/6 Polyamide (PA66) | Unshielded | Receptacle Housing | 2.5 mm | For Male Pins | Bayonet Lock | UV Resistant | Panel Mount | N (Normal) | Contacts Not Included | 125 °C | -40 C | Crimp | IP67 - Dust Tight Waterproof |
