043743 Series
Manufacturer: Molex
Beta
⌘K

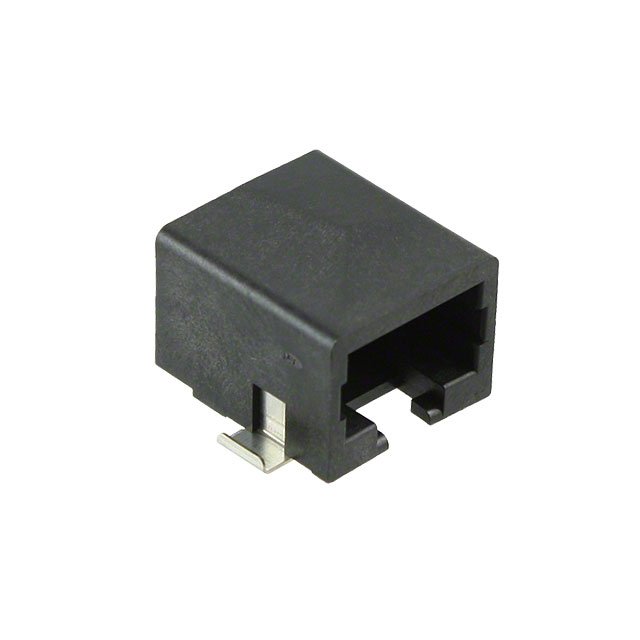

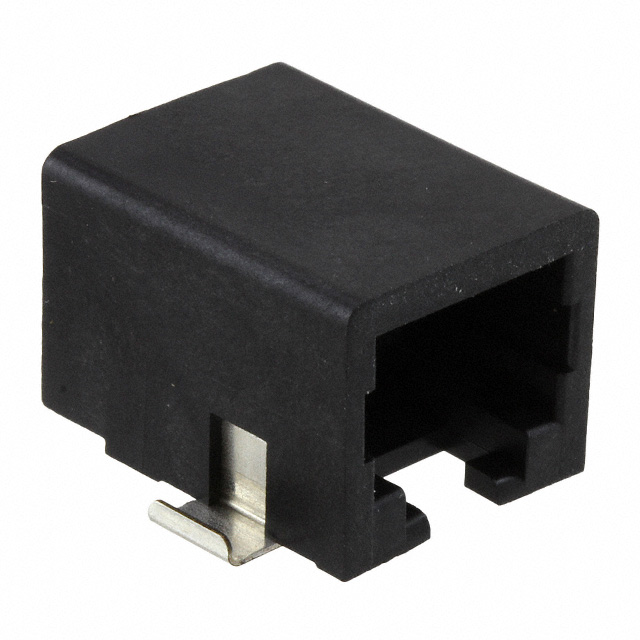

CONN MOD JACK 6P2C R/A UNSHLD
| Part | Connector Type | Mounting Type | Number of Ports | Ratings | Number of Positions/Contacts | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Tab Direction | LED Color | Number of Rows | Orientation | Contact Finish | Shielding | Housing Material | Contact Material | Termination | Features | Number of Positions/Contacts |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | Jack | Surface Mount | 1 | Cat3 | 2 6 | 50 µin | 1.27 µm | -40 °C | 70 °C | Down | Does Not Contain LED | 1 | 90 ° | Gold | Unshielded | Polyamide (PA) Nylon Glass Filled | Phosphor Bronze | Solder | Solder Retention | |
Molex | ||||||||||||||||||||
 Molex | Jack | Surface Mount | 1 | Cat3 | 15 µin | 0.38 µm | -40 °C | 80 C | Down | Does Not Contain LED | 1 | 90 ° | Gold | Unshielded | Polyamide (PA) Nylon Glass Filled | Phosphor Bronze | Solder | Solder Retention | 8p8c (RJ45 Ethernet) | |
Molex | Jack | Surface Mount | 1 | Cat3 | 30 Áin | 0.76 Ám | -40 °C | 70 °C | Down | Does Not Contain LED | 1 | 90 ° | Gold | Unshielded | Polyamide (PA) Nylon Glass Filled | Phosphor Bronze | Solder | Solder Retention | 6p4c | |
 Molex | Jack | Surface Mount | 1 | Cat3 | 30 Áin | 0.76 Ám | -40 °C | 70 °C | Down | Does Not Contain LED | 1 | 90 ° | Gold | Unshielded | Polyamide (PA) Nylon Glass Filled | Phosphor Bronze | Solder | Solder Retention | 6p6c (RJ11 RJ12 RJ14 RJ25) | |
Molex | Jack | Surface Mount | 1 | Cat3 | 50 µin | 1.27 µm | -40 °C | 70 °C | Down | Does Not Contain LED | 1 | 90 ° | Gold | Unshielded | Polyamide (PA) Nylon Glass Filled | Phosphor Bronze | Solder | Solder Retention | 6p6c (RJ11 RJ12 RJ14 RJ25) | |
Molex | Jack | Surface Mount | 1 | Cat3 | 30 Áin | 0.76 Ám | -40 °C | 70 °C | Down | Does Not Contain LED | 1 | 90 ° | Gold | Unshielded | Polyamide (PA) Nylon Glass Filled | Phosphor Bronze | Solder | Solder Retention | 8p8c (RJ45 Ethernet) | |
Molex |
