PC817X4 Series
Manufacturer: SHARP/Socle Technology
Beta
⌘K

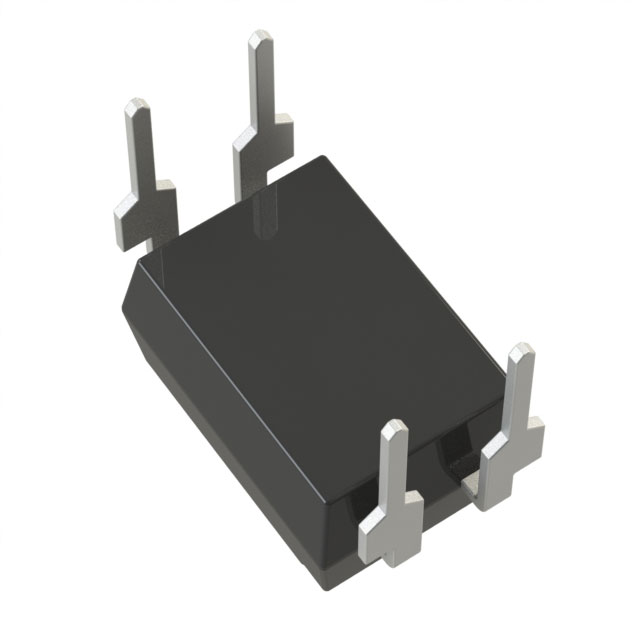

OPTOISOLATOR 5KV TRANS DIP
| Part | Package Width | Package Name | Package Length | Number of Channels | Output Type | Voltage - Forward (Vf) (Typ) | Input Type | Current - Output / Channel | Mounting Type | Operating Temperature (Max) | Operating Temperature (Min) | Current - DC Forward (If) (Max) | Voltage - Output (Max) | Vce Saturation (Max) | Fall Time (Typ) | Rise Time (Typ) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SHARP/Socle Technology | 7.62 mm | 4-DIP | 0.3 in | 1 | Transistor | 1.2 V | DC | 50 mA | Through Hole | 100 °C | -30 °C | 50 mA | 80 V | 200 mV | 3 µs | 4 µs |
