HMR2300 Series
Manufacturer: Honeywell Aerospace
Beta
⌘K
MAGNETOMETER RS485 W/CASE
| Part | Interface | Type | For Measuring | Measuring Range | Axis [z] | Axis [y] | Axis [x] | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Resolution | Supplied Contents | Contents | Sensor Type | Sensing Range [Max] | Sensing Range [Min] | Voltage - Supply [Min] | Voltage - Supply [Max] | Embedded | Sensitivity | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

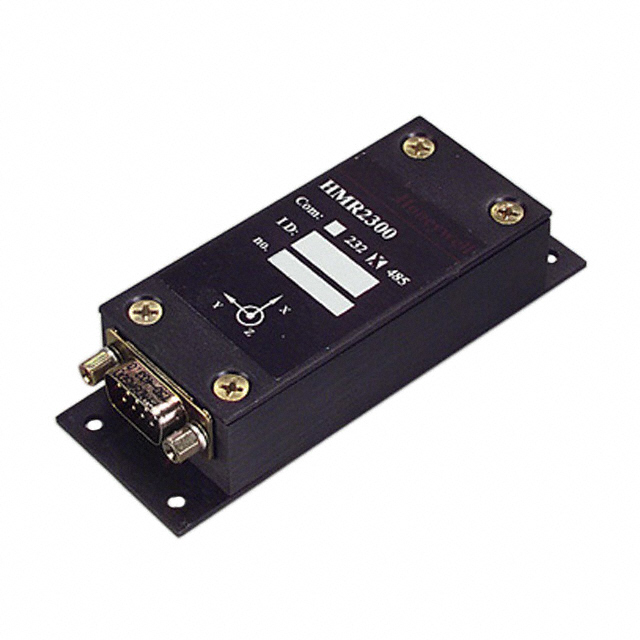

 Honeywell Aerospace | RS-485 | Digital Magnetometer | Strength Direction of Magnetic Field | 2 Gauss | Z | Y | X | Module with Case | 85 °C | -40 C | 67 µGauss | ||||||||||

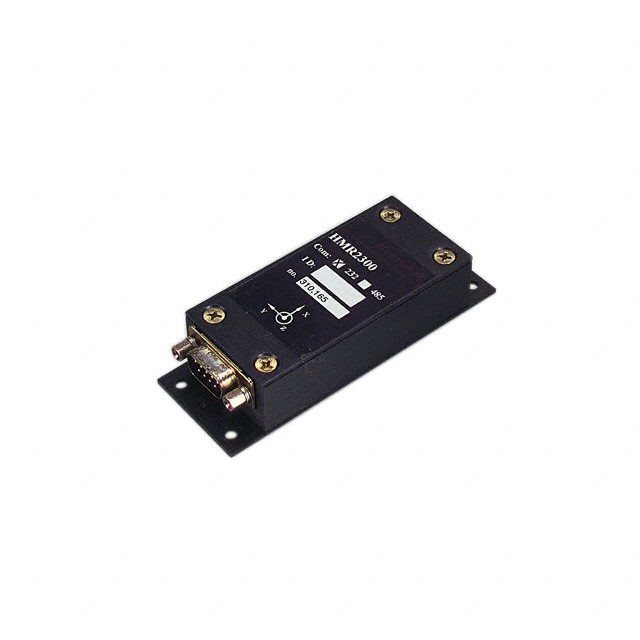

 Honeywell Aerospace | RS-232 | Digital Magnetometer | Strength Direction of Magnetic Field | 2 Gauss | Z | Y | X | Module with Case | 85 °C | -40 C | 67 µGauss | ||||||||||

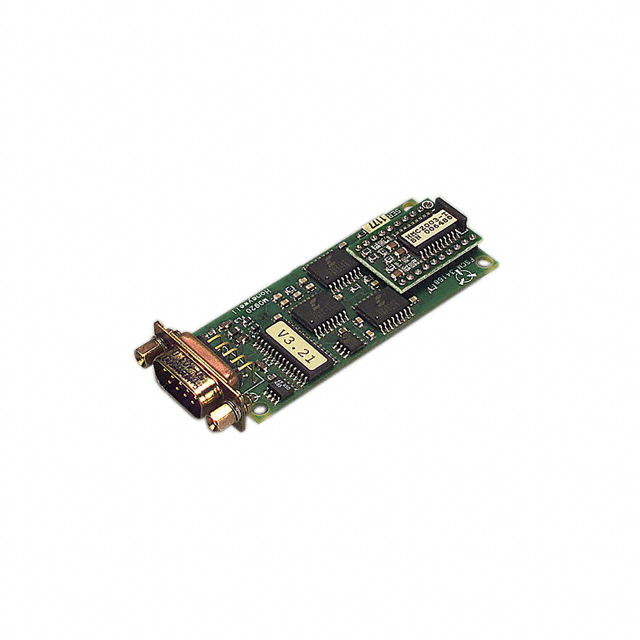

 Honeywell Aerospace | RS-485 | Digital Magnetometer | Strength Direction of Magnetic Field | 2 Gauss | Z | Y | X | Module (No Case) | 85 °C | -40 C | 67 µGauss | ||||||||||
 Honeywell Aerospace | RS-485 | Board(s) Cable(s) Power Supply | Board(s) Cable(s) Power Supply | Magnetic Magnetometer | 2 g | -2 g | 6.5 VDC | 15 V | 67 microgauss | HMR2300 |
