FJ9SCST Series

Manufacturer: UNC Group

Catalog

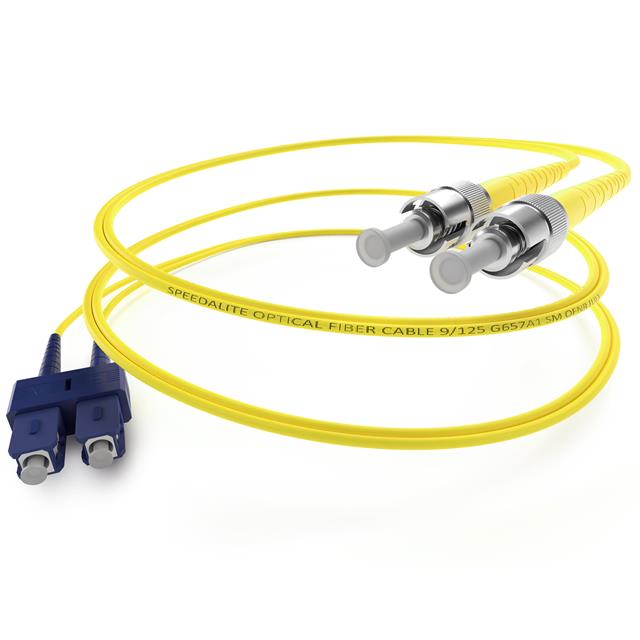

SINGLEMODE SC TO ST FIBER 30M

Part	2nd Connector	Bend Radius [radius]	Color - Cable	Color - Connectors	Cable Diameter [diameter]	Cable Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	1st Connector	Return Loss	Features	Fiber Type	Cable Type	Type	Insertion Loss	Jacket (Insulation) Material	Ratings	Length - Overall [x]	Length - Overall	Length - Overall [x]
UNC Group FJ9SCST-30M	ST (2)	10 mm	Yellow	Blue Yellow	2 mm	0.08 in	-20 C	60 °C	SC Duplex	55 dB	Dust Cap Riser Zipcord	9/125	Twin Zip Bend Insensitive Fiber (BIF)	Duplex OS2 Singlemode	0.2 dB	Poly-Vinyl Chloride (PVC)	OFNR	98.4 ft	30 m
UNC Group FJ9SCST-12M	ST (2)	10 mm	Yellow	Blue Yellow	2 mm	0.08 in	-20 C	60 °C	SC Duplex	55 dB	Dust Cap Riser Zipcord	9/125	Twin Zip Bend Insensitive Fiber (BIF)	Duplex OS2 Singlemode	0.2 dB	Poly-Vinyl Chloride (PVC)	OFNR	39.4 ft		12 m
UNC Group FJ9SCST-07M	ST (2)	10 mm	Yellow	Blue Yellow	2 mm	0.08 in	-20 C	60 °C	SC Duplex	55 dB	Dust Cap Riser Zipcord	9/125	Twin Zip Bend Insensitive Fiber (BIF)	Duplex OS2 Singlemode	0.2 dB	Poly-Vinyl Chloride (PVC)	OFNR	23 ft		7 m
UNC Group FJ9SCST-08M	ST (2)	10 mm	Yellow	Blue Yellow	2 mm	0.08 in	-20 C	60 °C	SC Duplex	55 dB	Dust Cap Riser Zipcord	9/125	Twin Zip Bend Insensitive Fiber (BIF)	Duplex OS2 Singlemode	0.2 dB	Poly-Vinyl Chloride (PVC)	OFNR	26.2 ft		8 m
UNC Group FJ9SCST-20M	ST (2)	10 mm	Yellow	Blue Yellow	2 mm	0.08 in	-20 C	60 °C	SC Duplex	55 dB	Dust Cap Riser Zipcord	9/125	Twin Zip Bend Insensitive Fiber (BIF)	Duplex OS2 Singlemode	0.2 dB	Poly-Vinyl Chloride (PVC)	OFNR	65.6 ft		20 m
UNC Group FJ9SCST-04M	ST (2)	10 mm	Yellow	Blue Yellow	2 mm	0.08 in	-20 C	60 °C	SC Duplex	55 dB	Dust Cap Riser Zipcord	9/125	Twin Zip Bend Insensitive Fiber (BIF)	Duplex OS2 Singlemode	0.2 dB	Poly-Vinyl Chloride (PVC)	OFNR	13.1 '		4 m
UNC Group FJ9SCST-15M	ST (2)	10 mm	Yellow	Blue Yellow	2 mm	0.08 in	-20 C	60 °C	SC Duplex	55 dB	Dust Cap Riser Zipcord	9/125	Twin Zip Bend Insensitive Fiber (BIF)	Duplex OS2 Singlemode	0.2 dB	Poly-Vinyl Chloride (PVC)	OFNR	49.2 '		15 m
UNC Group FJ9SCST-25M	ST (2)	10 mm	Yellow	Blue Yellow	2 mm	0.08 in	-20 C	60 °C	SC Duplex	55 dB	Dust Cap Riser Zipcord	9/125	Twin Zip Bend Insensitive Fiber (BIF)	Duplex OS2 Singlemode	0.2 dB	Poly-Vinyl Chloride (PVC)	OFNR	82 ft		25 m
