940-99 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

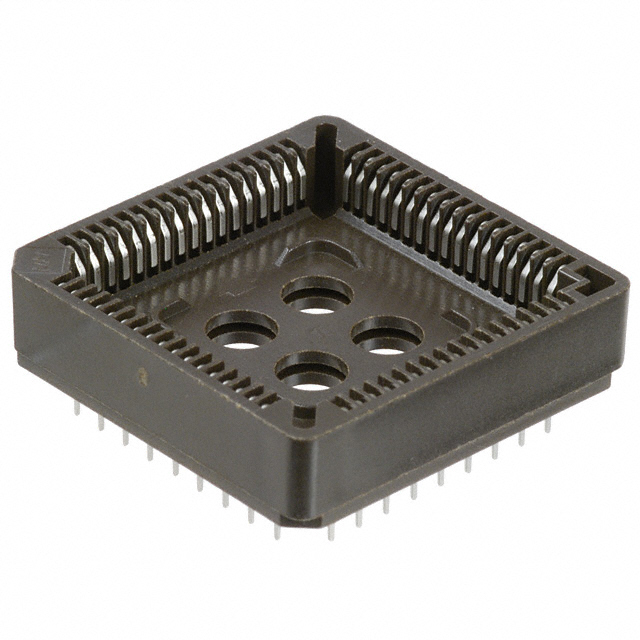

CONN SOCKET PLCC 68POS TIN-LEAD
| Part | Current Rating (Amps) | Termination Post Length | Termination Post Length | Contact Resistance | Material Flammability Rating | Pitch - Post | Pitch - Post | Type | Features | Contact Finish - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Mounting Type | Contact Material - Mating | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Termination | Housing Material | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Contact Material - Post | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions or Pins (Grid) [y] | Number of Positions or Pins (Grid) | Number of Positions or Pins (Grid) [x] | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 1 A | 3.3 mm | 0.13 in | 30 mOhm | UL94 V-0 | 0.1 in | 2.54 mm | PLCC | Closed Frame | Tin-Lead | 200 µin | 5.08 µm | Through Hole | Beryllium Copper | 4 | 17 | 68 | 100 çin | 2.54 çm | Solder | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Tin-Lead | 0.1 " | 2.54 mm | Brass Alloy | -55 C | 125 °C | ||||||
 Mill-Max Manufacturing Corp. | 1 A | 30 mOhm | UL94 V-0 | 0.05 in | 1.27 mm | PLCC | Closed Frame | Tin-Lead | 200 µin | 5.08 µm | Surface Mount | Beryllium Copper | 100 çin | 2.54 çm | Solder | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Tin-Lead | 0.05 in | 1.27 mm | Brass Alloy | -55 C | 125 °C | |||||||||||
 Mill-Max Manufacturing Corp. | 1 A | 30 mOhm | UL94 V-0 | 0.05 in | 1.27 mm | PLCC | Closed Frame | Tin-Lead | 200 µin | 5.08 µm | Surface Mount | Beryllium Copper | 100 çin | 2.54 çm | Solder | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Tin-Lead | 0.05 in | 1.27 mm | Brass Alloy | -55 C | 125 °C | 11 | 44 | 4 | ||||||||
 Mill-Max Manufacturing Corp. | 1 A | 3.3 mm | 0.13 in | 30 mOhm | UL94 V-0 | 0.1 in | 2.54 mm | PLCC | Closed Frame | Tin-Lead | 200 µin | 5.08 µm | Through Hole | Beryllium Copper | 100 çin | 2.54 çm | Solder | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Tin-Lead | 0.1 " | 2.54 mm | Brass Alloy | -55 C | 125 °C | 20 | 5 | 4 | ||||||
 Mill-Max Manufacturing Corp. | 1 A | 3.3 mm | 0.13 in | 30 mOhm | UL94 V-0 | 0.1 in | 2.54 mm | PLCC | Closed Frame | Tin-Lead | 200 µin | 5.08 µm | Through Hole | Beryllium Copper | 100 çin | 2.54 çm | Solder | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Tin-Lead | 0.1 " | 2.54 mm | Brass Alloy | -55 C | 125 °C | |||||||||
 Mill-Max Manufacturing Corp. | 1 A | 30 mOhm | UL94 V-0 | 0.05 in | 1.27 mm | PLCC | Closed Frame | Tin-Lead | 200 µin | 5.08 µm | Surface Mount | Beryllium Copper | 100 çin | 2.54 çm | Solder | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Tin-Lead | 0.05 in | 1.27 mm | Brass Alloy | -55 C | 125 °C | 52 | 4 x 13 | |||||||||
 Mill-Max Manufacturing Corp. | 1 A | 3.3 mm | 0.13 in | 30 mOhm | UL94 V-0 | 0.1 in | 2.54 mm | PLCC | Closed Frame | Tin-Lead | 200 µin | 5.08 µm | Through Hole | Beryllium Copper | 100 çin | 2.54 çm | Solder | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Tin-Lead | 0.1 " | 2.54 mm | Brass Alloy | -55 C | 125 °C | 52 | 4 x 13 |
