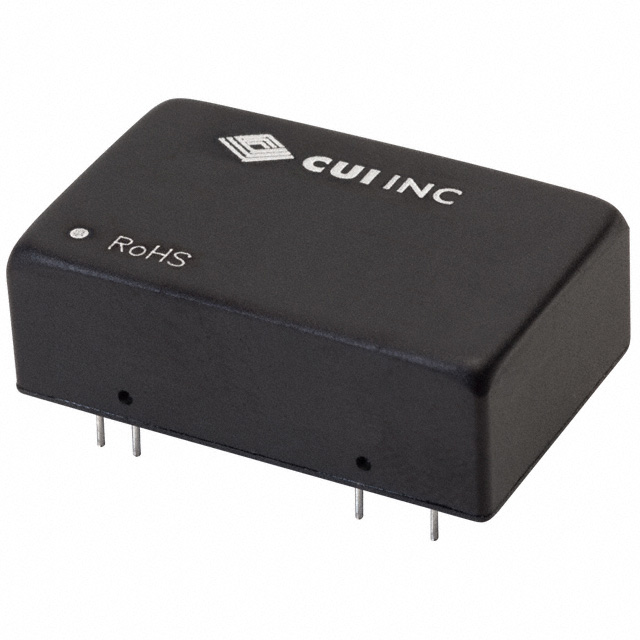

PUZ3-D5 Series

Manufacturer: CUI Inc.

Catalog

DC DC CONVERTER +/-12V 3W

Part	Current - Output (Max)	Package / Case	Type	Applications	Voltage - Input (Max) [Max]	Voltage - Isolation	Power (Watts)	Features	Approval Agency	Mounting Type	Standard Number	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Voltage - Output 2	Voltage - Output 1	Number of Outputs	Efficiency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Current - Output (Max)	Current - Output (Max)	Current - Output (Max) [Max]
CUI Inc. PUZ3-D5-D12-D	125 mA	24-DIP Module 8 Leads	Isolated Module	ITE (Commercial)	9 V	1.5 kV	3 W	OCP SCP	EN	Through Hole	55024 55032	-40 C	105 ░C	4.5 V	-12 V	12 V	2	76 %	1.26 in	0.79 in	10.8 mm	20 mm	32 mm	0.43 in
CUI Inc. PUZ3-D5-D15-D		24-DIP Module 8 Leads	Isolated Module	ITE (Commercial)	9 V	1.5 kV	3 W	OCP SCP	EN	Through Hole	55024 55032	-40 C	105 ░C	4.5 V	-15 V	15 V	2	76 %	1.26 in	0.79 in	10.8 mm	20 mm	32 mm	0.43 in	100 mA	100 mA
CUI Inc. PUZ3-D5-S15-D		24-DIP Module 8 Leads	Isolated Module	ITE (Commercial)	9 V	1.5 kV	3 W	OCP SCP	EN	Through Hole	55024 55032	-40 C	105 ░C	4.5 V		15 V	1	76 %	1.26 in	0.79 in	10.8 mm	20 mm	32 mm	0.43 in			200 mA
CUI Inc. PUZ3-D5-S5-D		24-DIP Module 8 Leads	Isolated Module	ITE (Commercial)	9 V	1.5 kV	3 W	OCP SCP	EN	Through Hole	55024 55032	-40 C	105 ░C	4.5 V		5 V	1		1.26 in	0.79 in	10.8 mm	20 mm	32 mm	0.43 in			600 mA
