HFW8S Series

Catalog

CONN FPC VERT 8POS 1MM SMD

Part	Housing Color	Mating Cycles	Height Above Board [z]	Height Above Board [z]	Mounting Type	Pitch	Pitch	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Voltage Rating	Flat Flex Type	Contact Finish	Number of Positions	Termination	Connector/Contact Type	Material Flammability Rating	FFC, FCB Thickness	Cable End Type	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]
Amphenol ICC (FCI) HFW8S-2STAE1LF	Black	30	0.209 in	5.3 mm	Surface Mount	1 mm	0.039 in	Phosphor Bronze	-55 C	85 °C	Glass Filled Nylon 6T Polyamide (PA6T)	100 V	FPC	Gold	8	Solder	Contacts Vertical - 1 Sided	UL94 V-0	0.3 mm	Tapered
Amphenol ICC (FCI) HFW8S-2STE9LF	Black		0.209 in	5.3 mm	Surface Mount	1 mm	0.039 in	Phosphor Bronze	-55 C	85 °C	Glass Filled Nylon 6T Polyamide (PA6T)	100 V	FFC FPC	Tin	8	Solder	Contacts Vertical - 1 Sided	UL94 V-0		Straight Tapered	0.3 mm	0.33 mm

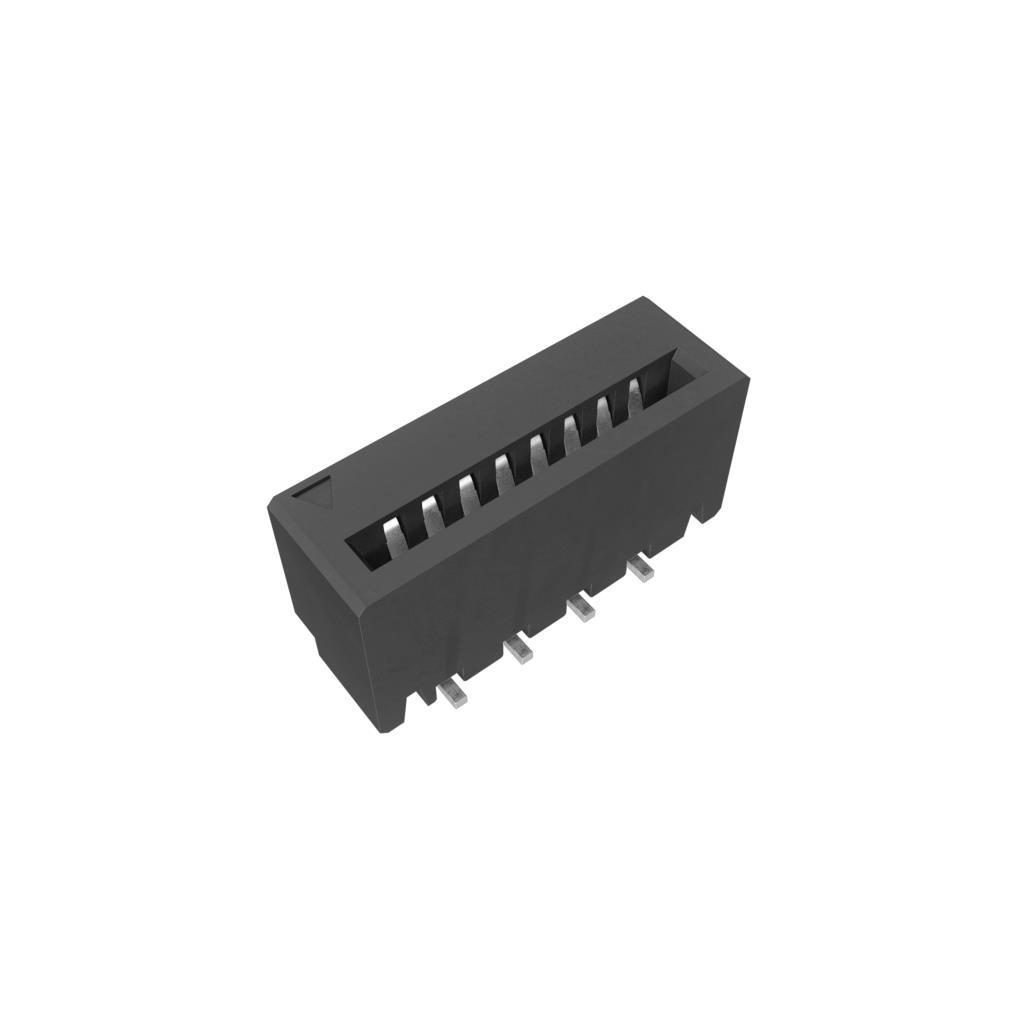

Amphenol ICC (FCI) HFW8S-2STE1HLF	Black	30	0.209 in	5.3 mm	Surface Mount	1 mm	0.039 in	Phosphor Bronze	-55 C	85 °C	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	100 V	FFC FPC	Tin	8	Solder	Contacts Vertical - 1 Sided	UL94 V-0		Straight Tapered	0.3 mm	0.33 mm

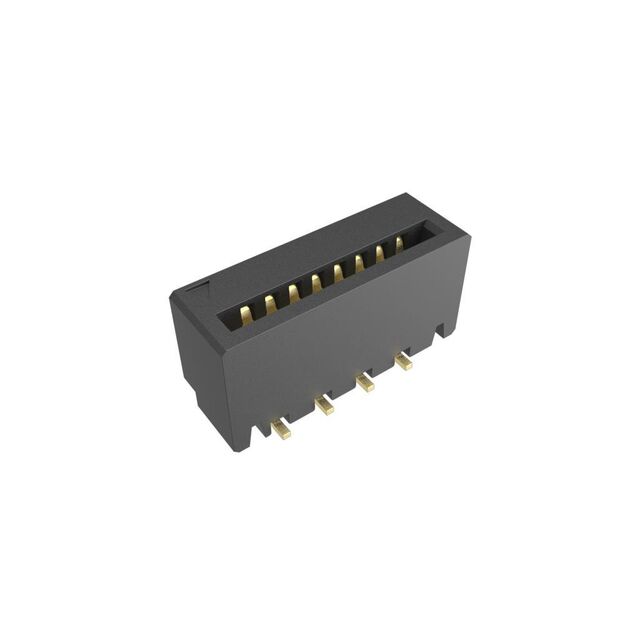

Amphenol ICC (FCI) HFW8S-2STAE1HLF	Black	10	0.209 in	5.3 mm	Surface Mount	1 mm	0.039 in	Phosphor Bronze	-55 C	85 °C	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	100 V	FFC FPC	Gold	8	Solder	Contacts Vertical - 1 Sided	UL94 V-0	0.3 mm	Straight Tapered
