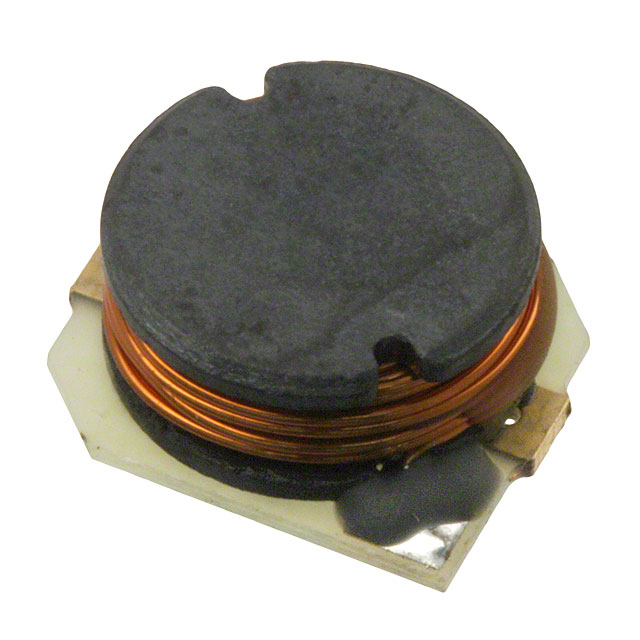

SDR1105 Series

Catalog

INDUCTOR,FERRITE,18UH,20+% TOL,20-% TOL,4439-CASE ROHS COMPLIANT: YES

Part	Material - Core	DC Resistance (DCR)	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Inductance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Current - Saturation (Isat)	Current Rating (Amps)	Inductance Frequency - Test	Tolerance	Type	Mounting Type	Shielding	DC Resistance (DCR) [Max]	Ratings
Bourns Inc. SDR1105-180ML	Ferrite	70 mOhm	125 °C	-40 C	11.1 mm	0.394 in	0.437 in	10 mm	Nonstandard	18 µH	0.197 in	5 mm	7 A	3.3 A	1 kHz	20 %	Drum Core Wirewound	Surface Mount	Unshielded
Bourns Inc. SDR1105-470KL	Ferrite		125 °C	-40 C	11.1 mm	0.394 in	0.437 in	10 mm	Nonstandard	47 µH	0.197 in	5 mm	4 A	2.2 A	1 kHz	10 %	Drum Core Wirewound	Surface Mount	Unshielded	170 mOhm	AEC-Q200
Bourns Inc. SDR1105-120ML	Ferrite		125 °C	-40 C	11.1 mm	0.394 in	0.437 in	10 mm	Nonstandard	12 µH	0.197 in	5 mm	8 A	3.8 A	1 kHz	20 %	Drum Core Wirewound	Surface Mount	Unshielded	48 mOhm
Bourns Inc. SDR1105-330KL	Ferrite	100 mOhm	125 °C	-40 C	11.1 mm	0.394 in	0.437 in	10 mm	Nonstandard	33 µH	0.197 in	5 mm	5 A	2.6 A	1 kHz	10 %	Drum Core Wirewound	Surface Mount	Unshielded		AEC-Q200
Bourns Inc. SDR1105-270ML	Ferrite		125 °C	-40 C	11.1 mm	0.394 in	0.437 in	10 mm	Nonstandard	27 µH	0.197 in	5 mm	5 A	2.8 A	1 kHz	20 %	Drum Core Wirewound	Surface Mount	Unshielded	90 mOhm	AEC-Q200
Bourns Inc. SDR1105-101KL	Ferrite		125 °C	-40 C	11.1 mm	0.394 in	0.437 in	10 mm	Nonstandard	100 µH	0.197 in	5 mm	2.8 A	1.5 A	1 kHz	10 %	Drum Core Wirewound	Surface Mount	Unshielded
Bourns Inc. SDR1105-150ML	Ferrite		125 °C	-40 C	11.1 mm	0.394 in	0.437 in	10 mm	Nonstandard	15 µH	0.197 in	5 mm	8 A	3.5 A	1 kHz	20 %	Drum Core Wirewound	Surface Mount	Unshielded
Bourns Inc. SDR1105-151KL	Ferrite		125 °C	-40 C	11.1 mm	0.394 in	0.437 in	10 mm	Nonstandard	150 µH	0.197 in	5 mm	2.3 A	1.2 A	1 kHz	10 %	Drum Core Wirewound	Surface Mount	Unshielded	500 mOhm
