1172A Series

Catalog

4 #26 PE FBRD PVC

Part	Shield Material	Shield Coverage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Cable Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Usage	Voltage	Jacket (Insulation) Material	Length	Length	Number of Conductors	Shield Type	Conductor Insulation	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge
Belden Inc. 1172A G8M1000	Copper Tinned	95 %	0.031 in	0.787 mm	Yellow	Microphone	Drain Wire	-20 ░C	60 °C	Audio	100 V	Poly-Vinyl Chloride (PVC)	304.8 m	1000 ft	4	Braid	Polyethylene (PE)	Copper Bare	0.19 in	4.83 mm	26 AWG
Belden Inc. 1172A G8C1000	Copper Tinned	95 %	0.031 in	0.787 mm	Purple	Microphone	Drain Wire	-20 ░C	60 °C	Audio	100 V	Poly-Vinyl Chloride (PVC)	304.8 m	1000 ft	4	Braid	Polyethylene (PE)	Copper Bare	0.19 in	4.83 mm	26 AWG

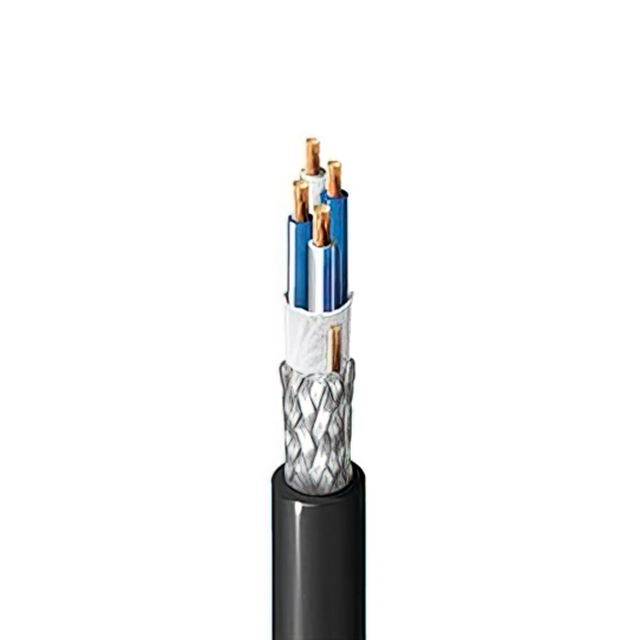

Belden Inc. 1172A U901000	Copper Tinned	95 %	0.031 in	0.787 mm	Gray	Microphone	Drain Wire	-20 ░C	60 °C	Audio	100 V	Poly-Vinyl Chloride (PVC)	304.8 m	1000 ft	4	Braid	Polyethylene (PE)	Copper Bare	0.19 in	4.83 mm	26 AWG

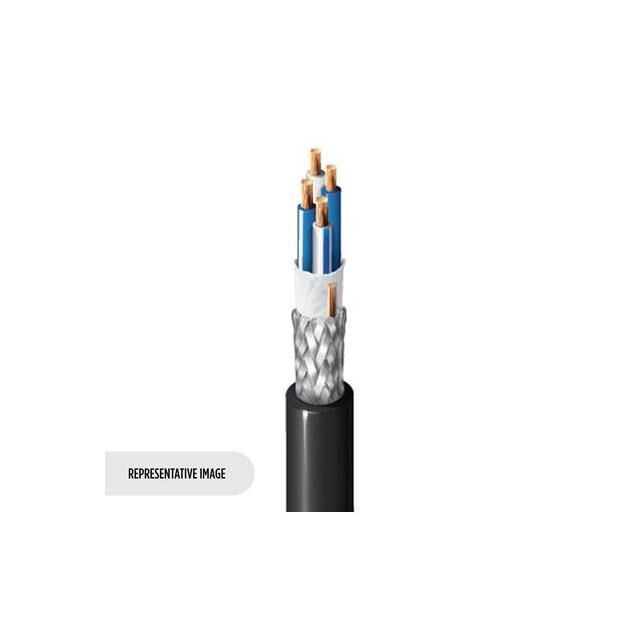

Belden Inc. 1172A G7V1000	Copper Tinned	95 %	0.031 in	0.787 mm	Red	Microphone	Drain Wire	-20 ░C	60 °C	Audio	100 V	Poly-Vinyl Chloride (PVC)	304.8 m	1000 ft	4	Braid	Polyethylene (PE)	Copper Bare	0.19 in	4.83 mm	26 AWG
Belden Inc. 1172A G7X1000	Copper Tinned	95 %	0.031 in	0.787 mm	Blue	Microphone	Drain Wire	-20 ░C	60 °C	Audio	100 V	Poly-Vinyl Chloride (PVC)	304.8 m	1000 ft	4	Braid	Polyethylene (PE)	Copper Bare	0.19 in	4.83 mm	26 AWG

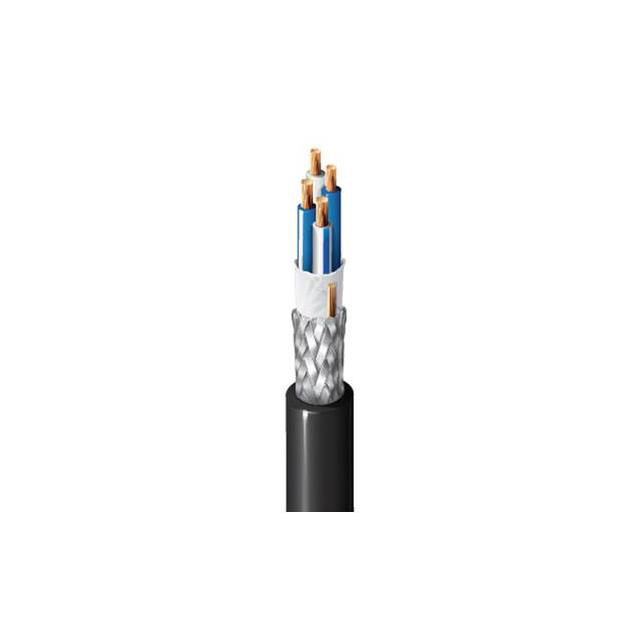

Belden Inc. 1172A B59N1000	Copper Tinned	95 %	0.031 in	0.787 mm	Black	Microphone	Drain Wire	-20 ░C	60 °C	Audio	100 V	Poly-Vinyl Chloride (PVC)	304.8 m	1000 ft	4	Braid	Polyethylene (PE)	Copper Bare	0.19 in	4.83 mm	26 AWG
