76064 Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

INDUSTRIAL PRESSURE SENSORS PRESSURE SWITCH

Part	Maximum Pressure	Maximum Pressure	Pressure Type	Port Size	Port Size	Port Size	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Operating Pressure [Max]	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Min]	Output Type	Package / Case	Port Style	Operating Pressure	Operating Pressure	Applications
Honeywell Sensing and Productivity Solutions 76064-00000660-05	3447.38 kPa	500 PSI	Switch	0.125 in	Male NPT	3.18 mm	121 C	-40 C	Screw Terminal	90 PSI	51 PSI	620.53 kPa	351.63 kPa	SPST-NC	Cylinder Threaded	Threaded
Honeywell Sensing and Productivity Solutions 76064-00000650-01	3447.38 kPa	500 PSI	Switch	0.125 in	Male NPT	3.18 mm	121 C	-40 C	Screw Terminal	90 PSI	51 PSI	620.53 kPa	351.63 kPa	SPST-NC	Cylinder Threaded	Threaded
Honeywell Sensing and Productivity Solutions 76064-B00000600-01	3447.38 kPa	500 PSI	Switch	0.125 in	Male NPT	3.18 mm	121 C	-40 C	Screw Terminal					SPST-NC	Cylinder Threaded	Threaded	413.69 kPa	60 PSI	Industrial Automation
Honeywell Sensing and Productivity Solutions 76064-00000660-01	3447.38 kPa	500 PSI	Switch	0.125 in	Male NPT	3.18 mm	121 C	-40 C	Screw Terminal	90 PSI	51 PSI	620.53 kPa	351.63 kPa	SPST-NC	Cylinder Threaded	Threaded
Honeywell Sensing and Productivity Solutions 76064-B00000750-14	3447.38 kPa	500 PSI	Switch	0.125 in	Male NPT	3.18 mm	121 C	-40 C	Screw Terminal	90 PSI	51 PSI	620.53 kPa	351.63 kPa	SPST-NC	Cylinder Threaded	Threaded
Honeywell Sensing and Productivity Solutions 76064-00000750-01	3447.38 kPa	500 PSI	Switch	0.125 in	Male NPT	3.18 mm	121 C	-40 C	Screw Terminal	90 PSI	51 PSI	620.53 kPa	351.63 kPa	SPST-NC	Cylinder Threaded	Threaded

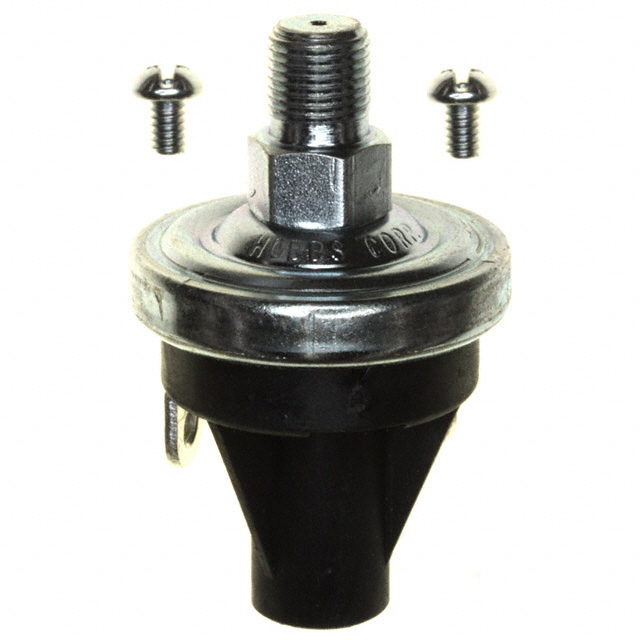

Honeywell Sensing and Productivity Solutions 76064-00000600-01	3447.38 kPa	500 PSI	Switch	0.125 in	Male NPT	3.18 mm	121 C	-40 C	Screw Terminal					SPST-NC	Cylinder	Threaded	413.69 kPa	60 PSI	Industrial Automation
