260 Series

Catalog

DIN RAIL MOUNT TERMINAL BLOCK, 4 POSITIONS, 28 AWG, 16 AWG, 1.5 MM², CLAMP, 18 A

Part	Length	Length	Material Flammability Rating	Height (Max) [z]	Height (Max) [z]	Material - Insulation	Stripping Length [Min]	Stripping Length [Max]	Termination Style	Features	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Type	Current - IEC	Number of Levels	Mounting Type	Number of Positions	Housing Color	Terminal - Width [y]	Voltage - IEC	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Color	For Use With/Related Products

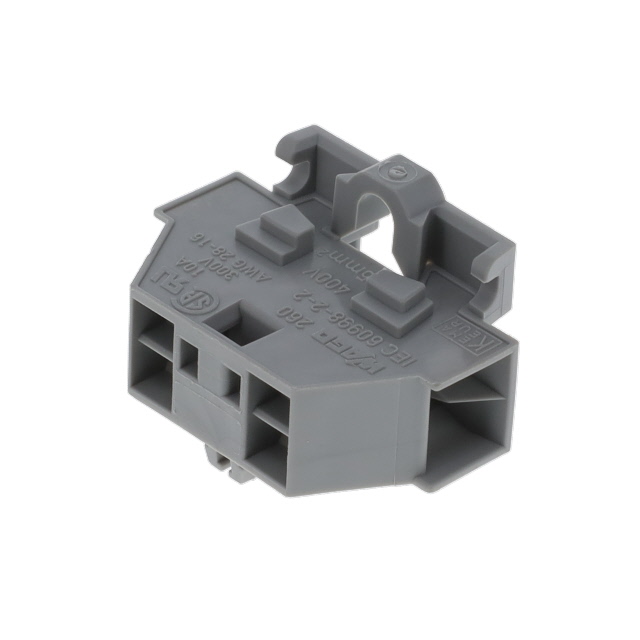

WAGO Corporation 260-331	17 mm	0.669 in	UL94 V-0	0.984 in	24.99 mm	Nylon 6/6 Polyamide (PA66)	8 mm	9 mm	Push In Spring	Flange	28 AWG	16 AWG	Middle	18 A	1	Direct Mount	4	Gray	8 mm	400 V	0.08 mm²	1.5 mm²

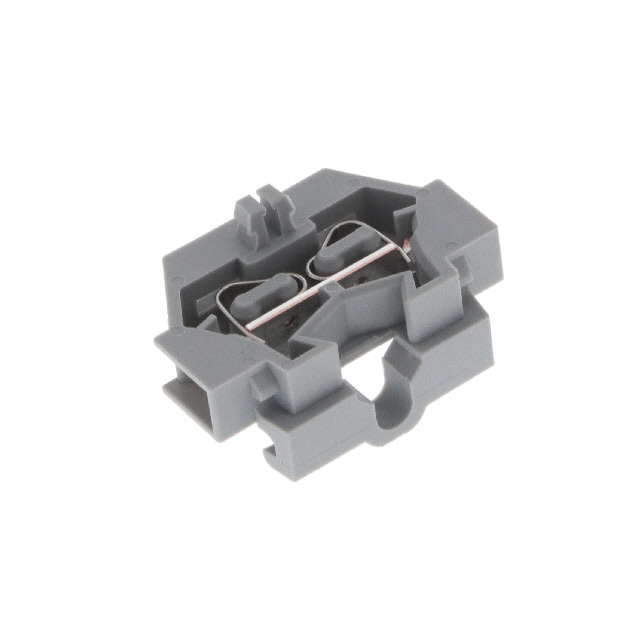

WAGO Corporation 260-301	24.99 mm	0.984 in	UL94 V-0	0.669 in	17 mm	Nylon 6/6 Polyamide (PA66)	8 mm	9 mm	Push In Spring	Flange	28 AWG	16 AWG	Middle	18 A	1	Direct Mount	2	Gray	5 mm	400 V	0.08 mm²	1.5 mm²

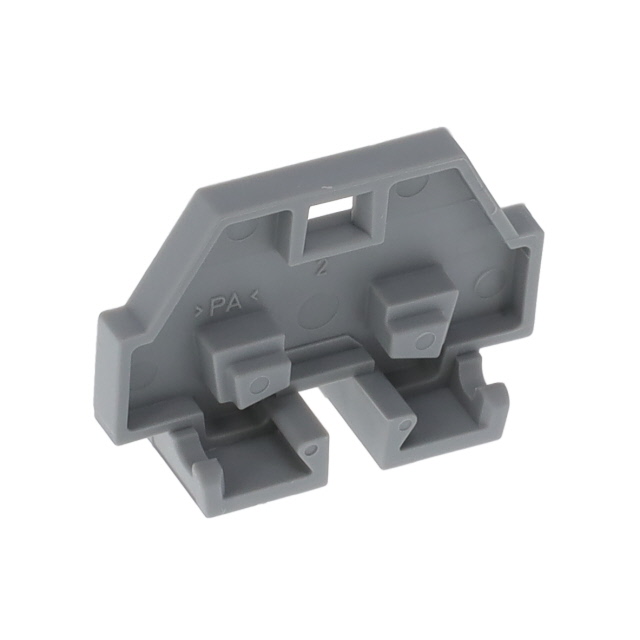

WAGO Corporation 260-361													End Plate										Gray	Terminal Blocks
