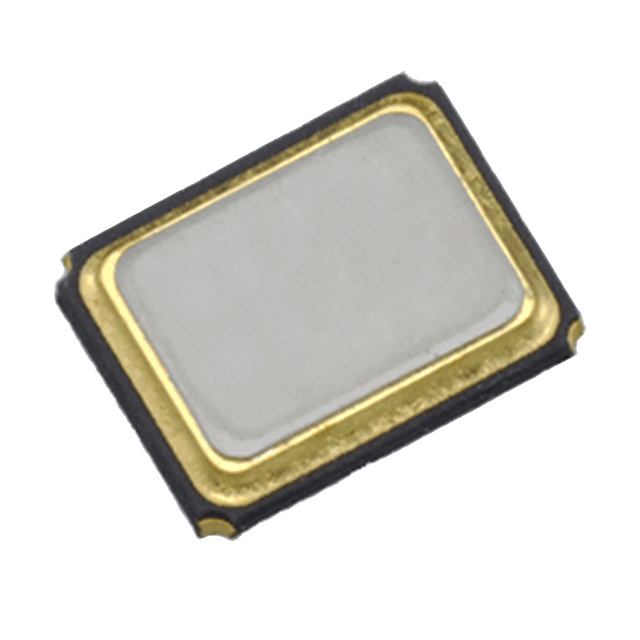

FA-128 Series

Manufacturer: EPSON

Catalog

Catalog

FA-128 24.0000MF10V-W: XTL MHZ 1

...

Part	ESR (Equivalent Series Resistance)	Mounting Type	Frequency Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max)	Frequency Stability	Frequency	Type	Operating Mode	Load Capacitance	Package / Case	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package [custom]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]
EPSON FA-128 24.0000MF10V-W	80 Ohm	Surface Mount	10 ppm	0.02 in	0.5 mm	10 ppm	24 MHz	MHz Crystal	Fundamental	12 pF	4-SMD No Lead	1.6	2	4-SMD	1.6 mm	0.079 in	0.063 "	2 mm	-20 ░C	70 °C
EPSON FA-128 26.0000MF10Z-W3	60 Ohms	Surface Mount	10 ppm	0.02 in	0.5 mm	10 ppm	26 MHz	MHz Crystal	Fundamental	12 pF	4-SMD No Lead	1.6	2	4-SMD	1.6 mm	0.079 in	0.063 "	2 mm
EPSON FA-128 27.1200ME15P-AJ3	60 Ohms	Surface Mount	15 ppm	0.02 in	0.5 mm	15 ppm	27.12 MHz	MHz Crystal	Fundamental	8 pF	4-SMD No Lead	1.6	2	4-SMD	1.6 mm	0.079 in	0.063 "	2 mm	-20 ░C	85 °C
EPSON FA-128 25.0000M-W	80 Ohm	Surface Mount	10 ppm	0.02 in	0.5 mm	15 ppm	25 MHz	MHz Crystal	Fundamental	12 pF	4-SMD No Lead	1.6	2	4-SMD	1.6 mm	0.079 in	0.063 "	2 mm	-10 °C	90 °C
EPSON FA-128 24.576M-N0AAAAB50REB	50 Ohms 80 Ohm	Surface Mount	10 ppm	0.02 in	0.5 mm	10 ppm	24.576 MHz	MHz Crystal	Fundamental	5 pF 20 pF	4-SMD No Lead	1.6	2	4-SMD	1.6 mm	0.079 in	0.063 "	2 mm	-20 ░C	70 °C
EPSON FA-128 25.00M-80AANNG80RE0	80 Ohm	Surface Mount	10 ppm	0.02 in	0.5 mm	20 ppm	25 MHz	MHz Crystal	Fundamental	8 pF	4-SMD No Lead	1.6	2	4-SMD	1.6 mm	0.079 in	0.063 "	2 mm	-40 C	85 °C
EPSON FA-128 24.0000MF10Z-K	80 Ohm	Surface Mount	10 ppm	0.02 in	0.5 mm	10 ppm	24 MHz	MHz Crystal	Fundamental	10 pF	4-SMD No Lead	1.6	2	4-SMD	1.6 mm	0.079 in	0.063 "	2 mm
EPSON FA-128 26.0000MF10Y-W	60 Ohms	Surface Mount	10 ppm	0.02 in	0.5 mm	10 ppm	26 MHz	MHz Crystal	Fundamental	12 pF	4-SMD No Lead	1.6	2	4-SMD	1.6 mm	0.079 in	0.063 "	2 mm	-30 ░C	85 °C
EPSON FA-128 50.0000MF10Z-AG	60 Ohms	Surface Mount	10 ppm	0.02 in	0.5 mm	10 ppm	50 MHz	MHz Crystal	Fundamental	7 pF	4-SMD No Lead	1.6	2	4-SMD	1.6 mm	0.079 in	0.063 "	2 mm
EPSON FA-128 32.00M-60AAAAN60REB	60 Ohms	Surface Mount	10 ppm	0.02 in	0.5 mm	10 ppm	32 MHz	MHz Crystal	Fundamental	6 pF	4-SMD No Lead	1.6	2	4-SMD	1.6 mm	0.079 in	0.063 "	2 mm
