TH030 Series

Catalog

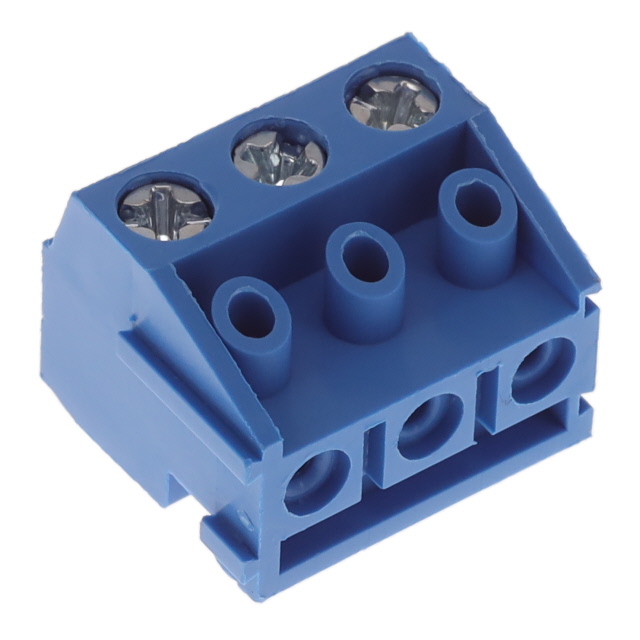

TH 5.0 - 3P BLUE, PHILLIPS SCREW

Part	Insulation Height	Insulation Height	Type	Color	Number of Levels	Mounting Type	Voltage - UL	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Material Flammability Rating	Housing Material	Voltage - IEC	Positions Per Level	Termination Style	Screw Size	Plug Wire Entry	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Features	Current - IEC	Torque - Screw	Torque - Screw	Wire Strip Length [Min]	Wire Strip Length [Max]	Pitch [x]	Pitch [x]
Amphenol Anytek TH0300600000G	0.433 in	11 mm	Plug for Unshrouded Header	Blue	1	Free Hanging (In-Line)	300 V	-40 °C	115 °C	Copper	0.34 mm²	1.5 mm²	UL94 V-0	Thermoplastic	300 V	3	Screw - Leaf Spring Wire Guard	M2.6	180° 90°	14 AWG	22 AWG	Interlocking (Side)	12 A	0.4 Nm	3.5 Lb-In	5 mm	6 mm	5 mm	0.197 in
