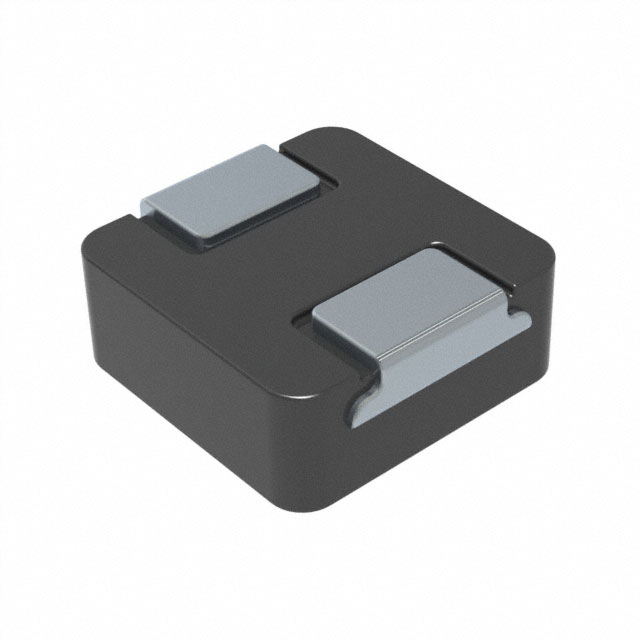

VCMT063T Series

Catalog

FIXED IND 4.7UH 6A 33.4MOHM SMD

Part	Shielding	Inductance Frequency - Test	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Material - Core	Mounting Type	DC Resistance (DCR) [Max]	Inductance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current - Saturation (Isat)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Tolerance	DC Resistance (DCR)
Delta Electronics/Cyntec VCMT063T-4R7MN5T	Shielded Unshielded	100 kHz	6 A	155 C	-55 C	Metal	Surface Mount	33.4 mOhm	4.7 ÁH	6.95 mm	0.26 in	6.6 mm	0.274 in	6 A	0.118 "	3 mm	Nonstandard	20 %
Delta Electronics/Cyntec VCMT063T-150MN5T	Shielded Unshielded	100 kHz	3.2 A	155 C	-55 C	Metal	Surface Mount		15 µH	6.95 mm	0.26 in	6.6 mm	0.274 in	2.8 A	0.118 "	3 mm	Nonstandard	20 %	110 mOhm
Delta Electronics/Cyntec VCMT063T-1R0MN5T	Shielded	100 kHz	13 A	155 C	-55 C	Metal	Surface Mount	7.8 mOhm	1 µH	6.95 mm	0.26 in	6.6 mm	0.274 in	12.5 A	0.118 "	3 mm	Nonstandard	20 %
Delta Electronics/Cyntec VCMT063T-6R8MN5T	Shielded Unshielded	100 kHz	5.5 Amps	155 C	-55 C	Metal	Surface Mount	46.8 mOhm	6.8 µH	6.95 mm	0.26 in	6.6 mm	0.274 in	4.5 A	0.118 "	3 mm	Nonstandard	20 %
Delta Electronics/Cyntec VCMT063T-2R2MN5T	Shielded Unshielded	100 kHz	9 A	155 C	-55 C	Metal	Surface Mount	16.5 mOhm	2.2 µH	6.95 mm	0.26 in	6.6 mm	0.274 in	8 A	0.118 "	3 mm	Nonstandard	20 %
Delta Electronics/Cyntec VCMT063T-100MN5T	Shielded Unshielded	100 kHz	4 A	155 C	-55 C	Metal	Surface Mount	70.5 mOhm	10 µH	6.95 mm	0.26 in	6.6 mm	0.274 in	3.5 A	0.118 "	3 mm	Nonstandard	20 %
Delta Electronics/Cyntec VCMT063T-1R5MN5T	Shielded Unshielded	100 kHz	10.5 A	155 C	-55 C	Metal	Surface Mount	12.5 mOhm	1.5 µH	6.95 mm	0.26 in	6.6 mm	0.274 in	9 A	0.118 "	3 mm	Nonstandard	20 %
Delta Electronics/Cyntec VCMT063T-3R3MN5T	Shielded Unshielded	100 kHz	7.5 A	155 C	-55 C	Metal	Surface Mount	26 mOhm	3.3 µH	6.95 mm	0.26 in	6.6 mm	0.274 in	7.5 A	0.118 "	3 mm	Nonstandard	20 %
