76022 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

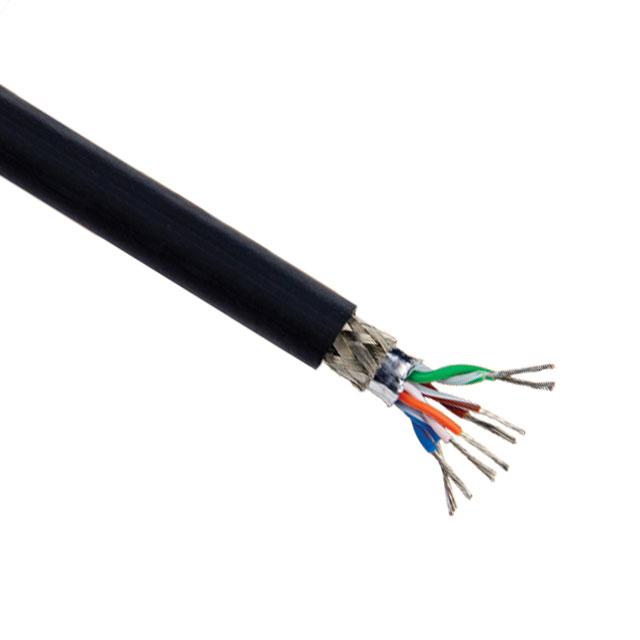

CABLE CAT5E 8COND 24AWG BLK 100'
| Part | Shield Coverage | Shield Material | Voltage | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Number of Conductors | Length | Length | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Wire Gauge | Ratings | Jacket Color | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Length [x] | Length [x] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Aluminum Copper Tinned | 300 VDC | Copper Bare | -50 °C | 75 ░C | 8 | 15.24 m 76.2 m 152.4 m | 50 ft 250 ft 500 ft | Polypropylene (PP) | 0.325 in | 8.26 mm | Biological Compatibility Drain Wire Rip Cord | 24 AWG | ISO 10993 | Black | Thermoplastic Elastomer (TPE) | 7 | 32 AWG | Braid Foil | 100 ft | 30.5 m | 0.035 in | 0.889 mm | Multi-Pair Cat5e |
ALPHA WIRE | 70 % 100 % | Aluminum Copper Tinned | 300 VDC | Copper Bare | -50 °C | 75 ░C | 8 | 304.8 m | 1000 ft | Polypropylene (PP) | 0.325 in | 8.26 mm | Biological Compatibility Drain Wire Rip Cord | 24 AWG | ISO 10993 | Black | Thermoplastic Elastomer (TPE) | 7 | 32 AWG | Braid Foil | 0.035 in | 0.889 mm | Multi-Pair Cat5e |
