ESDL2031 Series

Ultra Low Capacitance ESD Protection Diode for High Speed Data Line

Catalog

Ultra Low Capacitance ESD Protection Diode for High Speed Data Line

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current - Peak Pulse (10/1000µs)	Power Line Protection	Power - Peak Pulse	Package / Case	Package / Case	Supplier Device Package	Mounting Type	Voltage - Breakdown (Min) [Min]	Type	Voltage - Reverse Standoff (Typ)	Bidirectional Channels [custom]	Capacitance @ Frequency	Voltage - Clamping (Max) @ Ipp [Max]	Applications

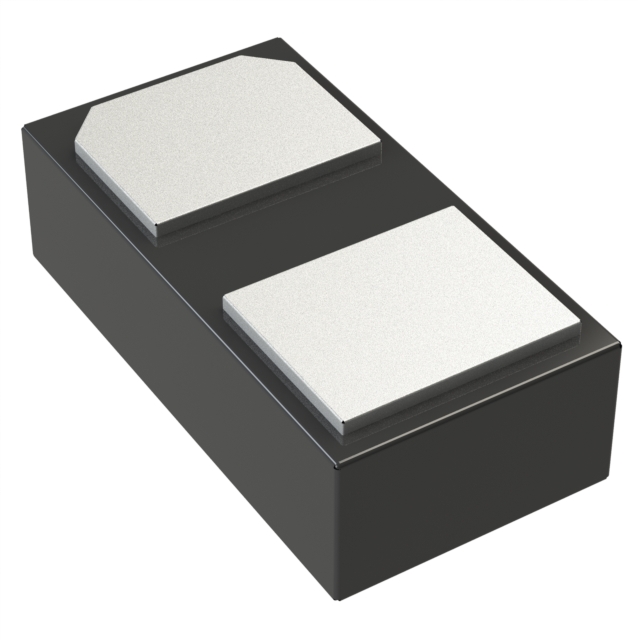

ON Semiconductor ESDL2031MX4T5G	125 ¯C	-55 °C	9.75 A		72 W	0603 Metric	0201	2-DFN (0.6x0.3)	Surface Mount	5.1 V	Zener	4 V	1	0.4 pF	8 V	HDMI USB

Catalog

Ultra Low Capacitance ESD Protection Diode for High Speed Data Line

Key Features

• Ultra Low Capacitance (0.40 pF Typ, I/O to GND)

• Protection for the Following IEC Standards:IEC 61000−4−2 (Level 4)

• Low ESD Clamping Voltage

• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHSCompliant

Description

The ESDL2031 ESD protection diodes are designed to protect high speed data lines from ESD. Ultra−low capacitance and low ESD clamping voltage make this device an ideal solution for protectingvoltage sensitive high speed data lines.
