PR20B03HB Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K

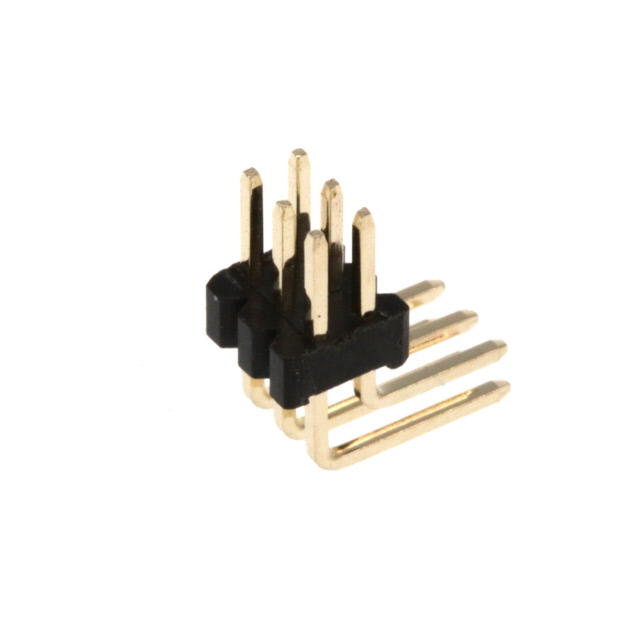

PIN HEADER, THR, DUAL ROW, 1.27
| Part | Insulation Material | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Contact Length - Post [custom] | Contact Length - Post | Fastening Type | Contact Shape | Row Spacing - Mating | Row Spacing - Mating | Number of Positions | Shrouding | Connector Type | Number of Positions Loaded | Contact Finish - Mating | Number of Rows [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Insulation Color | Mounting Type | Contact Length - Mating | Contact Length - Mating | Contact Material | Termination | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 METZ CONNECT USA Inc. | Polyethylene | 0.059 in | 1.5 mm | 1.27 mm | 0.05 in | 0.11 in | 2.79 mm | Push-Pull | Square | 0.05 in | 1.27 mm | 6 | Unshrouded | Header | All | Gold | 2 | -40 C | 105 ░C | Flash | Black | Right Angle Through Hole | 3 mm | 0.118 in | Copper Zinc | Solder | Male Pin |
