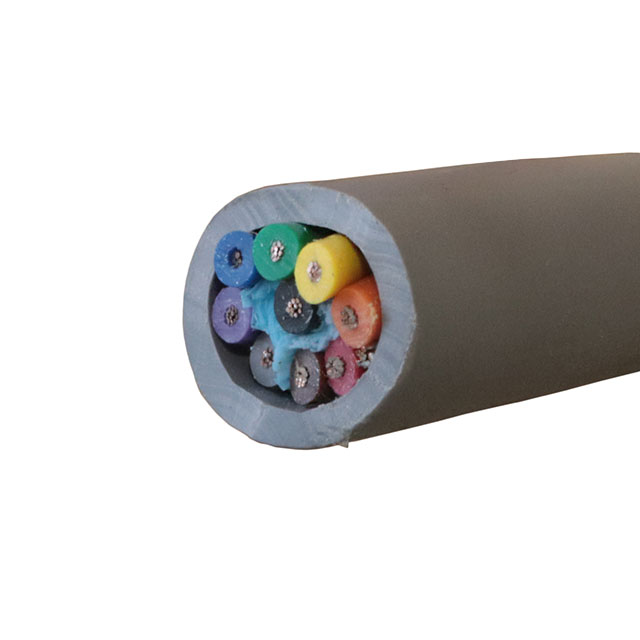

5420/9 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CBL 9COND 20AWG SHLD 1000=1000'
| Part | Shield Material | Shield Coverage | Ratings | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Jacket (Insulation) Material | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Usage | Cable Type | Features | Operating Temperature [Min] | Operating Temperature [Max] | Wire Gauge | Number of Conductors | Jacket Color | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length [x] | Length [x] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | ISO 10993 UL Style 2501 | Copper Tinned | 0.507 in | 12.88 mm | Foil | Poly-Vinyl Chloride (PVC) | 600 V | 28 AWG | 7 | Communication Control | Multi-Conductor | Biological Compatibility Drain Wire Rip Cord | -30 ░C | 105 ░C | 20 AWG | 9 | Slate | Poly-Vinyl Chloride (PVC) | 1.6 mm | 0.063 in | ||||
ALPHA WIRE | Aluminum | 100 % | ISO 10993 UL Style 2501 | Copper Tinned | 0.507 in | 12.88 mm | Foil | Poly-Vinyl Chloride (PVC) | 600 V | 28 AWG | 7 | Communication Control | Multi-Conductor | Biological Compatibility Drain Wire Rip Cord | -30 ░C | 105 ░C | 20 AWG | 9 | Slate | Poly-Vinyl Chloride (PVC) | 1.6 mm | 0.063 in | 100 ft | 30.5 m | ||
 ALPHA WIRE | Aluminum | 100 % | ISO 10993 UL Style 2501 | Copper Tinned | 0.507 in | 12.88 mm | Foil | Poly-Vinyl Chloride (PVC) | 600 V | 28 AWG | 7 | Communication Control | Multi-Conductor | Biological Compatibility Drain Wire Rip Cord | -30 ░C | 105 ░C | 20 AWG | 9 | Black | Poly-Vinyl Chloride (PVC) | 1.6 mm | 0.063 in | 304.8 m | 1000 ft | ||
ALPHA WIRE | Aluminum | 100 % | ISO 10993 UL Style 2501 | Copper Tinned | 0.507 in | 12.88 mm | Foil | Poly-Vinyl Chloride (PVC) | 600 V | 28 AWG | 7 | Communication Control | Multi-Conductor | Biological Compatibility Drain Wire Rip Cord | -30 ░C | 105 ░C | 20 AWG | 9 | Slate | Poly-Vinyl Chloride (PVC) | 1.6 mm | 0.063 in | 152.4 m | 500 ft | ||
ALPHA WIRE | Aluminum | 100 % | ISO 10993 UL Style 2501 | Copper Tinned | 0.507 in | 12.88 mm | Foil | Poly-Vinyl Chloride (PVC) | 600 V | 28 AWG | 7 | Communication Control | Multi-Conductor | Biological Compatibility Drain Wire Rip Cord | -30 ░C | 105 ░C | 20 AWG | 9 | Slate | Poly-Vinyl Chloride (PVC) | 1.6 mm | 0.063 in | 304.8 m | 1000 ft |
