SU9H Series

Manufacturer: KEMET

Catalog

COMMON MODE CHOKES / FILTERS 250V 0.5A 2MH

Part	Height (Max) [Max] [z]	Height (Max) [z]	Number of Lines	Voltage Rating - AC	Inductance @ Frequency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	DC Resistance (DCR) (Max)	Mounting Type	Package / Case	Filter Type	Current Rating (Max) [Max]	DC Resistance (DCR) (Max) [Max]
KEMET SU9H-05020	0.492 in	12.5 mm	2	250 V	1 kHz 2 mH	15.5 mm	17 mm	0.61 in	0.669 in	-25 °C	125 °C	1 Ohm	Through Hole	Vertical 4 PC Pin	Power Line	500 mA

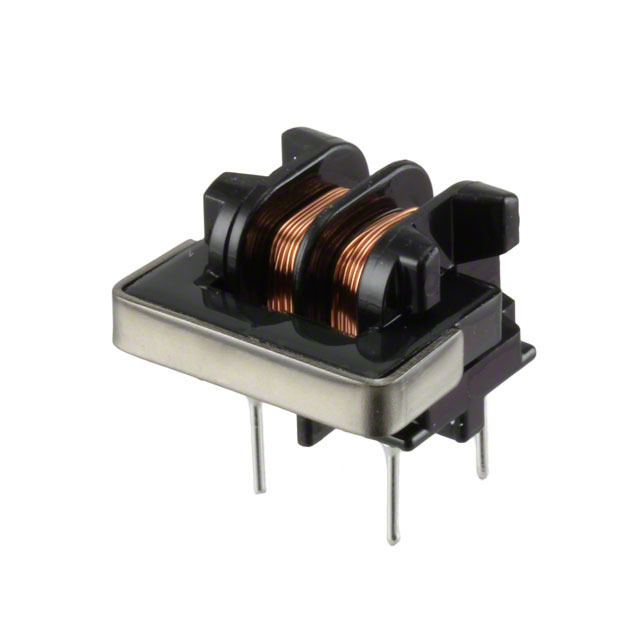

KEMET SU9H-07010	0.492 in	12.5 mm	2	250 V	1 mH	15.5 mm	17 mm	0.61 in	0.669 in	-25 °C	125 °C	600 mOhm	Through Hole	Vertical 4 PC Pin	Power Line	700 mA

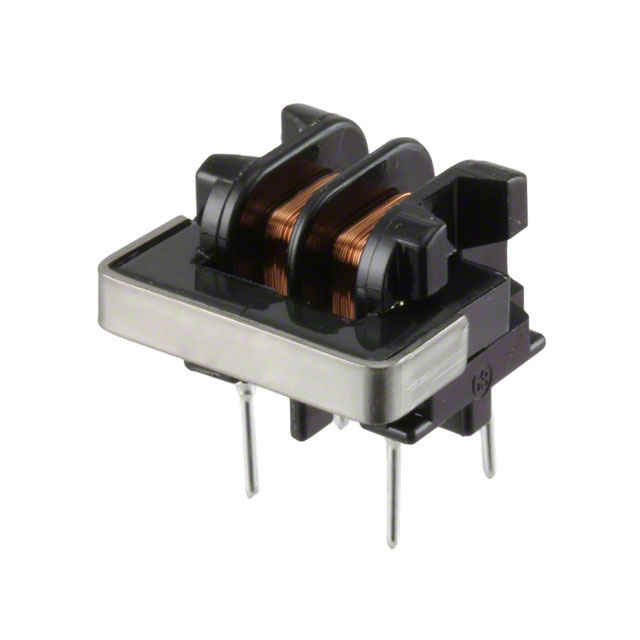

KEMET SU9H-01100	0.492 in	12.5 mm	2	250 V	10 mH	15.5 mm	17 mm	0.61 in	0.669 in	-25 °C	125 °C		Through Hole	Vertical 4 PC Pin	Power Line	100 mA	8 Ohm
KEMET SU9H-R02140	0.492 in	12.5 mm	2	250 V	14 mH	15.5 mm	17 mm	0.61 in	0.669 in	-25 °C	120 °C		Through Hole	Vertical 4 PC Pin	Power Line	200 mA	6 Ohm
