PRPC030 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 30POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Length - Mating	Contact Length - Mating	Number of Positions	Contact Finish - Post	Contact Material	Number of Rows	Shrouding	Contact Shape	Termination	Current Rating (Amps)	Overall Contact Length	Overall Contact Length	Insulation Color	Fastening Type	Style	Contact Type	Connector Type	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish - Mating	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Insulation Material	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length [x]	Overall Contact Length [x]
Sullins Connector Solutions PRPC030SAAN-RC	Flash	0.23 in	5.84 mm	30	Gold	Brass	1	Unshrouded	Square	Solder	3 A	0.448 in	11.39 mm	Black	Push-Pull	Board to Board Cable	Male Pin	Header Breakaway	3.05 mm	0.12 in	Flash	Gold	All	0.1 "	2.54 mm	UL94 V-0	Polybutylene Terephthalate (PBT)	0.098 "	2.5 mm	-40 C	105 ░C	Through Hole

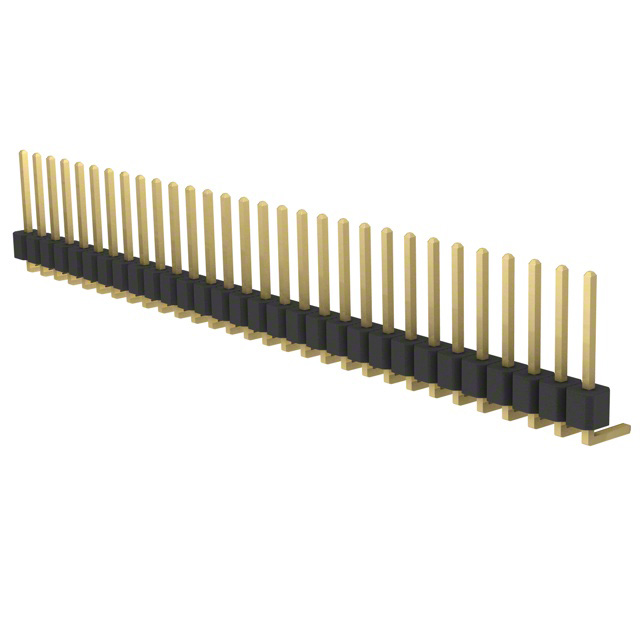

Sullins Connector Solutions PRPC030SGAN-M71RC	Flash	0.318 in	8.08 mm	30	Gold	Brass	1	Unshrouded	Square	Solder	3 A			Black	Push-Pull	Board to Board Cable	Male Pin	Header Breakaway	3.05 mm	0.12 in	Flash	Gold	All	0.1 "	2.54 mm	UL94 V-0	Polybutylene Terephthalate (PBT)	0.098 "	2.5 mm	-40 C	105 ░C	Right Angle Through Hole
Sullins Connector Solutions PRPC030DFAN-RC	Flash	0.318 in	8.08 mm	60	Gold	Brass		Unshrouded	Square	Solder	3 A			Black	Push-Pull	Board to Board Cable	Male Pin	Header Breakaway	3.05 mm	0.12 in	Flash	Gold	All	0.1 "	2.54 mm	UL94 V-0	Polybutylene Terephthalate (PBT)	0.098 "	2.5 mm	-40 C	105 ░C	Through Hole	2	0.1 in	2.54 mm	13.63 mm	0.537 in
Sullins Connector Solutions PRPC030DABN-RC	Flash	0.23 in	5.84 mm	60	Gold	Brass		Unshrouded	Square	Solder	3 A	0.558 in	14.18 mm	Black	Push-Pull	Board to Board Cable	Male Pin	Header Breakaway	5.84 mm	0.23 "	Flash	Gold	All	0.1 "	2.54 mm	UL94 V-0	Polybutylene Terephthalate (PBT)	0.098 "	2.5 mm	-40 C	105 ░C	Through Hole	2	0.1 in	2.54 mm

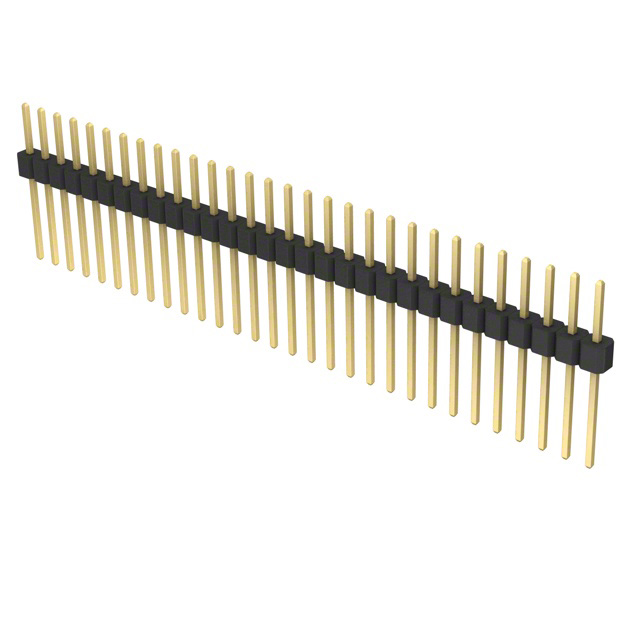

Sullins Connector Solutions PRPC030SADN-RC	Flash	0.23 in	5.84 mm	30	Gold	Brass	1	Unshrouded	Square	Solder	3 A	0.748 in	19.01 mm	Black	Push-Pull	Board to Board Cable	Male Pin	Header Breakaway	10.67 mm	0.42 in	Flash	Gold	All	0.1 "	2.54 mm	UL94 V-0	Polybutylene Terephthalate (PBT)	0.098 "	2.5 mm	-40 C	105 ░C	Through Hole
Sullins Connector Solutions PRPC030SFAN-RC	Flash	0.318 in	8.08 mm	30	Gold	Brass	1	Unshrouded	Square	Solder	3 A			Black	Push-Pull	Board to Board Cable	Male Pin	Header Breakaway	3.05 mm	0.12 in	Flash	Gold	All	0.1 "	2.54 mm	UL94 V-0	Polybutylene Terephthalate (PBT)	0.098 "	2.5 mm	-40 C	105 ░C	Through Hole				13.63 mm	0.537 in
Sullins Connector Solutions PRPC030DAAN-RC	Flash	0.23 in	5.84 mm	60	Gold	Brass		Unshrouded	Square	Solder	3 A	0.448 in	11.39 mm	Black	Push-Pull	Board to Board Cable	Male Pin	Header Breakaway	3.05 mm	0.12 in	Flash	Gold	All	0.1 "	2.54 mm	UL94 V-0	Polybutylene Terephthalate (PBT)	0.098 "	2.5 mm	-40 C	105 ░C	Through Hole	2	0.1 in	2.54 mm
