A-USBPA Series
Manufacturer: Assmann WSW Components
Beta
⌘K
CONN PLUG USB2.0 TYPEA 4POS SLD
| Part | Material Flammability Rating | Shell/Shielding Material | Insulation Color | Contact Finish | Mating Cycles | Gender | Current Rating (Amps) | Mounting Type | Specifications | Number of Ports | Connector Type | Termination | Number of Contacts | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

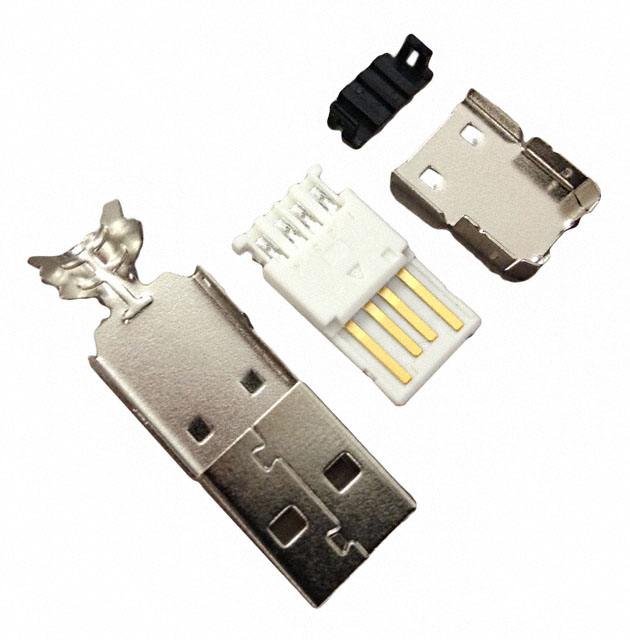

 Assmann WSW Components | UL94 V-0 | Steel (SPCC) | White | Gold | 1500 | Plug | 1.5 A | Free Hanging (In-Line) | USB 2.0 | 1 | USB-A (USB TYPE-A) | Solder | 4 | -55 C | 85 °C | |
 Assmann WSW Components | UL94 V-0 | Steel | White | Gold | Plug | 1.5 A | Free Hanging (In-Line) | USB 2.0 | 1 | USB-A (USB TYPE-A) | Solder | 4 | -55 C | 85 °C | 30 VAC | |

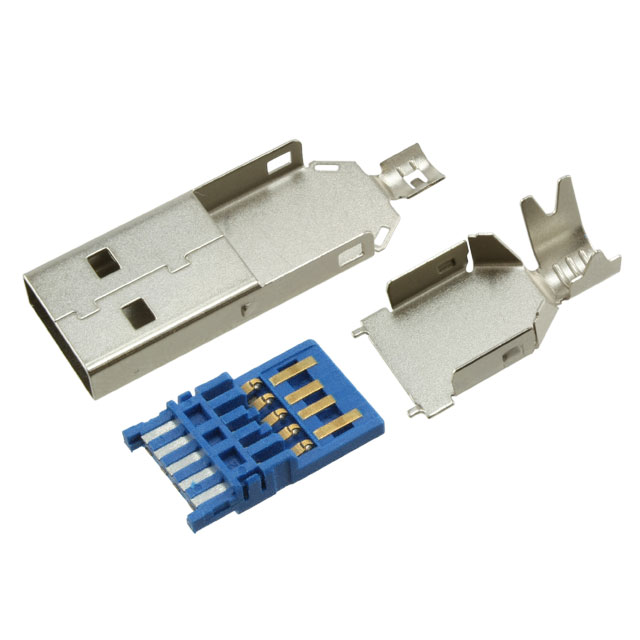

 Assmann WSW Components | UL94 V-0 | Steel (SPCC) | Blue | Gold | 1500 | Plug | Free Hanging (In-Line) | USB 3.2 Gen 1 (USB 3.1 Gen 1 Superspeed (USB 3.0)) | 1 | USB-A (USB TYPE-A) | Solder | 9 | -55 C | 85 °C |
