WP113 Series

Catalog

LED GREEN DIFF RECT 2MMX5MM T/H

Part	Color	Configuration	Viewing Angle	Lens Style	Lens Size [y]	Lens Size [x]	Mounting Type	Voltage - Forward (Vf) (Typ)	Current - Test	Lens Transparency	Package / Case	Height (Max) [Max] [z]	Supplier Device Package	Millicandela Rating	Lens Color	Wavelength - Dominant	Wavelength - Peak	Size / Dimension [y]	Size / Dimension [x]	Lens Type	Voltage Rating	Current

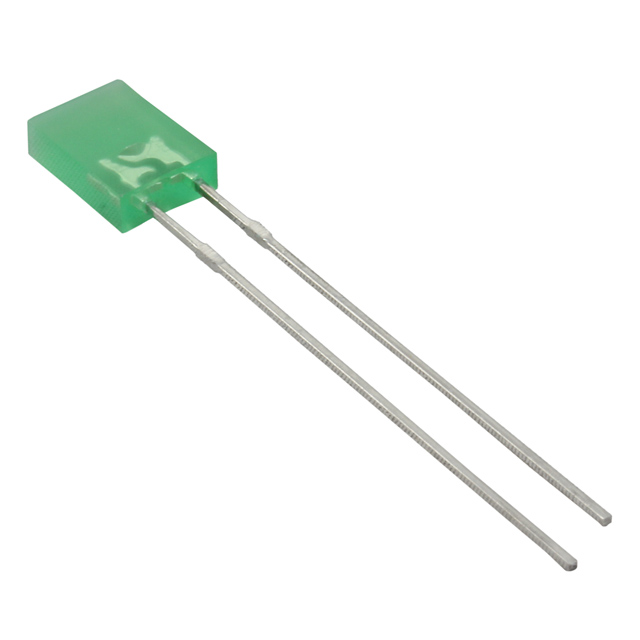

Kingbright WP113GDT	Green	Standard	110 °	Rectangle with Flat Top	2 mm	5 mm	Through Hole	2.2 V	20 mA	Diffused	Radial	7 mm	Rectangular 2mmx5mm	5 mcd	Green	568 nm	565 nm	2 mm	5 mm
Kingbright WP113WH/YD	Yellow	Single	110 °	Rectangle with Flat Top			Through Hole							4 mcd			588 nm			Diffused Tinted	1.95 V	30 mA

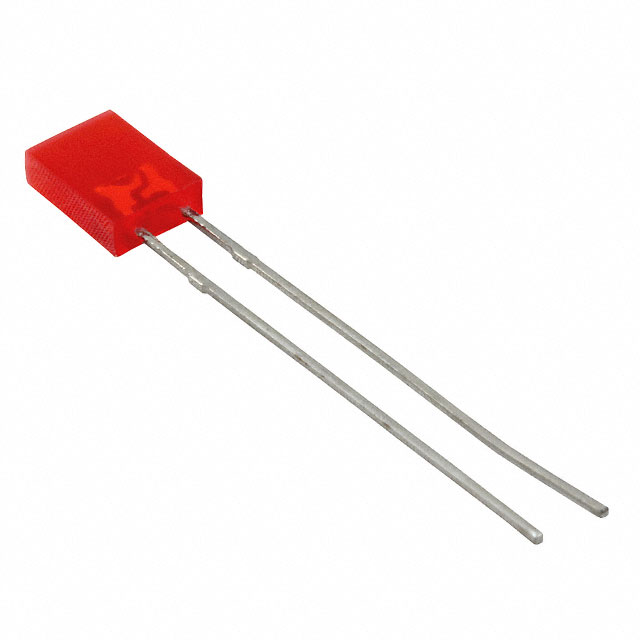

Kingbright WP113IDT	Red	Standard	110 °	Rectangle with Flat Top	2 mm	5 mm	Through Hole	2 V	20 mA	Diffused	Radial	7 mm	Rectangular 2mmx5mm	4 mcd	Red	617 nm	627 nm	2 mm	5 mm
Kingbright WP113HDT	Red	Standard	110 °	Rectangle with Flat Top	2 mm	5 mm	Through Hole	2.25 V	20 mA	Diffused	Radial	7 mm	Rectangular 2mmx5mm	0.6 mcd	Red	635 nm	700 nm	2 mm	5 mm
Kingbright WP113SRDT	Red	Standard	110 °	Rectangle with Flat Top	2 mm	5 mm	Through Hole	1.85 V	20 mA	Diffused	Radial	7 mm	Rectangular 2mmx5mm	20 mcd	Red	640 nm	655 nm	2 mm	5 mm
Kingbright WP113EDT		Standard	110 °	Rectangle with Flat Top	2 mm	5 mm	Through Hole	2 V	20 mA	Diffused	Radial	7 mm	Rectangular 2mmx5mm	4 mcd	Orange	617 nm	627 nm	2 mm	5 mm
Kingbright WP113YDT	Yellow	Standard	110 °	Rectangle with Flat Top	2 mm	5 mm	Through Hole	2.1 V	20 mA	Diffused	Radial	7 mm	Rectangular 2mmx5mm	4 mcd	Yellow	588 nm	590 nm	2 mm	5 mm
