SN74LVC2G17-Q1 Series

Enhanced product 2-ch, 1.65-V to 5.5-V buffers with Schmitt-Trigger inputs

Catalog

Enhanced product 2-ch, 1.65-V to 5.5-V buffers with Schmitt-Trigger inputs

Part	Input Type	Number of Elements	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Current - Output High, Low [y]	Current - Output High, Low [x]	Output Type	Logic Type	Number of Bits per Element	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]
Texas Instruments SN74LVC2G17DCKTG4	Schmitt Trigger	2	Surface Mount	5.5 V	1.65 V	6-TSSOP SC-88 SOT-363	32 mA	32 mA	Push-Pull	Buffer Non-Inverting	1	SC-70-6	-40 °C	125 °C
Texas Instruments SN74LVC2G17YZAR	Schmitt Trigger	2	Surface Mount	5.5 V	1.65 V	6-XFBGA DSBGA	32 mA	32 mA	Push-Pull	Buffer Non-Inverting	1	6-DSBGA	-40 °C	85 °C
Texas Instruments SN74LVC2G17DRYR	Schmitt Trigger	2	Surface Mount	5.5 V	1.65 V	6-UFDFN	32 mA	32 mA	Push-Pull	Buffer Non-Inverting	1	6-SON (1.45x1)	-40 °C	125 °C
Texas Instruments SN74LVC2G17DCKR-P	Schmitt Trigger	2	Surface Mount	5.5 V	1.65 V	6-TSSOP SC-88 SOT-363	32 mA	32 mA	Push-Pull	Buffer Non-Inverting	2	SC-70-6	-40 °C	125 °C
Texas Instruments SN74LVC2G17DCKRG4	Schmitt Trigger	2	Surface Mount	5.5 V	1.65 V	6-TSSOP SC-88 SOT-363	32 mA	32 mA	Push-Pull	Buffer Non-Inverting	1	SC-70-6	-40 °C	125 °C
Texas Instruments SN74LVC2G17DCK3	Schmitt Trigger	2	Surface Mount	5.5 V	1.65 V	6-TSSOP SC-88 SOT-363	32 mA	32 mA	Push-Pull	Buffer Non-Inverting	1	SC-70-6	-40 °C	85 °C
Texas Instruments SN74LVC2G17DCKR	Schmitt Trigger	2	Surface Mount	5.5 V	1.65 V	6-TSSOP SC-88 SOT-363	32 mA	32 mA	Push-Pull	Buffer Non-Inverting	1	SC-70-6	-40 °C	125 °C

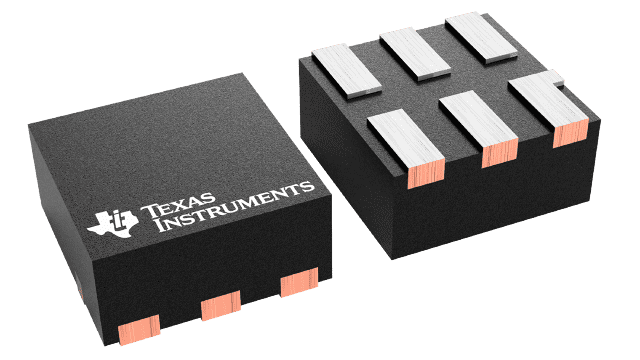

Texas Instruments SN74LVC2G17DSFR	Schmitt Trigger	2	Surface Mount	5.5 V	1.65 V	6-XFDFN	32 mA	32 mA	Push-Pull	Buffer Non-Inverting	1	6-SON (1x1)	-40 °C	125 °C
Texas Instruments SN74LVC2G17YEPR	Schmitt Trigger	2	Surface Mount	5.5 V	1.65 V	6-XFBGA DSBGA	32 mA	32 mA	Push-Pull	Buffer Non-Inverting	1	6-DSBGA	-40 °C	85 °C
Texas Instruments CLVC2G17MDCKREPG4	Schmitt Trigger	2	Surface Mount	5.5 V	1.65 V	6-TSSOP SC-88 SOT-363	32 mA	32 mA	Push-Pull	Buffer Non-Inverting	1	SC-70-6			125 °C	-55 °C

Catalog

Enhanced product 2-ch, 1.65-V to 5.5-V buffers with Schmitt-Trigger inputs

Key Features

• Schmitt-Trigger inputs provide hysteresisAvailable in the Texas Instruments NanoFree™ PackageSupports 5-V VCCOperationInputs Accept Voltages to 5.5 VMax tpdof 5.4 ns at 3.3 VLow Power Consumption, 10-µA Max ICC±24-mA Output Drive at 3.3 VTypical VOLP(Output Ground Bounce)< 0.8 V at VCC= 3.3 V, TA= 25°CTypical VOHV(Output VOHUndershoot)> 2 V at VCC= 3.3 V, TA= 25°CIoffSupports Live Insertion, Partial-Power-Down ModeOperation and Back-Drive ProtectionLatch-Up Performance Exceeds 100 mA Per JESD 78,Class IIESD Protection Exceeds JESD 222000-V Human-Body Model1000-V Charged-Device ModelSchmitt-Trigger inputs provide hysteresisAvailable in the Texas Instruments NanoFree™ PackageSupports 5-V VCCOperationInputs Accept Voltages to 5.5 VMax tpdof 5.4 ns at 3.3 VLow Power Consumption, 10-µA Max ICC±24-mA Output Drive at 3.3 VTypical VOLP(Output Ground Bounce)< 0.8 V at VCC= 3.3 V, TA= 25°CTypical VOHV(Output VOHUndershoot)> 2 V at VCC= 3.3 V, TA= 25°CIoffSupports Live Insertion, Partial-Power-Down ModeOperation and Back-Drive ProtectionLatch-Up Performance Exceeds 100 mA Per JESD 78,Class IIESD Protection Exceeds JESD 222000-V Human-Body Model1000-V Charged-Device Model

Description

This dual Schmitt-Trigger buffer is designed for 1.65-V to 5.5-V VCCoperation. The SN74LVC2G17 device contains two buffers and performs the Boolean function Y = A. The device functions as two independent buffers, but because of Schmitt action, it may have different input threshold levels for positive-going (VT+) and negative-going (VT–) signals. NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package. This device is fully specified for partial-power-down applications using Ioff. The Ioffcircuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. This dual Schmitt-Trigger buffer is designed for 1.65-V to 5.5-V VCCoperation. The SN74LVC2G17 device contains two buffers and performs the Boolean function Y = A. The device functions as two independent buffers, but because of Schmitt action, it may have different input threshold levels for positive-going (VT+) and negative-going (VT–) signals. NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package. This device is fully specified for partial-power-down applications using Ioff. The Ioffcircuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
