TPS62826 Series

Catalog

2.4-V-5.5-V INPUT, 3-A STEP-DOWN CONVERTER WITH 1% ACCURACY IN 1.5-MM X 1.5-MM VSON-HR PACKAGE

Part	Voltage - Input (Min) [Min]	Frequency - Switching	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Output Configuration	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]	Package / Case	Output Type	Voltage - Output (Max) [Max]	Voltage - Output (Min/Fixed)	Topology	Current - Output	Number of Outputs	Mounting Type	Function	Voltage - Input [Min]	Voltage - Input [Max]	Main Purpose	Voltage - Output	Regulator Topology	Contents	Outputs and Type	Utilized IC / Part	Supplied Contents	Board Type	Outputs and Type
Texas Instruments TPS62826DMQR	2.4 V	2.2 MHz	-40 C	125 °C	5.5 V	Positive	1.5	6-VSON-HR	1.5	6-VFDFN	Adjustable	4 V	0.6 V	Buck	3 A	1	Surface Mount	Step-Down
Texas Instruments TPS6282618DMQT	2.4 V	2.2 MHz	-40 C	125 °C	5.5 V	Positive	1.5	6-VSON-HR	1.5	6-VFDFN			1.8 V	Buck	3 A	1	Surface Mount	Step-Down
Texas Instruments TPS62826DMQT	2.4 V	2.2 MHz	-40 C	125 °C	5.5 V	Positive	1.5	6-VSON-HR	1.5	6-VFDFN	Adjustable	4 V	0.6 V	Buck	3 A	1	Surface Mount	Step-Down
Texas Instruments TPS6282618DMQR	2.4 V	2.2 MHz	-40 C	125 °C	5.5 V	Positive	1.5	6-VSON-HR	1.5	6-VFDFN			1.8 V	Buck	3 A	1	Surface Mount	Step-Down

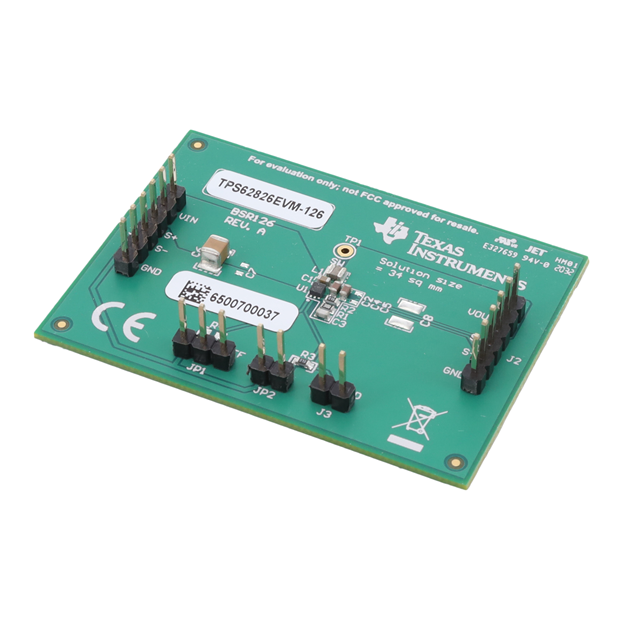

Texas Instruments TPS62826AEVM-126		2.2 MHz													3 A				2.4 V	5.5 V	DC/DC Step Down	1.8 V	Buck	Board(s)	1 Non-Isolated Output	TPS62826A

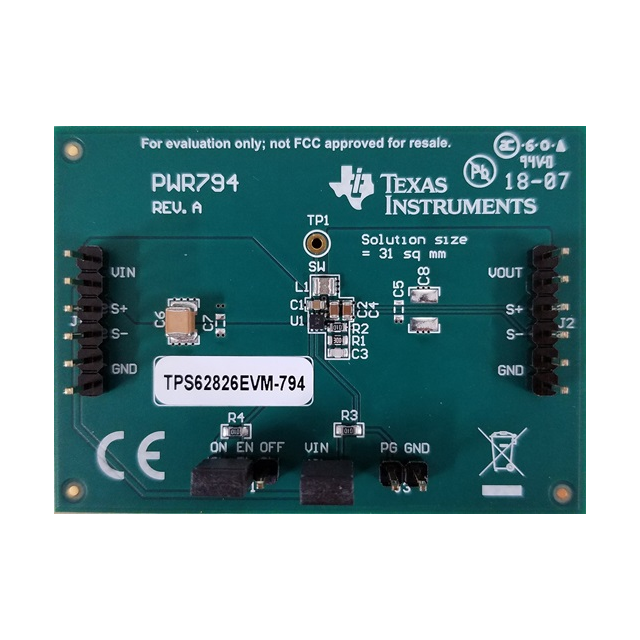

Texas Instruments TPS62826EVM-794															3 A				2.4 V	5.5 V	DC/DC Step Down	1.8 V	Buck	Board(s)	1 Non-Isolated Output Non-Isolated	TPS62826	Board(s)	Fully Populated	1
