052271 Series

Manufacturer: Molex

Catalog

CONN FPC BOTTOM 21POS 1MM R/A

Part	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Housing Material	Contact Finish	Features	Flat Flex Type	Locking Feature	Connector/Contact Type	Mounting Type	Current Rating (Amps)	Termination	FFC, FCB Thickness	Pitch [x]	Pitch [x]	Cable End Type	Mating Cycles	Contact Finish Thickness	Contact Finish Thickness	Height Above Board	Height Above Board	Material Flammability Rating	Number of Positions	Actuator Material
Molex 0522712179	50 V	85 °C	-40 °C	Phosphor Bronze	Polyamide (PA46) Nylon 4/6	Tin Bismuth	Solder Retention Zero Insertion Force (ZIF)	FPC	Slide Lock	Contacts Bottom	Surface Mount Right Angle	0.5 A	Solder	0.3 mm	0.039 in	1 mm	Tapered	30	39.4 Áin	1 Ám	0.118 in	3 mm	UL94 V-0	21	Polyphenylene Sulfide (PPS)
Molex 0522711490
Molex 0522711890	50 V	85 °C	-40 °C	Phosphor Bronze	Polyamide (PA46) Nylon 4/6	Tin-Lead	Solder Retention Zero Insertion Force (ZIF)	FPC	Slide Lock	Contacts Bottom	Surface Mount Right Angle	0.5 A	Solder	0.3 mm	0.039 in	1 mm	Tapered	30			0.118 in	3 mm	UL94 V-0	18	Polyphenylene Sulfide (PPS)
Molex 0522710669	50 V	85 °C	-40 °C	Phosphor Bronze	Polyamide (PA46) Nylon 4/6	Gold	Solder Retention Zero Insertion Force (ZIF)	FPC	Slide Lock	Contacts Bottom	Surface Mount Right Angle	0.5 A	Solder	0.3 mm	0.039 in	1 mm	Tapered	30			0.118 in	3 mm	UL94 V-0	6	Polyphenylene Sulfide (PPS)
Molex 0522711279	50 V	85 °C	-40 °C	Phosphor Bronze	Polyamide (PA46) Nylon 4/6	Tin Bismuth	Solder Retention Zero Insertion Force (ZIF)	FPC	Slide Lock	Contacts Bottom	Surface Mount Right Angle	0.5 A	Solder	0.3 mm	0.039 in	1 mm	Tapered	30	39.4 Áin	1 Ám	0.118 in	3 mm	UL94 V-0	12	Polyphenylene Sulfide (PPS)

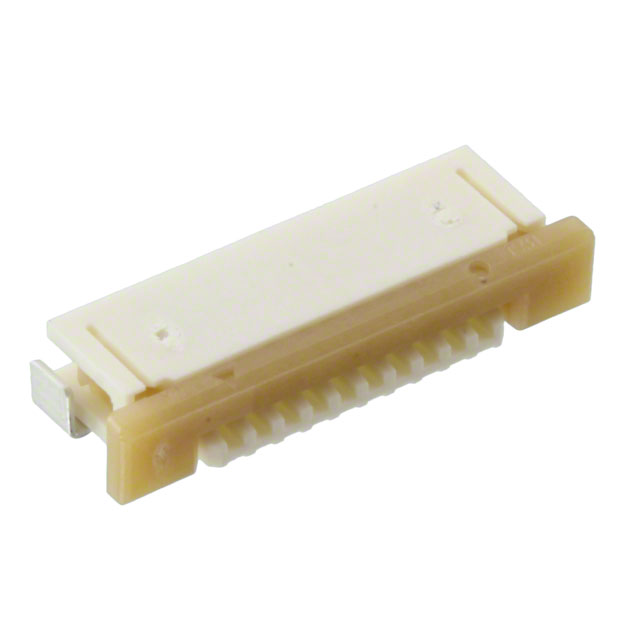

Molex 0522711079	50 V	85 °C	-40 °C	Phosphor Bronze	Polyamide (PA46) Nylon 4/6	Tin Bismuth	Solder Retention Zero Insertion Force (ZIF)	FPC	Slide Lock	Contacts Bottom	Surface Mount Right Angle	0.5 A	Solder	0.3 mm	0.039 in	1 mm	Tapered	30	39.4 Áin	1 Ám	0.118 in	3 mm	UL94 V-0	10	Polyphenylene Sulfide (PPS)

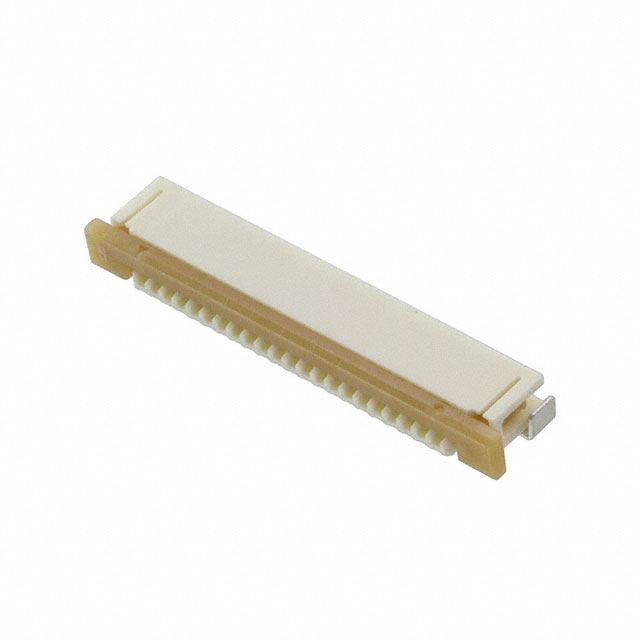

Molex 0522712269	50 V	85 °C	-40 °C	Phosphor Bronze	Polyamide (PA46) Nylon 4/6	Gold	Solder Retention Zero Insertion Force (ZIF)	FPC	Slide Lock	Contacts Bottom	Surface Mount Right Angle	0.5 A	Solder	0.3 mm	0.039 in	1 mm	Tapered	30			0.118 in	3 mm	UL94 V-0	22 positions	Polyphenylene Sulfide (PPS)

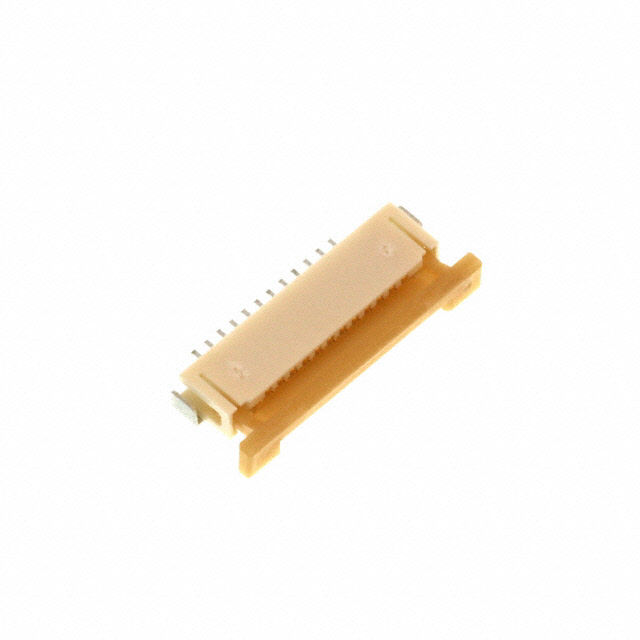

Molex 0522711269	50 V	85 °C	-40 °C	Phosphor Bronze	Polyamide (PA46) Nylon 4/6	Gold	Solder Retention Zero Insertion Force (ZIF)	FPC	Slide Lock	Contacts Bottom	Surface Mount Right Angle	0.5 A	Solder	0.3 mm	0.039 in	1 mm	Tapered	30			0.118 in	3 mm	UL94 V-0	12	Polyphenylene Sulfide (PPS)
Molex 0522712279	50 V	85 °C	-40 °C	Phosphor Bronze	Polyamide (PA46) Nylon 4/6	Tin Bismuth	Solder Retention Zero Insertion Force (ZIF)	FPC	Slide Lock	Contacts Bottom	Surface Mount Right Angle	0.5 A	Solder	0.3 mm	0.039 in	1 mm	Tapered	30	39.4 Áin	1 Ám	0.118 in	3 mm	UL94 V-0	22 positions	Polyphenylene Sulfide (PPS)
Molex 0522710890
