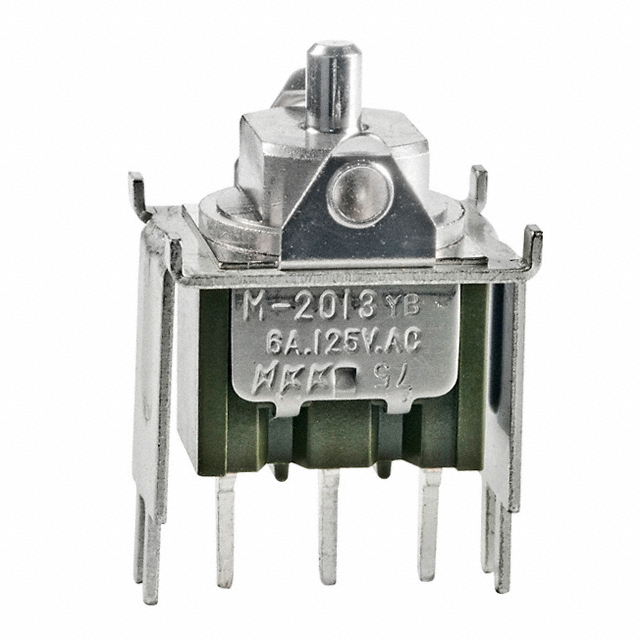

M2013TZ Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH ROCKER SPDT 6A 125V
| Part | Electrical Life | Mechanical Life | Circuit | Actuator Marking | Current Rating (Amps) | Voltage Rating - AC | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Features | Switch Function | Mounting Type | Voltage Rating - DC | Color - Actuator/Cap | Actuator Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | 50000 Cycles | SPDT | No Marking | 3 A 6 A | 125 V | 85 °C | -30 ░C | PC Pin | Epoxy Sealed Terminals | On-Off-On | Through Hole | 30 V | Red | Paddle | CSA UL |
 NKK Switches | 25000 Steps | 50000 Cycles | SPDT | No Marking | 3 A 6 A | 125 V | 85 °C | -30 ░C | PC Pin | Epoxy Sealed Terminals | On-Off-On | Through Hole | 30 V | Black | Concave | CSA UL |
 NKK Switches | 25000 Steps | 50000 Cycles | SPDT | Varies by Cap | 3 A 6 A | 125 V | 85 °C | -30 ░C | PC Pin | Epoxy Sealed Terminals | On-Off-On | Through Hole | 30 V | Actuator Arm Cap Required | CSA UL |
