661-037 Series
Manufacturer: EDAC Inc.
Beta
⌘K

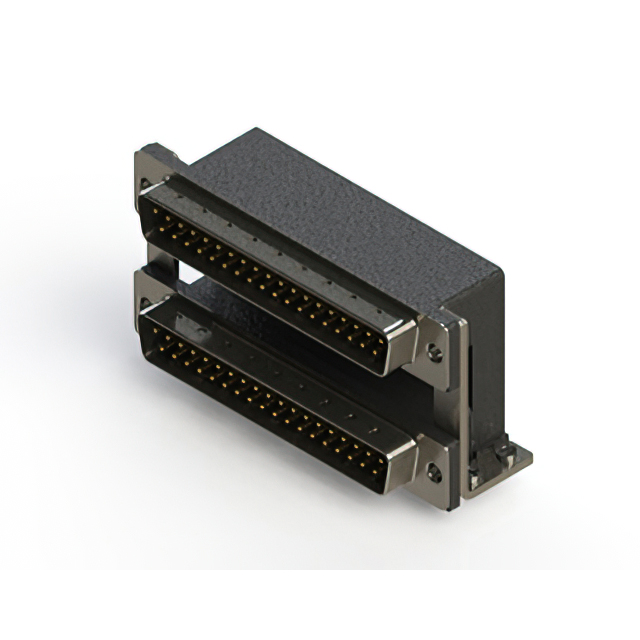

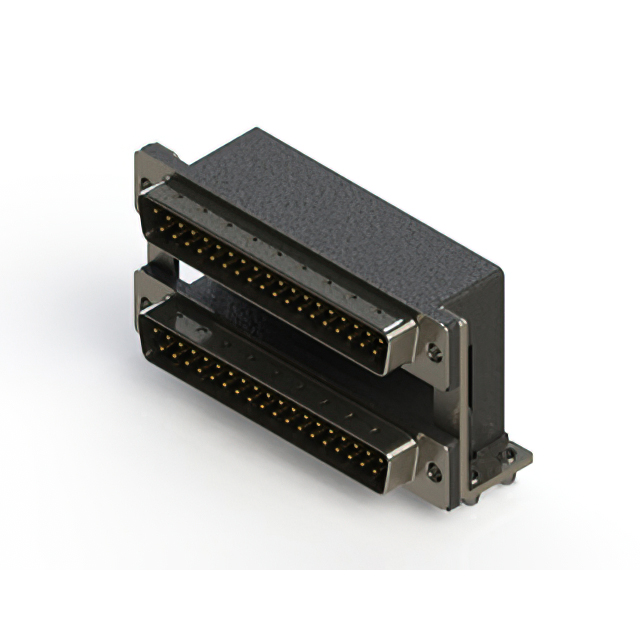

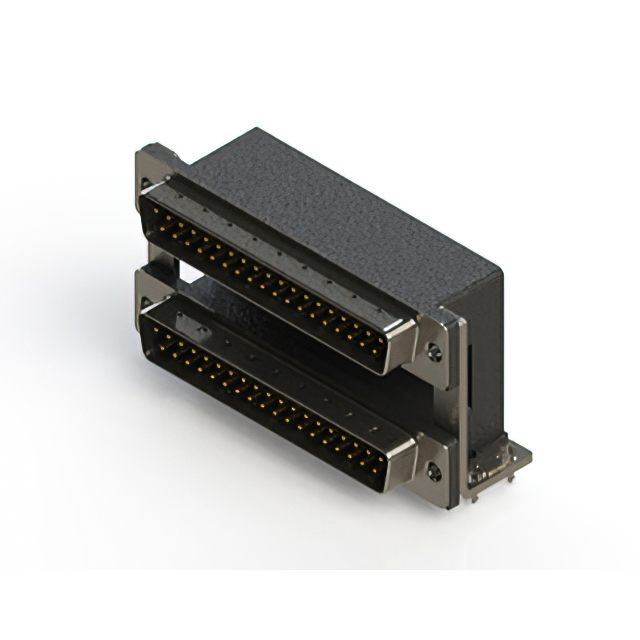

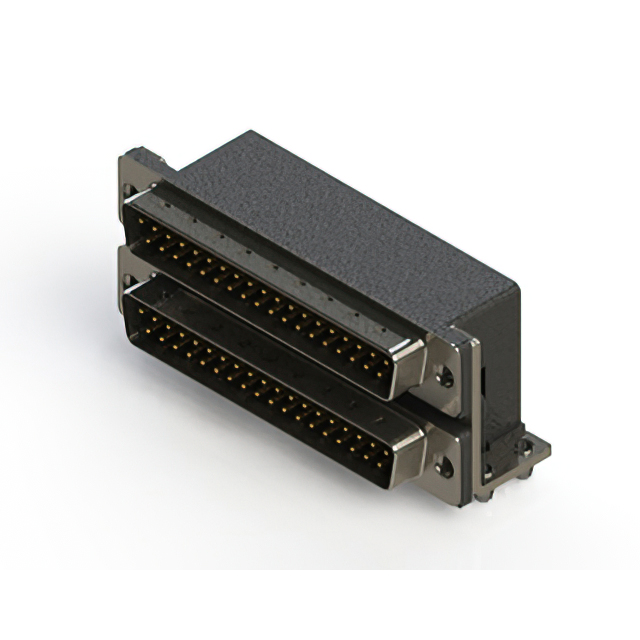

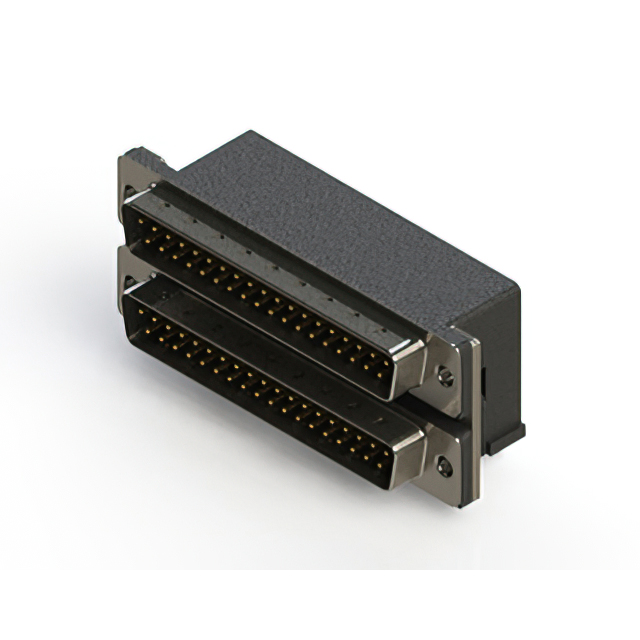

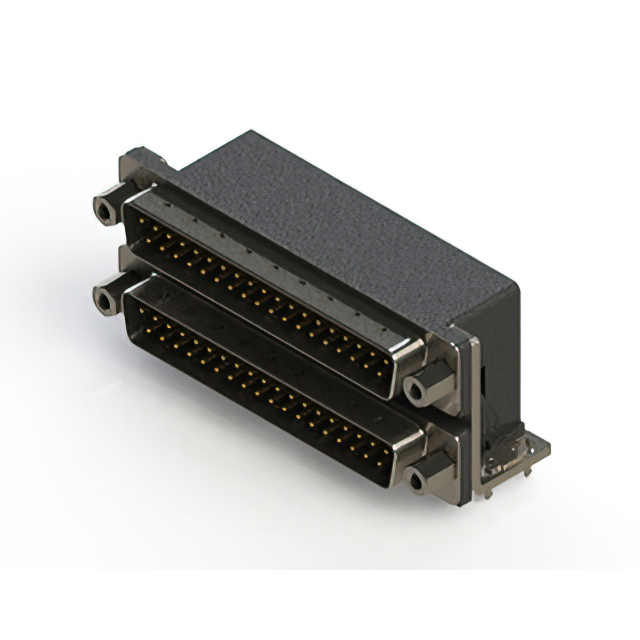

RIGHT-ANGLE DUAL PORT D-SUB CONNECTOR ROHS COMPLIANT: YES
| Part | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Dielectric Material | Shell Size, Connector Layout | Connector Type | Backset Spacing | Backset Spacing | Contact Type | Features | Contact Finish | Material Flammability Rating | Number of Positions [Min] | Number of Positions [Max] | Flange Feature | Shell Material, Finish | Current Rating (Amps) | Number of Rows [custom] | Connector Style | Contact Finish Thickness | Contact Finish Thickness | Termination | Mounting Type | Flange Feature | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Brass | -55 C | 85 °C | Black | Polyester Thermoplastic | 4 | Plug Male Pins | 8.08 mm | 0.318 " | Signal | Board Lock Grounding Indents Mounting Brackets Shielded | Gold | UL94 V-0 | 37 | 37 | Housing/Shell (Unthreaded) | Nickel Plated Steel | 3 A | 2 | D-Sub - Stacked | 30 Áin | 0.76 Ám | Solder | Panel Mount Right Angle Through Hole | ||
 EDAC Inc. | Brass | -55 C | 85 °C | Black | Polyester Thermoplastic | 4 | Plug Male Pins | 8.08 mm | 0.318 " | Signal | Board Lock Grounding Indents Mounting Brackets Shielded | Gold | UL94 V-0 | 37 | 37 | Housing/Shell (M3) | Nickel Plated Steel | 3 A | 2 | D-Sub - Stacked | 30 Áin | 0.76 Ám | Solder | Panel Mount Right Angle Through Hole | ||
 EDAC Inc. | Brass | -55 C | 85 °C | Black | Polyester Thermoplastic | 4 | Plug Male Pins | 8.08 mm | 0.318 " | Signal | Grounding Indents Mounting Brackets Shielded | Gold | UL94 V-0 | 37 | 37 | Housing/Shell (M3) | Nickel Plated Steel | 3 A | 2 | D-Sub - Stacked | 30 Áin | 0.76 Ám | Solder | Panel Mount Right Angle Through Hole | ||
 EDAC Inc. | Brass | -55 C | 85 °C | Black | Polyester Thermoplastic | 4 | Plug Male Pins | 8.08 mm | 0.318 " | Signal | Grounding Indents Mounting Brackets Shielded | Gold | UL94 V-0 | 37 | 37 | Housing/Shell | Nickel Plated Steel | 3 A | 2 | D-Sub - Stacked | 15 µin | 0.38 µm | Solder | Panel Mount Right Angle Through Hole | 4-40 | |
 EDAC Inc. | Brass | -55 C | 85 °C | Black | Polyester Thermoplastic | 4 | Plug Male Pins | 8.08 mm | 0.318 " | Signal | Board Lock Grounding Indents Mounting Brackets Shielded | Gold | UL94 V-0 | 37 | 37 | 4-40 Mating Side Female Screwlock | Nickel Plated Steel | 3 A | 2 | D-Sub - Stacked | 15 µin | 0.38 µm | Solder | Panel Mount Right Angle Through Hole | ||
 EDAC Inc. | Brass | -55 C | 85 °C | Black | Polyester Thermoplastic | 4 | Plug Male Pins | 8.08 mm | 0.318 " | Signal | Board Lock Grounding Indents Mounting Brackets Shielded | Gold | UL94 V-0 | 37 | 37 | Housing/Shell (Unthreaded) | Nickel Plated Steel | 3 A | 2 | D-Sub - Stacked | 15 µin | 0.38 µm | Solder | Panel Mount Right Angle Through Hole | ||
 EDAC Inc. | Brass | -55 C | 85 °C | Black | Polyester Thermoplastic | 4 | Plug Male Pins | 8.08 mm | 0.318 " | Signal | Board Lock Grounding Indents Mounting Brackets Shielded | Gold | UL94 V-0 | 37 | 37 | Housing/Shell (Unthreaded) | Nickel Plated Steel | 3 A | 2 | D-Sub - Stacked | 30 Áin | 0.76 Ám | Solder | Panel Mount Right Angle Through Hole | ||
 EDAC Inc. | Brass | -55 C | 85 °C | Black | Polyester Thermoplastic | 4 | Plug Male Pins | 8.08 mm | 0.318 " | Signal | Grounding Indents Mounting Brackets Shielded | Gold | UL94 V-0 | 37 | 37 | Housing/Shell | Nickel Plated Steel | 3 A | 2 | D-Sub - Stacked | 15 µin | 0.38 µm | Solder | Panel Mount Right Angle Through Hole | 4-40 | |
 EDAC Inc. | Brass | -55 C | 85 °C | Black | Polyester Thermoplastic | 4 | Plug Male Pins | 8.08 mm | 0.318 " | Signal | Grounding Indents Mounting Brackets Shielded | Gold | UL94 V-0 | 37 | 37 | 4-40 Mating Side Female Screwlock | Nickel Plated Steel | 3 A | 2 | D-Sub - Stacked | 30 Áin | 0.76 Ám | Solder | Panel Mount Right Angle Through Hole | ||
 EDAC Inc. | Brass | -55 C | 85 °C | Black | Polyester Thermoplastic | 4 | Plug Male Pins | 8.08 mm | 0.318 " | Signal | Grounding Indents Mounting Brackets Shielded | Gold | UL94 V-0 | 37 | 37 | Housing/Shell (Unthreaded) | Nickel Plated Steel | 3 A | 2 | D-Sub - Stacked | Solder | Panel Mount Right Angle Through Hole | Flash |
