JN1 / JN2 Series
Manufacturer: JAE Electronics
Beta
⌘K

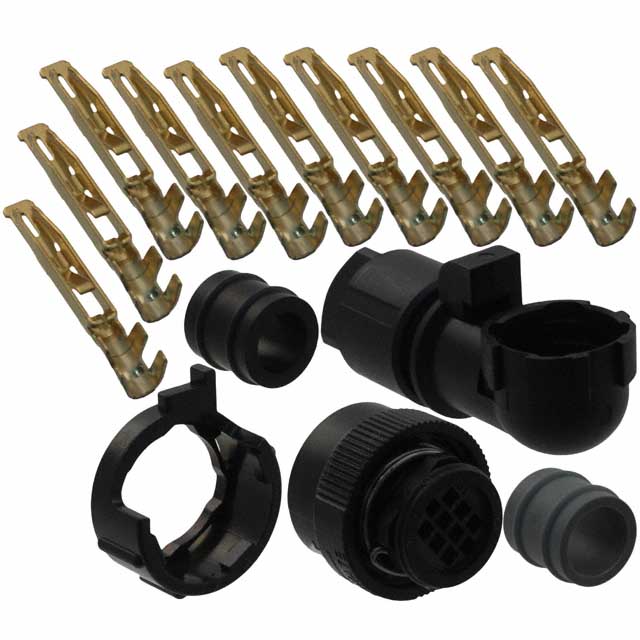

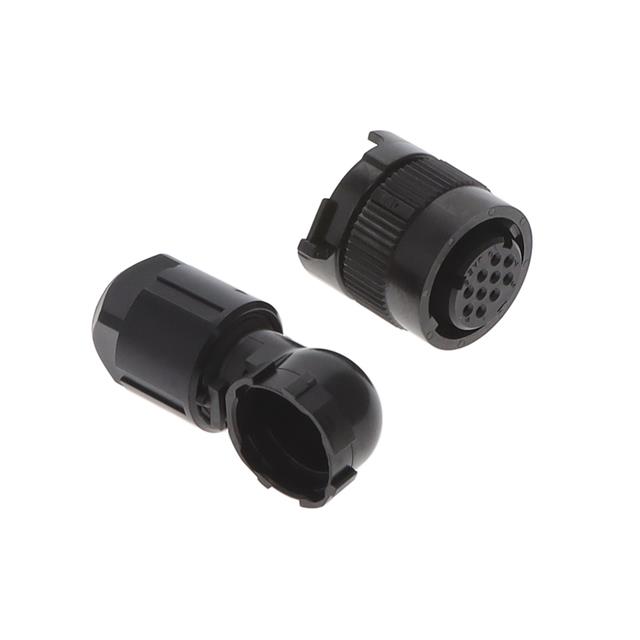

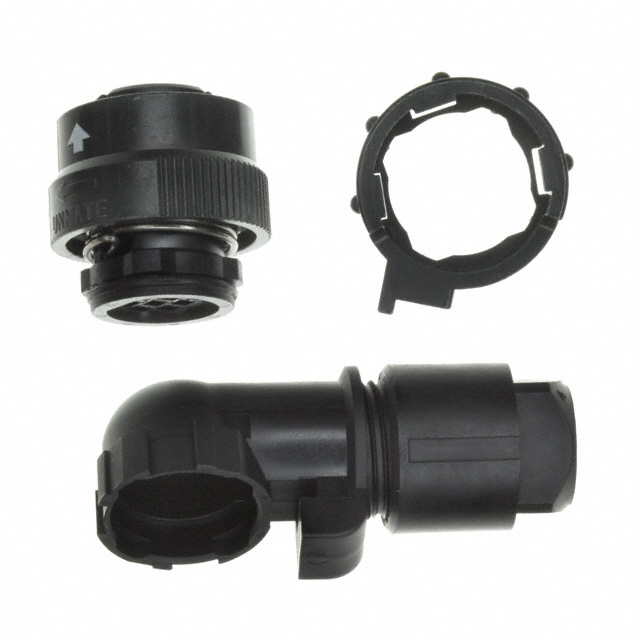

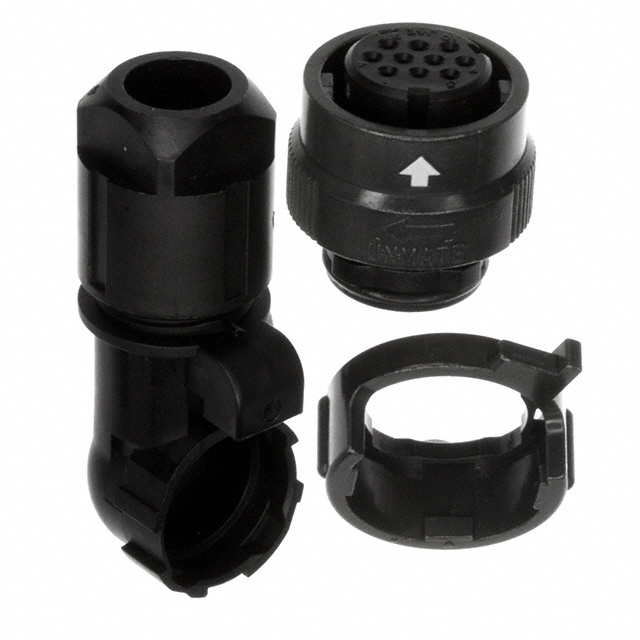

STANDARD CIRCULAR CONNECTOR 10P ANGLE PLUG CRIMP SOCKET
| Part | Insert Material | Operating Temperature [Min] | Operating Temperature [Max] | Note | Contact Shape | Contact Type | Contact Size | Shell Size - Insert | Orientation | Ingress Protection | Mounting Type | Shell Material | Connector Type | Features | Fastening Type | Number of Positions | Shielding | Type | Shell Finish | Housing Color | Current Rating (Amps) | Color | Mounting Feature | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Voltage Rating | Primary Material | Cable Opening | Cable Opening | Contact Material | Termination | Applications | Backshell Material, Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Synthetic Resin | -20 ░C | 100 °C | Contacts Not Included | Circular | Crimp | 22 | S | N (Normal) | IP67 - Dust Tight Waterproof | Free Hanging (In-Line) Right Angle | Zinc Alloy | Plug Housing | Backshell Coupling Nut Rotatable | Push-Twist | 10 | Unshielded | For Female Sockets | Zinc | Black | ||||||||||||||
 JAE Electronics | Synthetic Resin | -20 ░C | 125 °C | S | N (Normal) | IP67 - Dust Tight Waterproof | Panel Mount | Synthetic Resin | Receptacle Male Pins | Push-Twist | 10 | 3 A | Black | Flange | 3.9 µin | 0.099 µm | Gold | 200 VAC | Plastic | 12 mm | 0.472 in | Copper Alloy | ||||||||||||
 JAE Electronics | Synthetic Resin | -20 ░C | 125 °C | Contacts Not Included | Circular | Crimp | 22 | S | N (Normal) | IP67 - Dust Tight Waterproof | Free Hanging (In-Line) Right Angle | Synthetic Resin | Plug Housing | Backshell Coupling Nut Rotatable | Push-Twist | 10 | Unshielded | For Female Sockets | Black | |||||||||||||||
 JAE Electronics | Synthetic Resin | -20 ░C | 100 °C | Contacts Not Included | Circular | Crimp | 22 | W | N (Normal) | IP67 - Dust Tight Waterproof | Free Hanging (In-Line) | Zinc Alloy | Plug Housing | Backshell Coupling Nut | Push-Twist | 15 | Unshielded | For Female Sockets | Zinc | Black | ||||||||||||||
 JAE Electronics | Synthetic Resin | -20 ░C | 125 °C | S | N (Normal) | IP67 - Dust Tight Waterproof | Panel Mount Through Hole | Synthetic Resin | Receptacle Male Pins | Push-Twist | 10 | 3 A | Black | Flange | 3.9 µin | 0.099 µm | Gold | 200 VAC | Plastic | 12 mm | 0.472 in | Copper Alloy | Solder | |||||||||||
 JAE Electronics | Synthetic Resin | -20 ░C | 100 °C | W | N (Normal) | IP67 - Dust Tight Waterproof | Free Hanging (In-Line) | Zinc Alloy | Plug Male Pins | Backshell Coupling Nut | Push-Twist | 5 | Zinc | 13 A | Black | Silver | 400 VAC | Metal | Copper Alloy | Industrial | Synthetic Resin |
