EV60 Series

Catalog

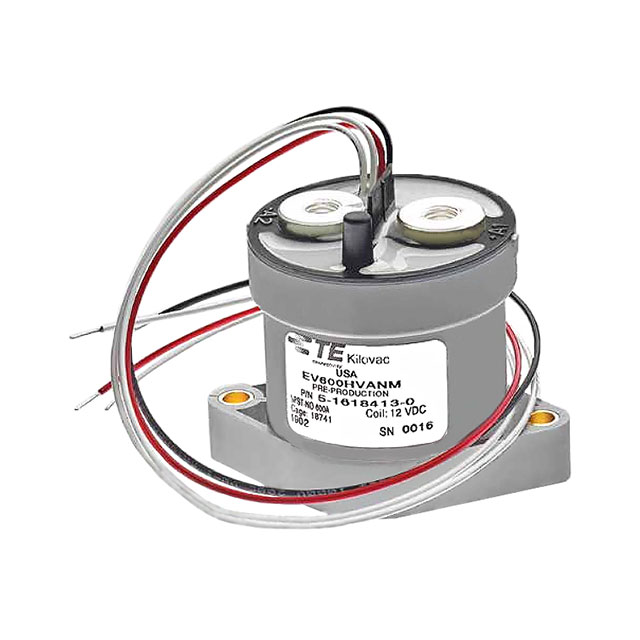

CONTACTOR, SPST-NO, 12V COI

Part	Switching Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Coil Current	Coil Voltage	Must Operate Voltage	Must Release Voltage	Coil Resistance	Contact Rating (Current)	Termination Style	Coil Power	Operate Time	Contact Material	Features	Mounting Type	Contact Form	Release Time
TE Connectivity Aerospace, Defense and Marine EV600HVANM	900 VDC	85 °C	-55 °C	280 mA	12 VDC	9 VDC	3.5 VDC	43 Ohms	600 A	Screw Terminal Wire Leads	3.2 W	20 ms	Copper	Sealed - Hermetically	Chassis Mount	SPST-NO (DM) (1 Form X)	5 ms
TE Connectivity Aerospace, Defense and Marine EV600HSANM	900 VDC	85 °C	-55 °C	230 mA	24 VDC	16 VDC	10 VDC	104 Ohms	600 A	Screw Terminal Wire Leads	5.3 W	20 ms	Copper	Sealed - Hermetically	Chassis Mount	SPST-NO (DM) (1 Form X)	5 ms
