1736C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

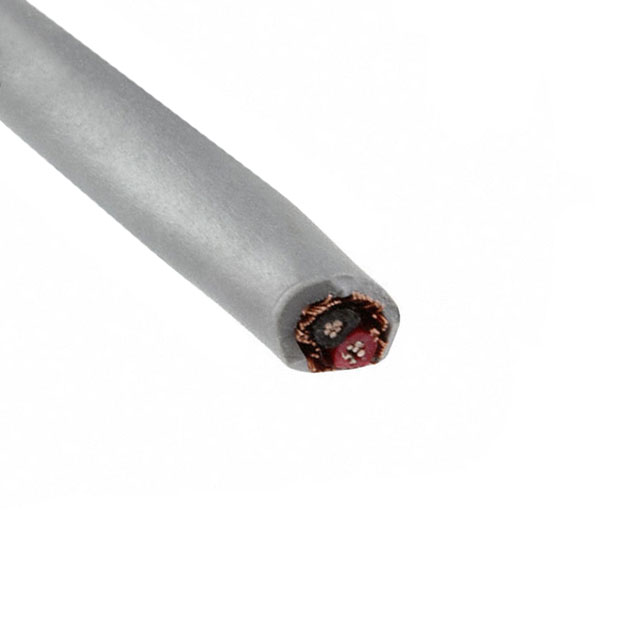

CABLE 2CON 22AWG SLATE SHLD 100'
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Material | Shield Type | Cable Type | Usage | Operating Temperature [Max] | Operating Temperature [Min] | Length [x] | Length [x] | Conductor Material | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Jacket Color | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 75 % | Copper Bare | Poly-Vinyl Chloride (PVC) | Braid | Multi-Conductor | Communication Control | 80 °C | -20 ░C | 100 ft | 30.5 m | Copper Tinned | 2 | 0.189 in | 4.8 mm | 30 AWG | 7 | 22 AWG | 300 VDC | 0.02 " | 0.508 mm | Poly-Vinyl Chloride (PVC) | Slate | ||
ALPHA WIRE | 75 % | Copper Bare | Poly-Vinyl Chloride (PVC) | Braid | Multi-Conductor | Communication Control | 80 °C | -20 ░C | Copper Tinned | 2 | 0.189 in | 4.8 mm | 30 AWG | 7 | 22 AWG | 300 VDC | 0.02 " | 0.508 mm | Poly-Vinyl Chloride (PVC) | Slate | 304.8 m | 1000 ft |
