BD450M5WFPJ-C Series

500mA 5V, Fixed Output, Low Iq, High-Accuracy LDO Regulator for Automotive

Catalog

500mA 5V, Fixed Output, Low Iq, High-Accuracy LDO Regulator for Automotive

Part	Mounting Type	Protection Features	Voltage - Input (Max) [Max]	Supplier Device Package	Package / Case	Package / Case	Package / Case	Current - Quiescent (Iq)	Output Configuration	Output Type	Current - Supply (Max) [Max]	Number of Regulators	Voltage Dropout (Max) [Max]	PSRR	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output (Min/Fixed)	Control Features	Current - Output	Grade	Qualification
Rohm Semiconductor BD450U2WEFJ-CE2	Surface Mount	Over Current Over Temperature	42 V	8-HTSOP-J	0.154 in	8-SOIC	3.9 mm	90 çA	Positive	1.81 mOhm	150 µA	1	0.35 V	65 dB	150 °C	-40 °C	5 V	Output Control	200 mA
Rohm Semiconductor BD450M5WFP2-CZE2	Surface Mount	Over Current Thermal Shutdown	42 V	TO-263-5		D2PAK (5 Leads + Tab) TO-263-6 TO-263BA		95 µA	Positive	1.81 mOhm	175 µA	1	0.5 V	60 dB			5 V	Output Control	500 mA	Automotive	AEC-Q100
Rohm Semiconductor BD450M2WEFJ-CE2	Surface Mount	Over Current Over Temperature	42 V	8-HTSOP-J	0.154 in	8-SOIC	3.9 mm	90 çA	Positive	1.81 mOhm	150 µA	1	0.35 V	65 dB			5 V	Output Control	200 mA	Automotive	AEC-Q100
Rohm Semiconductor BD450M5FP-CE2	Surface Mount	Over Current Over Temperature	42 V	TO-252-3		DPAK (2 Leads + Tab) SC-63 TO-252-3		175 µA	Positive	1.81 mOhm		1	0.75 V	60 dB	150 °C	-40 °C	5 V		500 mA	Automotive	AEC-Q100
Rohm Semiconductor BD450M2EFJ-CE2	Surface Mount	Over Current Over Temperature	42 V	8-HTSOP-J	0.154 in	8-SOIC	3.9 mm	90 çA	Positive	1.81 mOhm	150 µA	1	0.35 V	65 dB			5 V		200 mA	Automotive	AEC-Q100
Rohm Semiconductor BD450U2EFJ-CE2	Surface Mount	Over Current Over Temperature	42 V	8-HTSOP-J	0.154 in	8-SOIC	3.9 mm	90 çA	Positive	1.81 mOhm	150 µA	1	0.35 V	65 dB	150 °C	-40 °C	5 V		200 mA

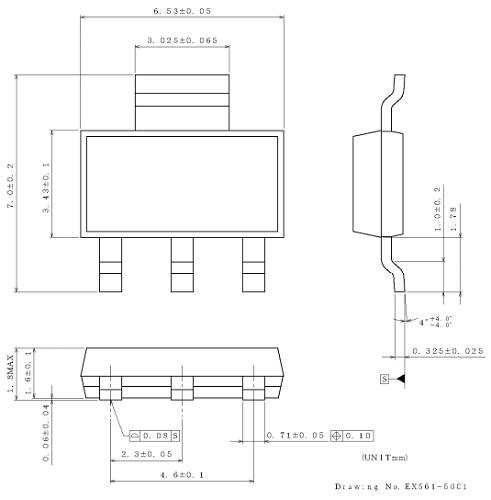

Rohm Semiconductor BD450M2FP3-CE2	Surface Mount	Over Current Thermal Shutdown	42 V	SOT-223-4F		TO-261-4 TO-261AA		90 çA	Positive	1.81 mOhm	150 µA	1	0.35 V	65 dB			5 V		200 mA	Automotive	AEC-Q100
Rohm Semiconductor BD450M2WFP3-CE2	Surface Mount	Over Current Thermal Shutdown	42 V	SOT-223-4F		TO-261-4 TO-261AA		90 çA	Positive	1.81 mOhm	150 µA	1	0.35 V	65 dB			5 V	Output Control	200 mA	Automotive	AEC-Q100

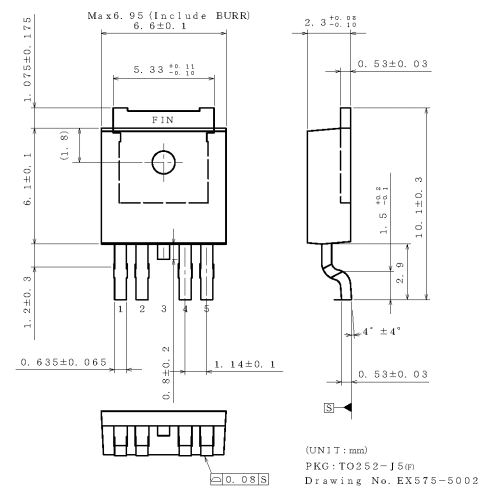

Rohm Semiconductor BD450M5WFPJ-CZE2	Surface Mount	Over Current Over Temperature	42 V	TO-252-J5F		DPAK (4 Leads + Tab) TO-252-5 TO-252AD		95 µA	Positive	1.81 mOhm	175 µA	1	0.5 V	60 dB			5 V	Output Control	500 mA	Automotive	AEC-Q100
Rohm Semiconductor BD450S2WFP3-CE2	Surface Mount	Over Current Over Temperature Short Circuit	42 V	SOT-223-4		TO-261-4 TO-261AA		90 çA	Positive	1.81 mOhm	150 µA	1	0.35 V	65 dB	150 °C	-40 °C	5 V	Output Control	200 mA	Automotive	AEC-Q100

Catalog

500mA 5V, Fixed Output, Low Iq, High-Accuracy LDO Regulator for Automotive

Key Features

• Qualified for Automotive Applications, Wide Temperature Range (Tj): -40℃ to +150℃, Wide Operating Input Range: 3.0V to 42V, Low Quiescent Current: 40µA (Typ), Output Current: 200mA, High Output Voltage Accuracy: ±2%, Output Voltage: 3.3V or 5.0V (Typ), Enable Input (Only W: Includes Enable Input), Over Current Protection (OCP), Thermal Shutdown Protection (TSD), AEC-Q100 Qualified (Grade 1), Functional Safety Supportive Automotive Products

Description

The BD450U2WEFJ-C is low quiescent regulator featuring 45V absolute maximum voltage, and output voltage accuracy of ±2%(5.0V: Typ.), 200mA output current and 40μA(Typ.) current consumption. This regulator is therefore ideal for applications requiring a direct connection to the battery and a low current consumption. A logical "HIGH" at the CTL pin enables the device and "LOW" at the CTL pin not enables the device.(Only W: Includes switch) Ceramic capacitors can be used for compensation of the output capacitor phase. Furthermore, this IC also features overcurrent protection to protect the device from damage caused by short-circuiting and an integrated thermal shutdown to protect the device from overheating at overload conditions.This IC uses different production line against series model BD450M2WEFJ-C for the purpose of improving production efficiency. We recommend using this IC for your new development. Electric characteristics noted in Datasheet does not differ between Production Line. In addition, the data of BD450M2WEFJ-C is disclosed for documents and design models unless otherwise specified.
