H3AWH-34 Series

Catalog

IDC CBL - HHSC34H/AE34M/HHPL34H

Part	Features	Pitch - Connector	Pitch - Connector	Color	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Rows [custom]	Pitch - Cable	Pitch - Cable	Number of Positions [custom]	Contact Finish	Shielding	Cable Termination	Length [x]	Length [x]	Length	Length	Length

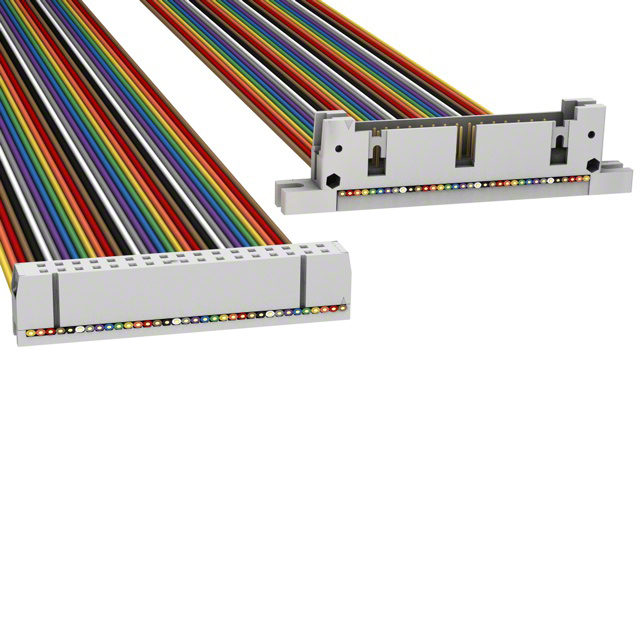

Assmann WSW Components H3AWH-3418M	Flange Polarizing Key	0.1 in	2.54 mm	Multiple Ribbon	0.38 µm	15 µin	Socket to Plug	2	0.05 in	1.27 mm	34	Gold	Unshielded	IDC	457.2 mm	1.5 ft

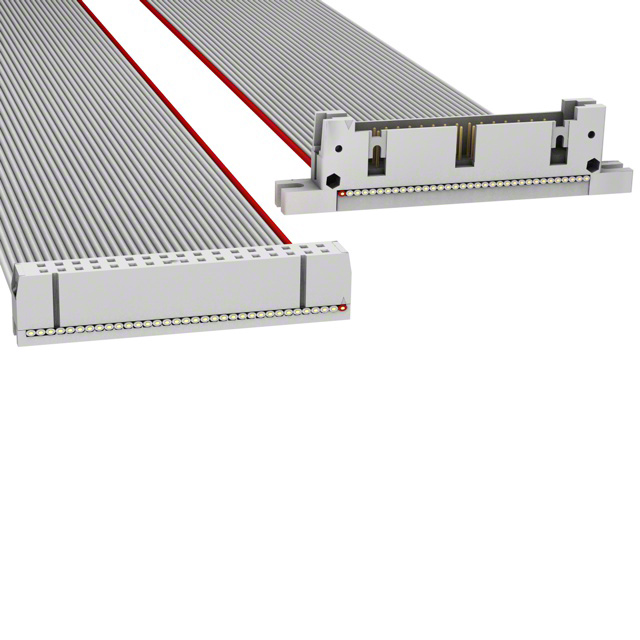

Assmann WSW Components H3AWH-3418G	Flange Polarizing Key	0.1 in	2.54 mm		0.38 µm	15 µin	Socket to Plug	2	0.05 in	1.27 mm	34	Gold	Unshielded	IDC	457.2 mm	1.5 ft
Assmann WSW Components H3AWH-3436M	Flange Polarizing Key	0.1 in	2.54 mm	Multiple Ribbon	0.38 µm	15 µin	Socket to Plug	2	0.05 in	1.27 mm	34	Gold	Unshielded	IDC			91.44 cm	3 ft
Assmann WSW Components H3AWH-3406M	Flange Polarizing Key	0.1 in	2.54 mm	Multiple Ribbon	0.38 µm	15 µin	Socket to Plug	2	0.05 in	1.27 mm	34	Gold	Unshielded	IDC			152.4 mm	0.5 '	6 "
Assmann WSW Components H3AWH-3436G	Flange Polarizing Key	0.1 in	2.54 mm		0.38 µm	15 µin	Socket to Plug	2	0.05 in	1.27 mm	34	Gold	Unshielded	IDC			91.44 cm	3 ft
Assmann WSW Components H3AWH-3406G	Flange Polarizing Key	0.1 in	2.54 mm		0.38 µm	15 µin	Socket to Plug	2	0.05 in	1.27 mm	34	Gold	Unshielded	IDC			152.4 mm	0.5 '	6 "
