MS3108E14 Series

Catalog

ER 3C 3#16S SKT PLUG RTANG

Part	Voltage Rating	Qualification	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Finish - Mating	Ingress Protection	Color	Fastening Type	Shell Finish	Shell Material	Mounting Type	Orientation	Primary Material	Features	Shell Size - Insert	Grade	Current Rating (Amps)	Number of Positions	Orientation [x]
ITT Cannon, LLC MS3108E14S-7S	500 VAC 700 VDC	MIL-DTL-5015	-55 C	125 °C	Plug Female Sockets	Silver	Environment Resistant	Olive Drab	Threaded	Olive Drab Cadmium	Aluminum Alloy	Free Hanging (In-Line) Right Angle	N (Normal)	Metal	Cable Clamp Coupling Nut	14S-7	Military	22 A

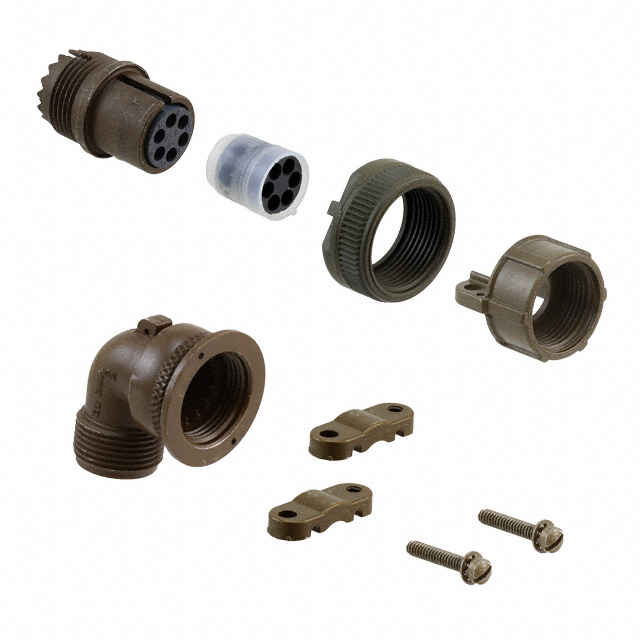

ITT Cannon, LLC MS3108E14S-6S	200 VAC 250 V	MIL-DTL-5015	-55 C	125 °C	Plug Female Sockets	Silver	Environment Resistant	Olive Drab	Threaded	Olive Drab Cadmium	Aluminum Alloy	Free Hanging (In-Line) Right Angle	N (Normal)	Metal	Cable Clamp Coupling Nut	14S-6	Military	22 A	6
ITT Cannon, LLC MS3108E14S-7PX	500 VAC 700 VDC	MIL-DTL-5015	-55 C	125 °C	Plug Male Pins	Silver	Environment Resistant	Olive Drab	Threaded	Olive Drab Cadmium	Aluminum Alloy	Free Hanging (In-Line) Right Angle		Metal	Cable Clamp Coupling Nut	14S-7	Military	22 A		X
ITT Cannon, LLC MS3108E14S-9P	500 VAC 700 VDC	MIL-DTL-5015	-55 C	125 °C	Plug Male Pins	Silver	Environment Resistant	Olive Drab	Threaded	Olive Drab Cadmium	Aluminum Alloy	Free Hanging (In-Line) Right Angle	N (Normal)	Metal	Cable Clamp Coupling Nut	14S-9	Military	22 A	2
