LSF0102DP Series

2-bit bidirectional multi-voltage level translator; open-drain; push-pull

Manufacturer: Freescale Semiconductor - NXP

Catalog

2-bit bidirectional multi-voltage level translator; open-drain; push-pull

Part	Package / Case	Channel Type	Number of Circuits	Output Type	Channels per Circuit	Voltage - VCCB [Max]	Voltage - VCCB [Min]	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage - VCCA [Max] [custom]	Voltage - VCCA [Min] [custom]	Translator Type	Package / Case [custom]	Package / Case

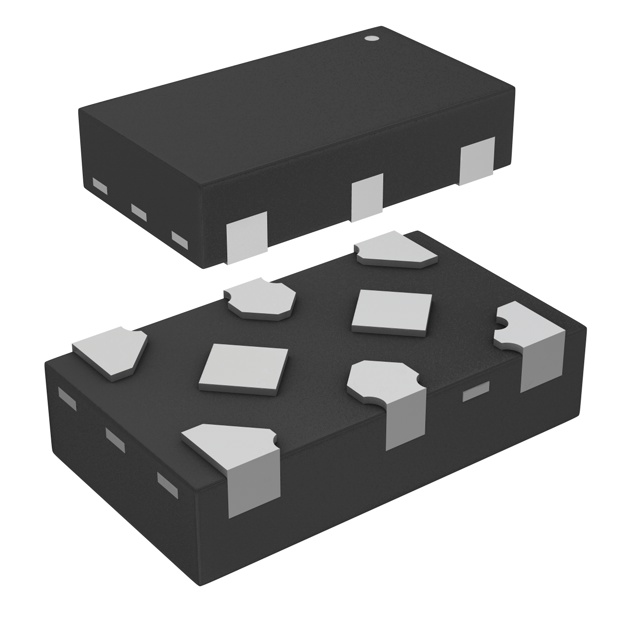

Freescale Semiconductor - NXP LSF0102GXX	8-XFDFN Exposed Pad	Bidirectional	1	Open Drain Push-Pull	2	5 V	0 V	8-X2SON (1.35x0.8)	-40 °C	125 °C	Surface Mount	5 V	0 V	Voltage Level
Freescale Semiconductor - NXP LSF0102DPH	8-MSOP 8-TSSOP	Bidirectional	1	Open Drain Push-Pull	2	5 V	0 V	8-TSSOP	-40 °C	125 °C	Surface Mount	5 V	0 V	Voltage Level	0.118 in	3 mm

Catalog

2-bit bidirectional multi-voltage level translator; open-drain; push-pull

Key Features

• ≤ 100 MHz; CL= 30 pF

• ≤ 50 MHz; CL= 50 pF

Description

The LSF0102 and LSF0202 are both 2 channel bidirectional multi-voltage level translators for open-drain and push-pull applications. The LSF0102 and LSF0202 support up to 100 MHz up translation and ≥100 MHz down translation at ≤ 30 pF capacitive load. There is no need for a direction pin which minimizes system effort. Both support 5 V tolerant I/O pins for compatibility with TTL levels in a variety of applications. The ability to set up different voltage translation levels on each channel makes the device very flexible and suitable for a lot of different applications.
