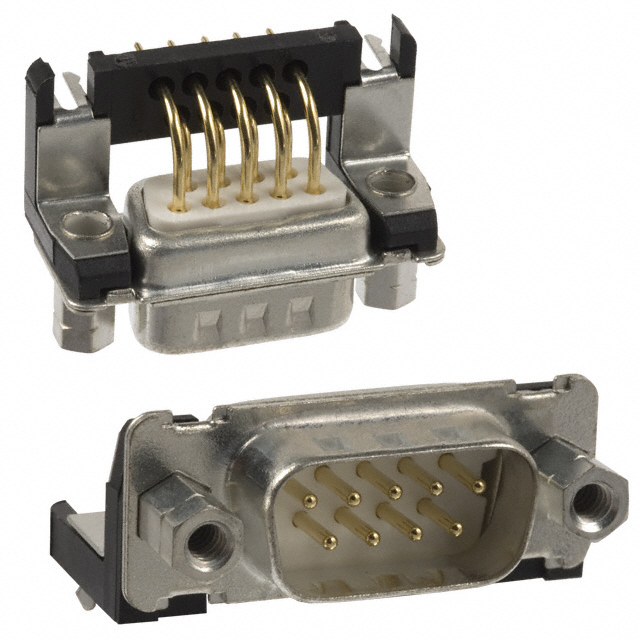

DEPV09 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K
CONN D-SUB PLUG 9POS SLDR CUP
| Part | Voltage Rating | Dielectric Material | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Number of Rows [custom] | Number of Positions | Mounting Type | Contact Finish | Connector Style | Material Flammability Rating | Current Rating (Amps) | Connector Type | Features | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Termination | Backset Spacing | Backset Spacing | Contact Finish Thickness | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | 1000 VDC | Thermoplastic | Copper Alloy | -55 C | 125 °C | Signal | 2 | 9 | Free Hanging (In-Line) | Gold Gold GXT™ | D-Sub | UL94 V-0 | 7.5 A | Plug Male Pins | Grounding Indents | 1 | DE E | Mating Side Female Screwlock (M3) | |||||||
 Amphenol ICC (FCI) | 1000 VDC | Thermoplastic | Copper Alloy | -55 C | 125 °C | Signal | 2 | 9 | Right Angle Through Hole | Gold GXT™ | D-Sub | UL94 V-0 | 7.5 A | Plug Male Pins | Board Lock Grounding Indents | 1 | DE E | 4-40 Mating Side Female Screwlock | 30 Áin | 0.76 Ám | Solder | 10.3 mm | 0.406 in | ||
 Amphenol ICC (FCI) | 1000 VDC | Thermoplastic | Phosphor Bronze | -55 C | 125 °C | Signal | 2 | 9 | Through Hole | Gold GXT™ | D-Sub | UL94 V-0 | 7.5 A | Receptacle Female Sockets | 1 | DE E | 4-40 Mating Side Female Screwlock | Solder | Flash | ||||||
 Amphenol ICC (FCI) | 1000 VDC | Thermoplastic | Copper Alloy | -55 C | 125 °C | Signal | 2 | 9 | Right Angle Through Hole | Gold GXT™ | D-Sub | UL94 V-0 | 7.5 A | Receptacle Female Sockets | Board Lock | 1 | DE E | 4-40 Mating Side Female Screwlock | 30 Áin | 0.76 Ám | Solder | 10.3 mm | 0.406 in | ||
 Amphenol ICC (FCI) | Thermoplastic | -55 C | 125 °C | Signal | 2 | 9 | Right Angle Through Hole | Gold GXT™ | D-Sub | 7.5 A | Plug Male Pins | Grounding Indents | 1 | DE E | 4-40 Mating Side Female Screwlock | 29.5 µin | 0.75 µm | Solder | |||||||
Amphenol ICC (FCI) | 300 VDC | Thermoplastic | Copper Alloy | -55 C | 125 °C | Signal | 2 | 9 | Right Angle Through Hole | Gold GXT™ | D-Sub | UL94 V-0 | 7.5 A | Receptacle Female Sockets | Board Lock | 1 | DE E | 4-40 Mating Side Female Screwlock | Solder | 10.3 mm | 0.406 in | Flash | |||
Amphenol ICC (FCI) | 1000 VDC | Thermoplastic | Brass | -55 C | 125 °C | Signal | 2 | 9 | Through Hole | Gold GXT™ | D-Sub | UL94 V-0 | 7.5 A | Plug Male Pins | Grounding Indents | 1 | DE E | 4-40 Mating Side Female Screwlock | 30 Áin | 0.76 Ám | Solder | ||||
 Amphenol ICC (FCI) | 1000 VDC | Thermoplastic | Copper Alloy | -55 C | 125 °C | Signal | 2 | 9 | Through Hole | Gold GXT™ | D-Sub | UL94 V-0 | 7.5 A | Plug Male Pins | Board Lock Grounding Indents | 1 | DE E | 4-40 Mating Side Female Screwlock | 30 Áin | 0.76 Ám | Solder | ||||
Amphenol ICC (FCI) | 1000 VDC | Thermoplastic | Copper Alloy | -55 C | 125 °C | Signal | 2 | 9 | Through Hole | Gold | D-Sub | UL94 V-0 | 7.5 A | Receptacle Female Sockets | Board Lock | 1 | DE E | Board Side (M3) | Solder | Flash | Metal |
