CKA26 Series

Catalog

CONN RCPT HSG MALE 9POS INLINE

Part	Note	Includes	Insert Material	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Type	Shell Material	Shielding	Shell Size - Insert	Housing Color	Shell Finish	Ingress Protection	Mounting Type	Material Flammability Rating	Orientation	Connector Type	Fastening Type	Features	Number of Positions
TE Intercontec CKA269N00450051000	Contacts Not Included	1 Backshell 1 Cable Clamp 1 Connector	Nylon 6/6 Polyamide (PA66)	Circular	-20 ░C	130 °C	For Male Pins	Zinc Die Cast	Shielded	M40-9	Silver	Nickel	IP66 IP67	Free Hanging (In-Line)	UL94 V-0	Keyed	Receptacle Housing	Push-Twist	Backshell Cable Clamp	9
TE Intercontec CKA267N00440026000	Contacts Not Included	1 Backshell 1 Cable Clamp 1 Connector	Nylon 6/6 Polyamide (PA66)	Circular	-20 ░C	130 °C	For Male Pins	Zinc Die Cast	Shielded	M40-6	Silver	Nickel	IP66 IP67	Free Hanging (In-Line)	UL94 V-0	Keyed	Receptacle Housing	Push-Twist	Backshell Cable Clamp	6
TE Intercontec CKA267N00250051000	Contacts Not Included	1 Backshell 1 Cable Clamp 1 Connector	Nylon 6/6 Polyamide (PA66)	Circular	-20 ░C	130 °C	For Male Pins	Zinc Die Cast	Shielded	M40-6	Silver	Nickel	IP66 IP67	Free Hanging (In-Line)	UL94 V-0	Keyed	Receptacle Housing	Push-Twist	Backshell Cable Clamp	6
TE Intercontec CKA269N00440051000	Contacts Not Included	1 Backshell 1 Cable Clamp 1 Connector	Nylon 6/6 Polyamide (PA66)	Circular	-20 ░C	130 °C	For Male Pins	Zinc Die Cast	Shielded	M40-9	Silver	Nickel	IP66 IP67	Free Hanging (In-Line)	UL94 V-0	Keyed	Receptacle Housing	Push-Twist	Backshell Cable Clamp	9
TE Intercontec CKA268N00450051000	Contacts Not Included	1 Backshell 1 Cable Clamp 1 Connector	Nylon 6/6 Polyamide (PA66)	Circular	-20 ░C	130 °C	For Male Pins	Zinc Die Cast	Shielded	M40-8	Silver	Nickel	IP66 IP67	Free Hanging (In-Line)	UL94 V-0	Keyed	Receptacle Housing	Push-Twist	Backshell Cable Clamp	8
TE Intercontec CKA268N00250026000	Contacts Not Included	1 Backshell 1 Cable Clamp 1 Connector	Nylon 6/6 Polyamide (PA66)	Circular	-20 ░C	130 °C	For Male Pins	Zinc Die Cast	Shielded	M40-8	Silver	Nickel	IP66 IP67	Free Hanging (In-Line)	UL94 V-0	Keyed	Receptacle Housing	Push-Twist	Backshell Cable Clamp	8

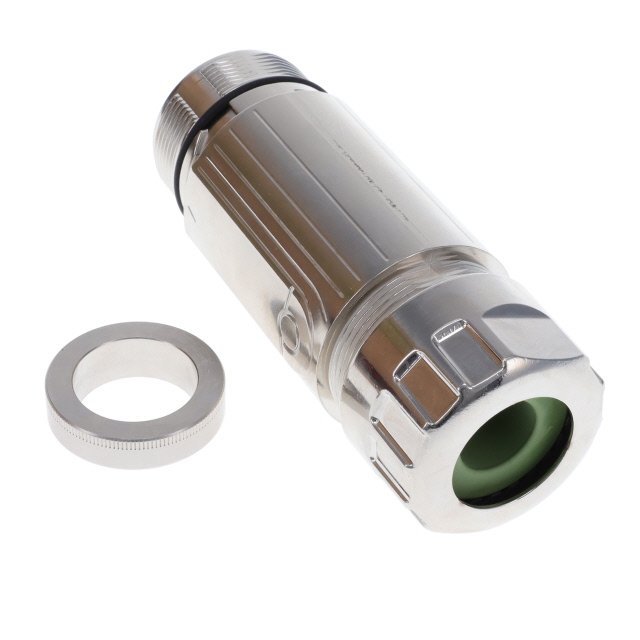

TE Intercontec CKA268N00440051000	Contacts Not Included	1 Backshell 1 Cable Clamp 1 Connector	Nylon 6/6 Polyamide (PA66)	Circular	-20 ░C	130 °C	For Male Pins	Zinc Die Cast	Shielded	M40-8	Silver	Nickel	IP66 IP67	Free Hanging (In-Line)	UL94 V-0	Keyed	Receptacle Housing	Push-Twist	Backshell Cable Clamp	8
TE Intercontec CKA267N00440051000	Contacts Not Included	1 Backshell 1 Cable Clamp 1 Connector	Nylon 6/6 Polyamide (PA66)	Circular	-20 ░C	130 °C	For Male Pins	Zinc Die Cast	Shielded	M40-6	Silver	Nickel	IP66 IP67	Free Hanging (In-Line)	UL94 V-0	Keyed	Receptacle Housing	Push-Twist	Backshell Cable Clamp	6
TE Intercontec CKA267N00450051000	Contacts Not Included	1 Backshell 1 Cable Clamp 1 Connector	Nylon 6/6 Polyamide (PA66)	Circular	-20 ░C	130 °C	For Male Pins	Zinc Die Cast	Shielded	M40-6	Silver	Nickel	IP66 IP67	Free Hanging (In-Line)	UL94 V-0	Keyed	Receptacle Housing	Push-Twist	Backshell Cable Clamp	6
