321518 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

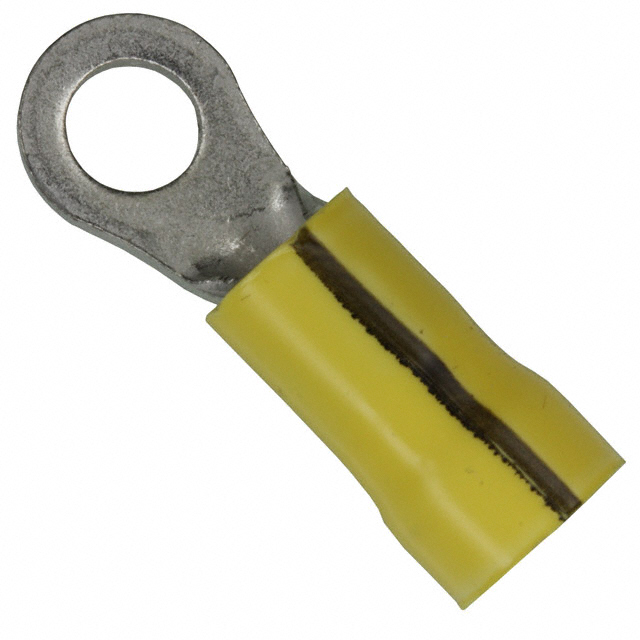

CONN RING CIRC 14-16AWG #10
| Part | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Min] | Insulation Diameter [Max] | Termination | Length - Overall [x] | Length - Overall [x] | Terminal Type | Color | Features | Mounting Type | Contact Material | Width - Outer Edges [x] | Width - Outer Edges [x] | Stud/Tab Size | Material - Insulation | Thickness | Thickness | Contact Finish | Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 0.25 " | 3.81 mm | 0.15 " | 6.35 mm | Crimp | 26.57 mm | 1.046 in | Circular | Yellow Black Stripe | Heavy Duty Serrated Termination | Free Hanging (In-Line) | Copper | 0.343 in | 8.71 mm | 10 Stud | Poly-Vinyl Chloride (PVC) | 0.048 in | 1.22 mm | Tin | Insulated |
