G37114 Series

Catalog

NEUTRAL FILTER; T=50%; D=22.4

Part	Transmission	Clear Aperture	Optic Diameter [diameter]	Type	Optical Density	Wavelength [Max]	Wavelength [Min]

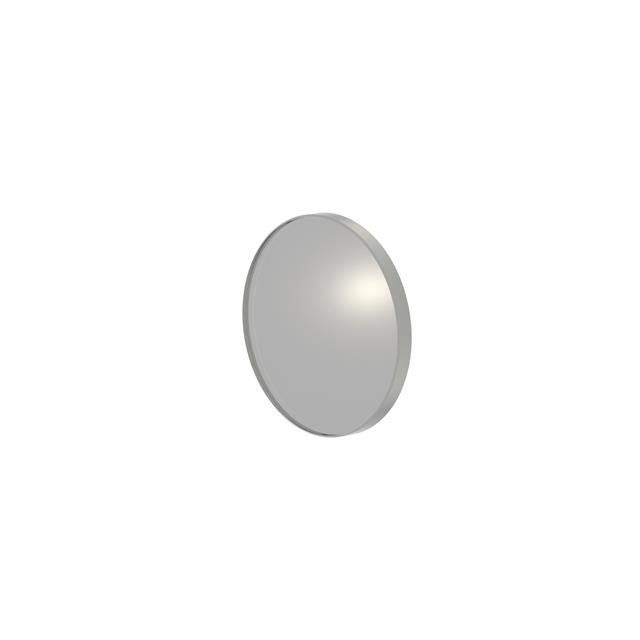

Excelitas Technologies G371140000	50 %	20 mm	22.4 mm	Neutral Density Filter	0.3	2000 nm	400 nm

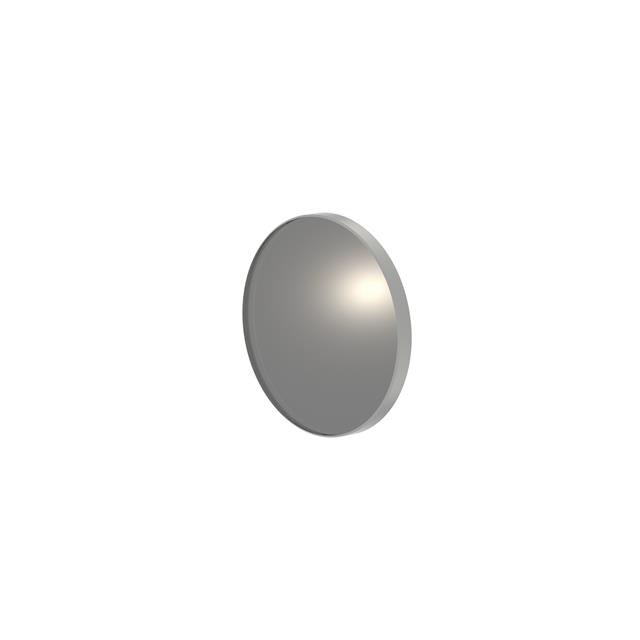

Excelitas Technologies G371141000	20 %	20 mm	22.4 mm	Neutral Density Filter	0.7	2000 nm	400 nm
Excelitas Technologies G371142000		20 mm	22.4 mm	Neutral Density Filter	1	2000 nm	400 nm

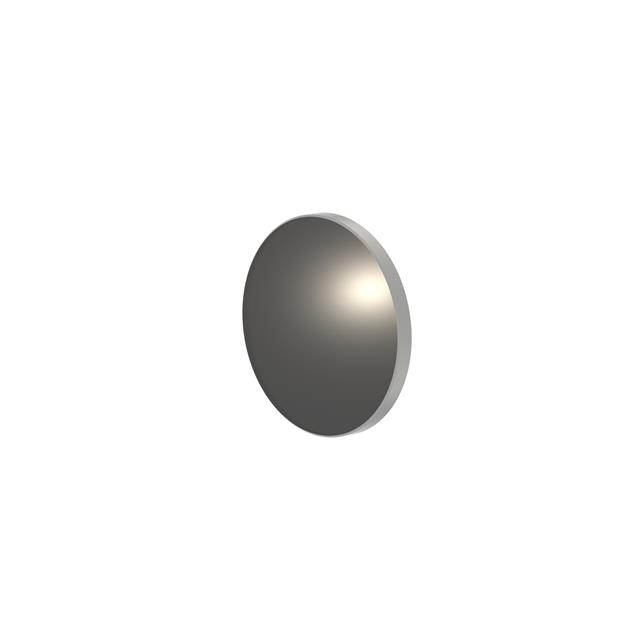

Excelitas Technologies G371144000	2 %	20 mm	22.4 mm	Neutral Density Filter	1.7	2000 nm	400 nm
Excelitas Technologies G371146000	0.1 %	20 mm	22.4 mm	Neutral Density Filter	3	2000 nm	400 nm

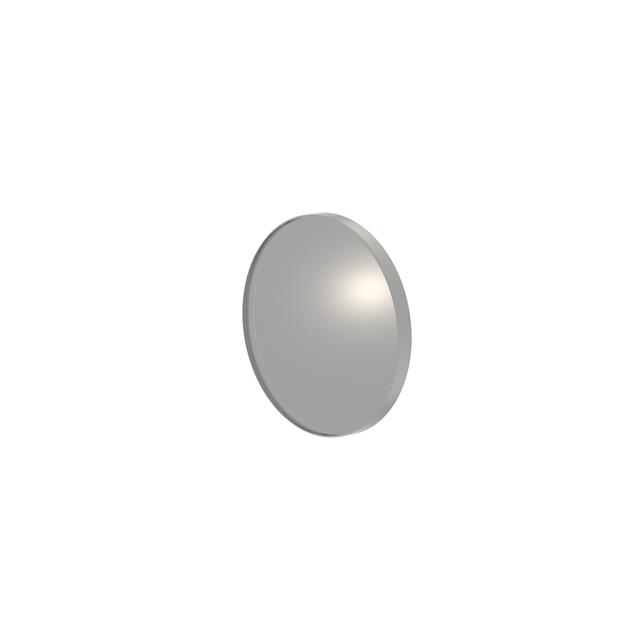

Excelitas Technologies G371148000	40 %	20 mm	22.4 mm	Neutral Density Filter	0.4	2000 nm	400 nm
Excelitas Technologies G371145000	1 %	20 mm	22.4 mm	Neutral Density Filter	2	2000 nm	400 nm
Excelitas Technologies G371143000	5 %	20 mm	22.4 mm	Neutral Density Filter	1.3	2000 nm	400 nm
