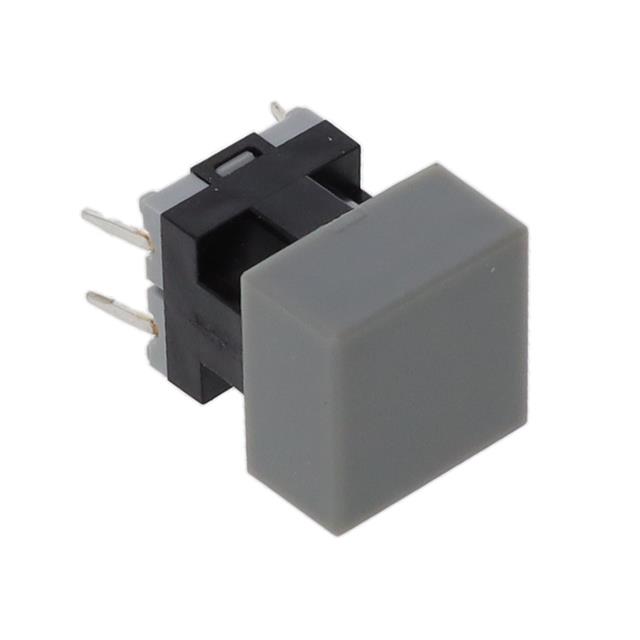

JB15HAN Series
Manufacturer: NKK Switches
Beta
⌘K
LOW PROFILE PROCESS SEALED TACTILE
| Part | Switch Travel | Actuator Material | Mechanical Life | Actuator Height off PCB, Vertical [z] | Switch Function | Illumination | Circuit | Actuator Orientation | Features | Actuator Type | Mounting Type | Ingress Protection | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Outline [x] | Outline [y] | Operating Force | Contact Rating @ Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 0.3 mm | Polybutylene Terephthalate (PBT) Glass Filled | 1000000 Cycles | 14.7 mm | Off-Mom | Non-Illuminated | SPST-NO | Top Actuated | Process Sealed | Square Button | Through Hole | IP67 - Dust Tight Waterproof | PC Pin | -25 °C | 70 °C | 10 mm | 10 mm | 265 gf | 0.125 A 24 VDC |
