LPPB062 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN HDR 12POS 0.05 GOLD SMD
| Part | Contact Shape | Contact Finish Thickness - Post | Contact Material | Insulation Material | Row Spacing - Mating | Row Spacing - Mating | Insulation Height | Insulation Height | Termination | Insulation Color | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Connector Type | Contact Finish - Post | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Features | Number of Positions | Contact Finish Thickness - Mating | Contact Type | Number of Rows [custom] | Mounting Type | Contact Finish - Mating | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

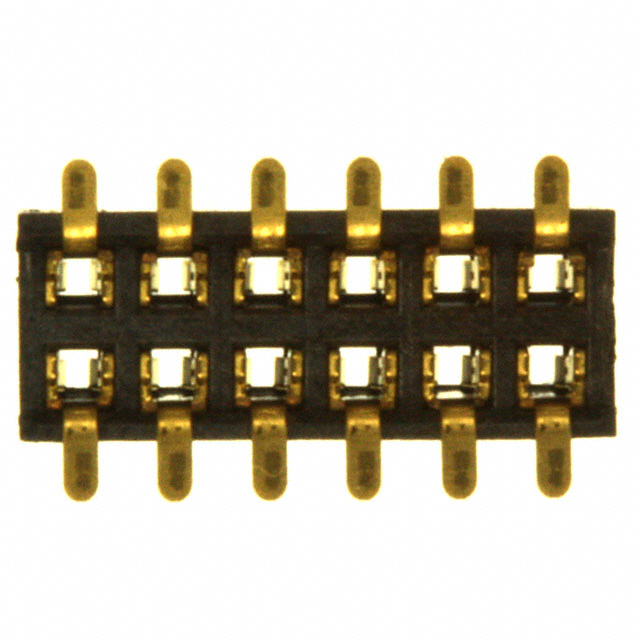

 Sullins Connector Solutions | Square | Flash | Phosphor Bronze | Liquid Crystal Polymer (LCP) | 0.05 in | 1.27 mm | 4.65 mm | 0.183 in | Solder | Black | 1.27 mm | 0.05 in | All | Header Top or Bottom Entry | Gold | UL94 V-0 | 125 °C | -40 C | Push-Pull | Board Guide | 12 | Flash | Female Socket | 2 | Surface Mount | Gold | ||

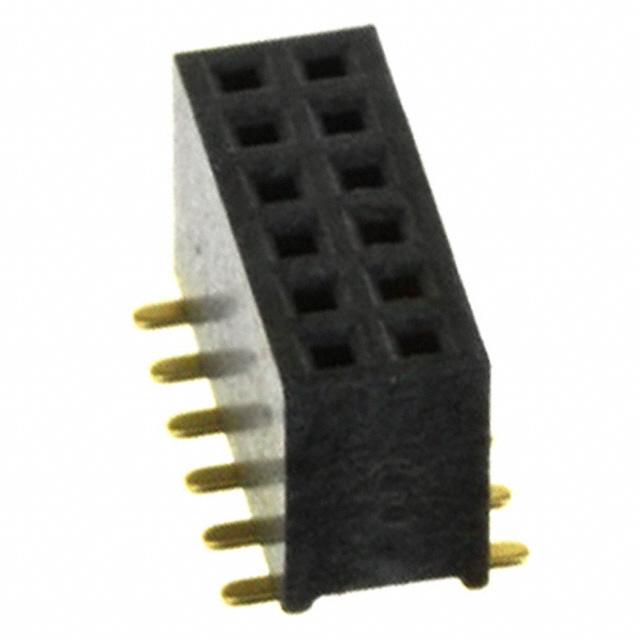

 Sullins Connector Solutions | Square | Flash | Phosphor Bronze | Liquid Crystal Polymer (LCP) | 0.05 in | 1.27 mm | 4.65 mm | 0.183 in | Solder | Black | 1.27 mm | 0.05 in | All | Header Top or Bottom Entry | Gold | UL94 V-0 | 125 °C | -40 C | Push-Pull | 12 | Flash | Female Socket | 2 | Surface Mount | Gold | |||

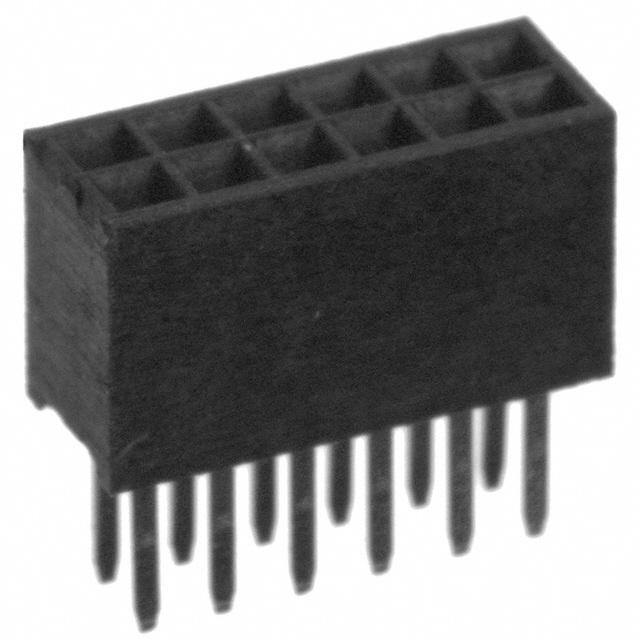

 Sullins Connector Solutions | Square | Flash | Phosphor Bronze | Liquid Crystal Polymer (LCP) | 0.05 in | 1.27 mm | 4.5 mm | 0.177 in | Solder | Black | 1.27 mm | 0.05 in | All | Header | Gold | UL94 V-0 | 125 °C | -40 C | Push-Pull | 12 | Flash | Female Socket | 2 | Through Hole | Gold | 0.118 in | 3 mm |
