WTB4SC Series
Manufacturer: SICK, Inc.
Beta
⌘K

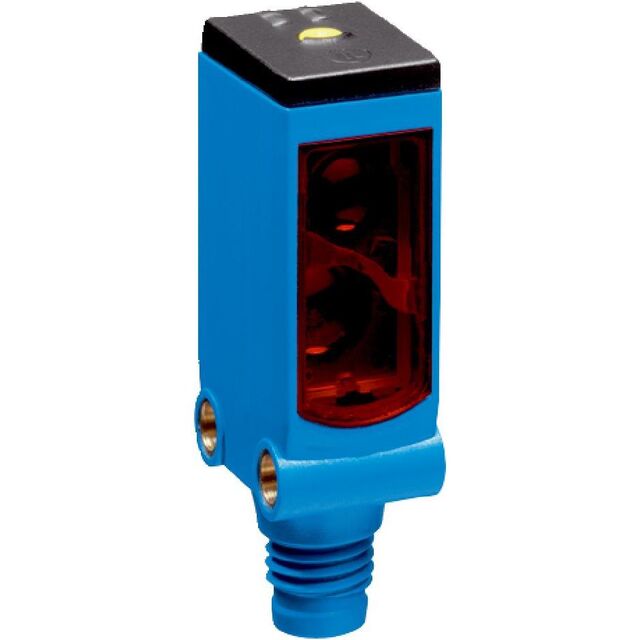

SENSOR PROXIMITY 120MM PNP
| Part | Light Source | Ingress Protection | Output Configuration | Connection Method | Sensing Distance [Max] | Sensing Distance [Min] | Sensing Distance [Max] | Sensing Distance [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Sensing Method | Adjustment Type | Voltage - Supply [Min] | Voltage - Supply [Max] | Response Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SICK, Inc. | RED (650nm) | IP67 | PNP | Connector M8 | 120 mm | 4 mm | 4.724 in | 0.157 " | -40 °C | 60 °C | Proximity | Adjustable | 10 VDC | 30 VDC | 500 µs |
 SICK, Inc. | RED (650nm) | IP66 IP67 | PNP | Connector M8 | 180 mm | 4 mm | 7.087 " | 0.157 " | -40 °C | 60 °C | Proximity | Adjustable | 10 VDC | 30 VDC | 450 µs |
 SICK, Inc. | RED (650nm) | IP67 | PNP | Connector M8 | 180 mm | 4 mm | 7.087 " | 0.157 " | -40 °C | 60 °C | Proximity | Adjustable | 10 VDC | 30 VDC | 410 µs |
SICK, Inc. | RED (650nm) | IP67 | PNP | Connector M8 | 180 mm | 4 mm | 7.087 " | 0.157 " | -40 °C | 60 °C | Proximity | Adjustable | 10 VDC | 30 VDC | 50 µs |
