146129 Series

Catalog

CONN HEADER SMD 11POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height [z]	Insulation Height [z]	Insulation Color	Contact Finish - Mating	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Connector Type	Contact Type	Fastening Type	Number of Rows	Contact Finish - Post	Number of Positions	Style	Insulation Material	Pitch - Mating	Pitch - Mating	Termination	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Number of Positions Loaded	Contact Shape	Current Rating (Amps)	Mounting Type	Voltage Rating
TE Connectivity AMP Connectors 5-146129-9	2.54 µm	100 µin	0.09 in	2.29 mm	Black	Gold	Unshrouded	0.76 Ám	30 Áin	105 ░C	-65 ░C	Copper Alloy	Header Breakaway	Male Pin	Push-Pull	1	Tin	11	Board to Board Cable	Liquid Crystal Polymer (LCP)	0.1 "	2.54 mm	Solder	0.32 in	8.13 mm	UL94 V-0	All	Square	3 A	Surface Mount	30 VAC

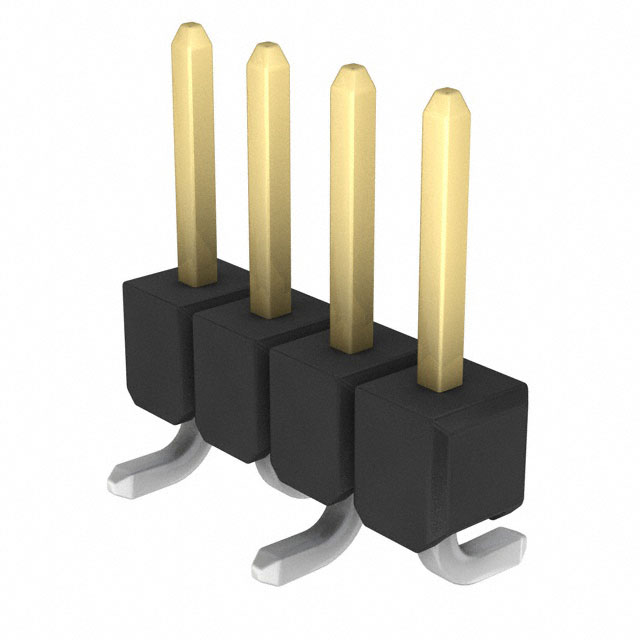

TE Connectivity AMP Connectors 5-146129-2	2.54 µm	100 µin	0.09 in	2.29 mm	Black	Gold	Unshrouded	0.76 Ám	30 Áin	105 ░C	-65 ░C	Copper Alloy	Header Breakaway	Male Pin	Push-Pull	1	Tin	4	Board to Board Cable	Liquid Crystal Polymer (LCP)	0.1 "	2.54 mm	Solder	0.32 in	8.13 mm	UL94 V-0	All	Square	3 A	Surface Mount	30 VAC
TE Connectivity AMP Connectors 5-146129-3	2.54 µm	100 µin	0.09 in	2.29 mm	Black	Gold	Unshrouded	0.76 Ám	30 Áin	105 ░C	-65 ░C	Copper Alloy	Header Breakaway	Male Pin	Push-Pull	1	Tin	5	Board to Board Cable	Liquid Crystal Polymer (LCP)	0.1 "	2.54 mm	Solder	0.32 in	8.13 mm	UL94 V-0	All	Square	3 A	Surface Mount	30 VAC
