2815-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

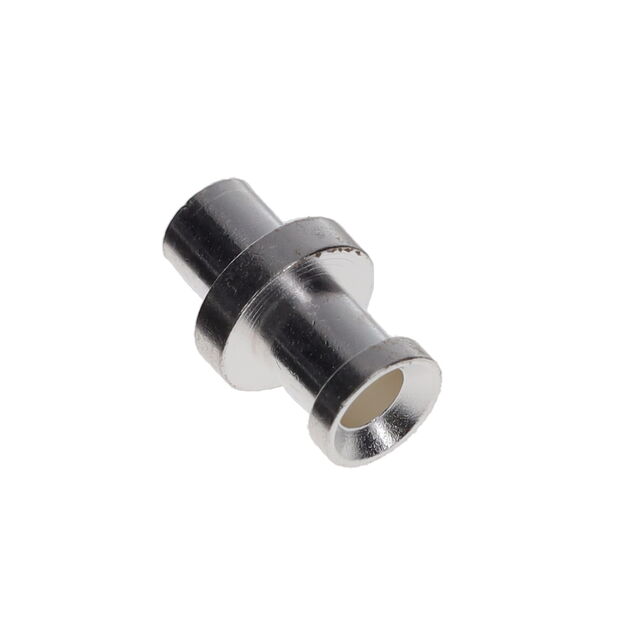

TERM TURRET SNG
| Part | Flange Diameter [diameter] | Flange Diameter [diameter] | Length - Overall [x] | Length - Overall [x] | Contact Finish Thickness | Contact Finish Thickness | Diameter - Turret Head [diameter] | Diameter - Turret Head [diameter] | Mounting Hole Diameter | Mounting Hole Diameter | Staking Side OD [diameter] | Staking Side OD [diameter] | Terminal Type | Number of Turrets | Contact Material | Length - Below Flange [x] | Length - Below Flange [x] | Staking Side ID | Staking Side ID | Contact Finish | Length - Above Board [x] | Length - Above Board [x] | Termination | Mounting Type | Insulation | Board Thickness | Board Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.187 in | 4.75 mm | 7.42 mm | 0.292 in | 200 Áin | 5.08 Ám | 3.58 mm | 0.141 in | 0.113 in | 2.87 mm | 0.109 in | 2.77 mm | Single End | Single | Brass Alloy | 2.67 mm | 0.105 " | 0.078 in | 1.98 mm | Tin | 0.187 in | 4.75 mm | Swage | Through Hole | Non-Insulated | 1.57 mm | 0.062 " |
 Mill-Max Manufacturing Corp. | 0.187 in | 4.75 mm | 7.42 mm | 0.292 in | 300 µin | 7.62 µm | 3.58 mm | 0.141 in | 0.113 in | 2.87 mm | 0.109 in | 2.77 mm | Single End | Single | Brass Alloy | 2.67 mm | 0.105 " | 0.078 in | 1.98 mm | Silver | 0.187 in | 4.75 mm | Swage | Through Hole | Non-Insulated | 1.57 mm | 0.062 " |
Mill-Max Manufacturing Corp. | 0.187 in | 4.75 mm | 7.42 mm | 0.292 in | 200 Áin | 5.08 Ám | 3.58 mm | 0.141 in | 0.113 in | 2.87 mm | 0.109 in | 2.77 mm | Single End | Single | Brass Alloy | 2.67 mm | 0.105 " | 0.078 in | 1.98 mm | Tin-Lead | 0.187 in | 4.75 mm | Swage | Through Hole | Non-Insulated | 1.57 mm | 0.062 " |
