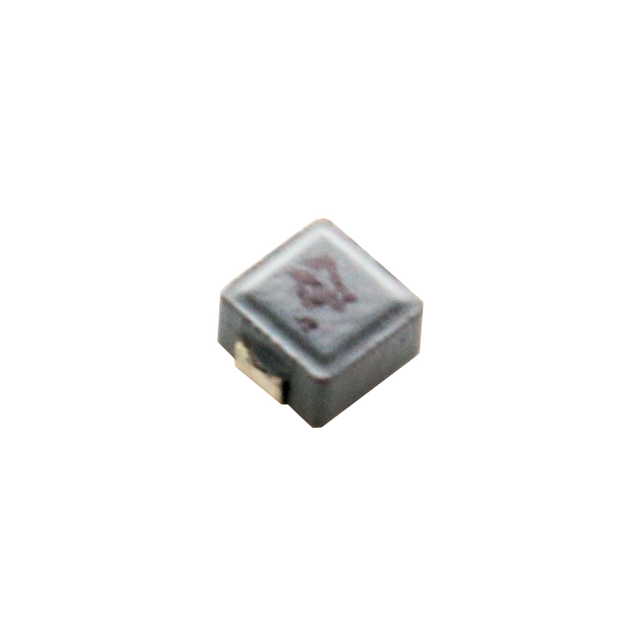

MPL-AY3020 Series

Manufacturer: Monolithic Power Systems Inc.

Catalog

POWER INDUCTOR (SMD), 3.3 ΜH, 2.5 A, SHIELDED, 3.7 A, MPL-AY SERIES

Part	DC Resistance (DCR)	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Current - Saturation (Isat)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Inductance	Package / Case	Mounting Type	Inductance Frequency - Test	Type	Shielding	Current Rating (Amps)
Monolithic Power Systems Inc. MPL-AY3020-3R3	121 mOhm	125 °C	-40 C	0.079 in	2 mm	3.7 A	0.138 in	0.126 in	3.5 mm	3.2 mm	3.3 µH	2-SMD J-Lead	Surface Mount	100 kHz	Molded	Unshielded	2.5 A
Monolithic Power Systems Inc. MPL-AY3020-5R6	209 mOhm	125 °C	-40 C	0.079 in	2 mm	2.8 A	0.138 in	0.126 in	3.5 mm	3.2 mm	5.6 µH	2-SMD J-Lead	Surface Mount	100 kHz	Molded	Unshielded	1.8 A
Monolithic Power Systems Inc. MPL-AY3020-6R8	250 mOhm	125 °C	-40 C	0.079 in	2 mm	2.6 A	0.138 in	0.126 in	3.5 mm	3.2 mm	6.8 µH	2-SMD J-Lead	Surface Mount	100 kHz	Molded	Unshielded	1.65 A
Monolithic Power Systems Inc. MPL-AY3020-2R2	64 mOhm	125 °C	-40 C	0.079 in	2 mm	5.3 A	0.138 in	0.126 in	3.5 mm	3.2 mm	2.2 µH	2-SMD J-Lead	Surface Mount	100 kHz	Molded	Unshielded	3 A
Monolithic Power Systems Inc. MPL-AY3020-4R7	173 mOhm	125 °C	-40 C	0.079 in	2 mm	3.1 A	0.138 in	0.126 in	3.5 mm	3.2 mm	4.7 ÁH	2-SMD J-Lead	Surface Mount	100 kHz	Molded	Unshielded	2 A
Monolithic Power Systems Inc. MPL-AY3020-100	370 mOhm	125 °C	-40 C	0.079 in	2 mm	1.75 A	0.138 in	0.126 in	3.5 mm	3.2 mm	10 µH	2-SMD J-Lead	Surface Mount	100 kHz	Molded	Unshielded	1.3 A
Monolithic Power Systems Inc. MPL-AY3020-8R2	345 mOhm	125 °C	-40 C	0.079 in	2 mm	1.95 A	0.138 in	0.126 in	3.5 mm	3.2 mm	8.2 µH	2-SMD J-Lead	Surface Mount	100 kHz	Molded	Unshielded	1.4 A
Monolithic Power Systems Inc. MPL-AY3020-R47	19.5 mOhm	125 °C	-40 C	0.079 in	2 mm	9 A	0.138 in	0.126 in	3.5 mm	3.2 mm	470 nH	2-SMD J-Lead	Surface Mount	100 kHz	Molded	Unshielded	6.3 A
Monolithic Power Systems Inc. MPL-AY3020-R68	26 mOhm	125 °C	-40 C	0.079 in	2 mm	8.6 A	0.138 in	0.126 in	3.5 mm	3.2 mm	0.68 µH	2-SMD J-Lead	Surface Mount	100 kHz	Molded	Unshielded	5.15 A
Monolithic Power Systems Inc. MPL-AY3020-1R5	35 mOhm	125 °C	-40 C	0.079 in	2 mm	5.9 A	0.138 in	0.126 in	3.5 mm	3.2 mm	1.5 µH	2-SMD J-Lead	Surface Mount	100 kHz	Molded	Unshielded	3.4 A
