6218-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

PRINTED CIRCUIT PIN TIN/NICKEL

Part	Terminal Type	Termination	Terminal Style	Length - Above Flange [x]	Length - Above Flange [x]	Flange Diameter [diameter]	Flange Diameter [diameter]	Mounting Type	Length - Below Flange [x]	Length - Below Flange [x]	Pin Size - Below Flange [diameter]	Pin Size - Below Flange [diameter]	Contact Material	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Pin Size - Above Flange [diameter]	Pin Size - Above Flange [diameter]	Contact Finish Thickness	Contact Finish Thickness	Length - Overall [x]	Length - Overall [x]	Contact Finish	Insulation	Pin Size - Above Flange	Pin Size - Below Flange	Pin Size - Below Flange
Mill-Max Manufacturing Corp. 6218-0-00-01-00-00-03-0	PC Pin	Press-Fit	Double End	0.142 in	3.61 mm	0.06 in	1.52 mm	Through Hole	4.62 mm	0.182 "	0.02 in	0.51 mm	Brass Alloy	1.45 mm	0.057 in	0.019 in	0.48 mm	200 Áin	5.08 Ám	10.13 mm	0.399 in	Tin	Non-Insulated
Mill-Max Manufacturing Corp. 6218-0-00-80-00-00-03-0	PC Pin	Press-Fit	Double End	0.188 in	4.78 mm	0.093 in	2.36 mm	Through Hole	2.54 mm	0.1 "			Brass Alloy	1.73 mm	0.068 "	0.04 in		200 Áin	5.08 Ám	10.64 mm	0.419 in	Tin	Non-Insulated	1.02 mm	1.7 mm	0.067 in
Mill-Max Manufacturing Corp. 6218-0-00-21-00-00-03-0	PC Pin	Press-Fit	Double End	0.142 in	3.61 mm	0.06 in	1.52 mm	Through Hole	4.62 mm	0.182 "	0.02 in	0.51 mm	Brass Alloy	1.45 mm	0.057 in	0.019 in	0.48 mm	20 µin	0.51 µm	10.13 mm	0.399 in	Gold	Non-Insulated
Mill-Max Manufacturing Corp. 6218-0-00-15-00-00-03-4	PC Pin	Press-Fit	Double End	0.188 in	4.78 mm	0.093 in	2.36 mm	Through Hole	2.54 mm	0.1 "			Brass Alloy	1.73 mm	0.068 "	0.04 in		10 Áin	0.25 Ám	10.64 mm	0.419 in	Gold	Non-Insulated	1.02 mm	1.7 mm	0.067 in

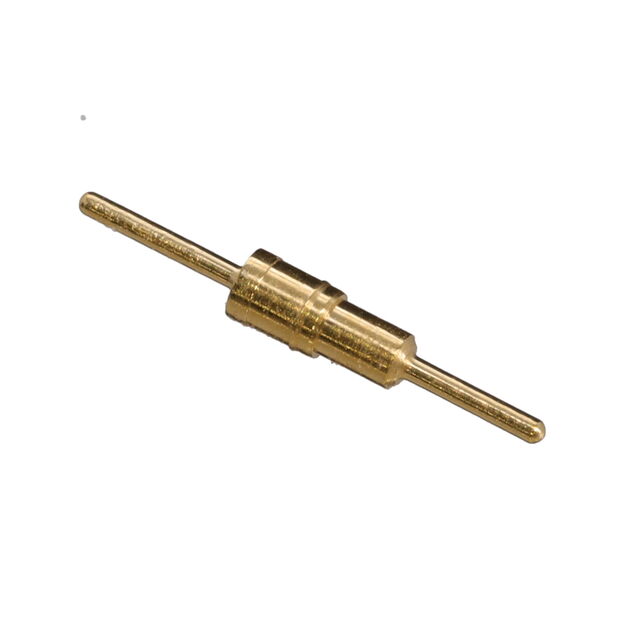

Mill-Max Manufacturing Corp. 6218-0-00-34-00-00-03-0	PC Pin	Press-Fit	Double End	0.142 in	3.61 mm	0.06 in	1.52 mm	Through Hole	4.62 mm	0.182 "	0.02 in	0.51 mm	Brass Alloy	1.45 mm	0.057 in	0.019 in	0.48 mm	50 µin	1.27 µm	10.13 mm	0.399 in	Gold	Non-Insulated
