1437577 Series

Catalog

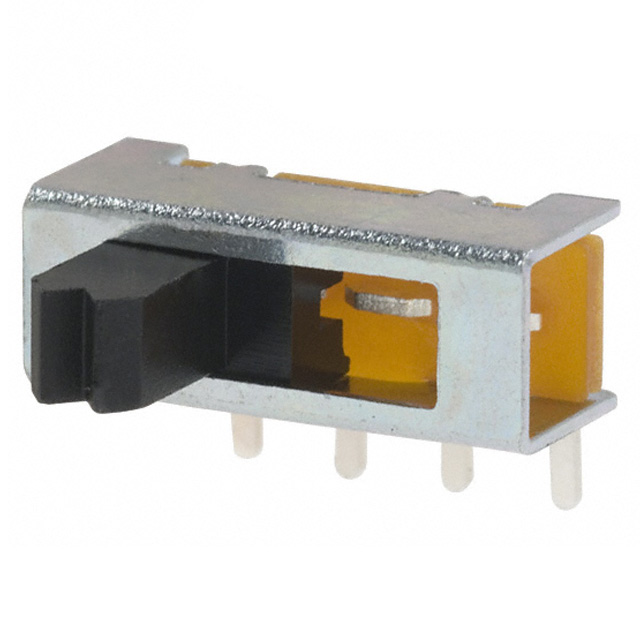

SWITCH SLIDE SP3T 250MA 125V

Part	Mechanical Life	Electrical Life	Operating Force	Actuator Material	Switch Travel	Mounting Type	Features	Actuator Type	Current Rating (Amps)	Voltage Rating - AC	Contact Timing	Actuator Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Voltage Rating - DC	Contact Material	Contact Finish	Termination Style	Circuit
TE Connectivity AMP Connectors 2-1437577-6	10000 Steps	6000 Cycles	0.25 kgf	Polybutylene Terephthalate (PBT)	3.2 mm	Right Angle Through Hole	Epoxy Sealed Terminals	Standard	150 mA 250 mA	125 V	Non-Shorting (BBM)	5 mm	85 °C	-10 °C	On-On-On	12 V	Copper Alloy	Silver	PC Pin	SP3T
TE Connectivity AMP Connectors 8-1437577-1	10000 Steps		0.25 kgf	Polyoxymethylene (Acetal) (POM)	2.5 mm	Right Angle Through Hole	Epoxy Sealed Terminals	Standard	300 mA	125 V	Shorting (MBB)	5 mm	60 °C	-10 °C	On-On		Copper Alloy	Silver	PC Pin	DPDT
TE Connectivity AMP Connectors 3-1437577-7	10000 Steps	6000 Cycles	350 gf	Polybutylene Terephthalate (PBT)	2.69 mm	Panel Mount	Epoxy Sealed Terminals	Standard	500 mA	125 V	Non-Shorting (BBM)	4.8 mm	85 °C	-20 ░C	On-On		Copper Alloy	Silver	Solder Lug	DPDT
