ECC04 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN CARDEDGE MALE 8POS 0.100

Part	Material - Insulation	Number of Positions	Card Thickness	Card Thickness	Number of Positions/Bay/Row [custom]	Pitch	Pitch	Mounting Type	Read Out	Contact Material	Contact Finish	Termination	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Gender	Card Type	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Features

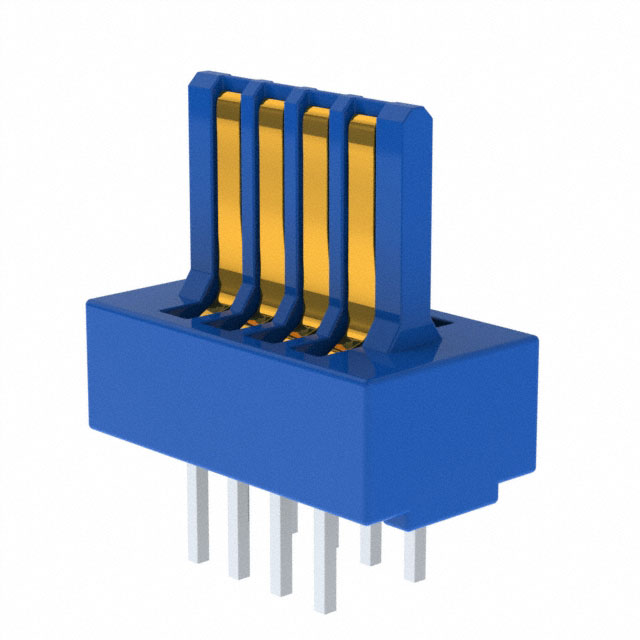

Sullins Connector Solutions ECC04MMSN	Polybutylene Terephthalate (PBT)	8	1.57 mm	0.062 in	4	0.1 "	2.54 mm	Through Hole	Dual	Phosphor Bronze	Gold	Solder	30 Áin	0.76 Ám	2	Male	Fits Female Edgecards	-65 ░C	125 °C
Sullins Connector Solutions ECC04MMDD	Polybutylene Terephthalate (PBT)	8	1.57 mm	0.062 in	4	0.1 "	2.54 mm	Right Angle Through Hole	Dual	Phosphor Bronze	Gold	Solder	30 Áin	0.76 Ám	2	Male	Fits Female Edgecards	-65 ░C	125 °C	Flush Mount Top Opening Unthreaded	3.18 mm	0.125 "
Sullins Connector Solutions ECC04MMMN	Polybutylene Terephthalate (PBT)	8	1.57 mm	0.062 in	4	0.1 "	2.54 mm	Through Hole	Dual	Phosphor Bronze	Gold	Wire Wrap	30 Áin	0.76 Ám	2	Male	Fits Female Edgecards	-65 ░C	125 °C
Sullins Connector Solutions ECC04MMVD-S189	Polybutylene Terephthalate (PBT)	8	1.57 mm	0.062 in	4	0.1 "	2.54 mm	Right Angle Through Hole	Dual	Phosphor Bronze	Gold	Solder	30 Áin	0.76 Ám	2	Male	Fits Female Edgecards	-65 ░C	125 °C	Flush Mount Top Opening Unthreaded	3.18 mm	0.125 "

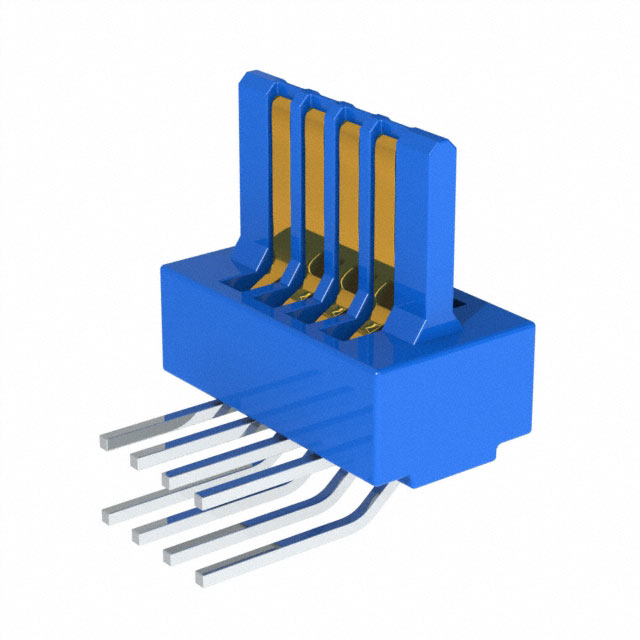

Sullins Connector Solutions ECC04MMDN	Polybutylene Terephthalate (PBT)	8	1.57 mm	0.062 in	4	0.1 "	2.54 mm	Right Angle Through Hole	Dual	Phosphor Bronze	Gold	Solder	30 Áin	0.76 Ám	2	Male	Fits Female Edgecards	-65 ░C	125 °C
Sullins Connector Solutions ECC04MMND	Polybutylene Terephthalate (PBT)	8	1.57 mm	0.062 in	4	0.1 "	2.54 mm	Board Edge Straddle Mount	Dual	Phosphor Bronze	Gold	Solder	30 Áin	0.76 Ám	2	Male	Fits Female Edgecards	-65 ░C	125 °C	Flush Mount Top Opening Unthreaded	3.18 mm	0.125 "	Card Extender
Sullins Connector Solutions ECC04MMNN	Polybutylene Terephthalate (PBT)	8	1.57 mm	0.062 in	4	0.1 "	2.54 mm	Board Edge Straddle Mount	Dual	Phosphor Bronze	Gold	Solder	30 Áin	0.76 Ám	2	Male	Fits Female Edgecards	-65 ░C	125 °C				Card Extender
Sullins Connector Solutions ECC04MMMD	Polybutylene Terephthalate (PBT)	8	1.57 mm	0.062 in	4	0.1 "	2.54 mm	Through Hole	Dual	Phosphor Bronze	Gold	Wire Wrap	30 Áin	0.76 Ám	2	Male	Fits Female Edgecards	-65 ░C	125 °C	Flush Mount Top Opening Unthreaded	3.18 mm	0.125 "
Sullins Connector Solutions ECC04MMRN	Polybutylene Terephthalate (PBT)	8	1.57 mm	0.062 in	4	0.1 "	2.54 mm	Board Edge Straddle Mount	Dual	Phosphor Bronze	Gold	Solder	30 Áin	0.76 Ám	2	Male	Fits Female Edgecards	-65 ░C	125 °C				Card Extender

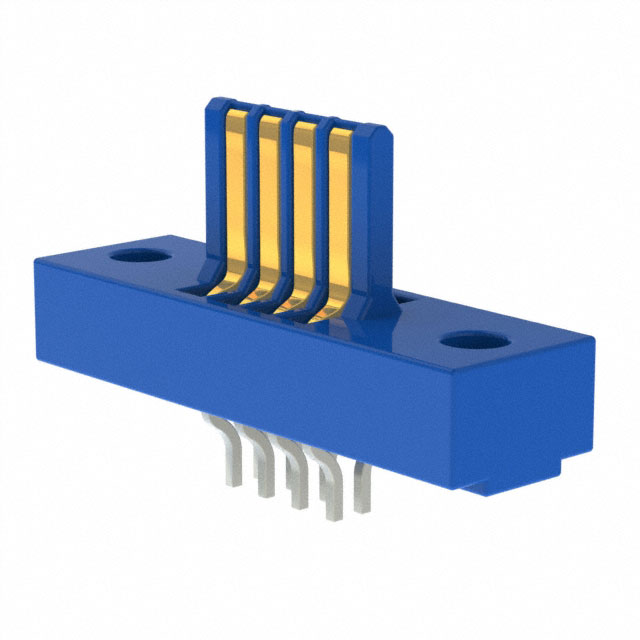

Sullins Connector Solutions ECC04MMRD	Polybutylene Terephthalate (PBT)	8	1.57 mm	0.062 in	4	0.1 "	2.54 mm	Board Edge Straddle Mount	Dual	Phosphor Bronze	Gold	Solder	30 Áin	0.76 Ám	2	Male	Fits Female Edgecards	-65 ░C	125 °C	Flush Mount Top Opening Unthreaded	3.18 mm	0.125 "	Card Extender
