ISOW7744 Series

Low-emissions, low-ripple, quad-channel, 0/4, reinforced digital isolator with integrated power

Catalog

Low-emissions, low-ripple, quad-channel, 0/4, reinforced digital isolator with integrated power

Part	Mounting Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Pulse Width Distortion (Max)	Channel Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Data Rate	Package / Case	Package / Case [y]	Package / Case [y]	Type	Technology	Common Mode Transient Immunity (Min) [Min]	Supplier Device Package	Propagation Delay tpLH / tpHL (Max)	Isolated Power	Operating Temperature [Max]	Operating Temperature [Min]	Number of Channels	Inputs - Side 1/Side 2 [custom]	Inputs - Side 1/Side 2 [custom]

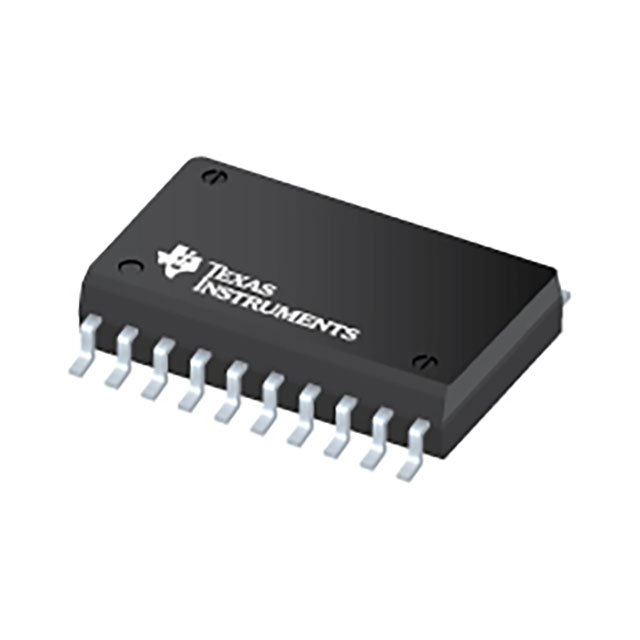

Texas Instruments ISOW7744FDFMR	Surface Mount	2.4 ns	2.5 ns	5 ns	Unidirectional	2.97 V 4.5 V	3.63 V 5.5 V	100 Mbps	20-SOIC	0.295 in	7.5 mm	General Purpose	Capacitive Coupling	85 kV/Ás	20-SOIC	15.7 ns		125 °C	-40 °C	4	4	0

Catalog

Low-emissions, low-ripple, quad-channel, 0/4, reinforced digital isolator with integrated power

Key Features

• 100 Mbps data rateIntegrated DC-DC converter with low-emissions, low-noiseEmission optimized to meet CISPR 32 and EN 55032 Class B with >5 dB margin on 2 layer boardLow frequency power converter at 25 MHz enabling low noise performanceLow output ripple: 24 mVHigh efficiency output powerEfficiency at max load: 46%Up to 0.55-W output powerV ISOOUT accuracy of 5%5 V to 5 V: Max available load current = 110 mA5 V to 3.3 V: Max available load current = 140 mA3.3 V to 3.3 V: Max available load current = 60 mAIndependent power supply for channel isolator & power converterLogic supply (V IO): 1.71-V to 5.5-VPower converter supply (V DD): 3-V to 5.5-VRobust electromagnetic compatibility (EMC)System-level ESD, EFT, and surge immunity±8 kV IEC 61000-4-2 contact discharge protection across isolation barrierReinforced and Basic isolation optionsHigh CMTI: 100-kV/µs (typical)Safety Related Certifications:VDE reinforced and basic insulation per DIN VDE V 0884-11:2017-01UL 1577 component recognition programIEC 62368-1, IEC 61010-1, IEC 60601-1 and GB 4943.1-2011 certificationsISOW774xB devices are plannedExtended temperature range: –40°C to +125°C20-pin wide body SOIC package100 Mbps data rateIntegrated DC-DC converter with low-emissions, low-noiseEmission optimized to meet CISPR 32 and EN 55032 Class B with >5 dB margin on 2 layer boardLow frequency power converter at 25 MHz enabling low noise performanceLow output ripple: 24 mVHigh efficiency output powerEfficiency at max load: 46%Up to 0.55-W output powerV ISOOUT accuracy of 5%5 V to 5 V: Max available load current = 110 mA5 V to 3.3 V: Max available load current = 140 mA3.3 V to 3.3 V: Max available load current = 60 mAIndependent power supply for channel isolator & power converterLogic supply (V IO): 1.71-V to 5.5-VPower converter supply (V DD): 3-V to 5.5-VRobust electromagnetic compatibility (EMC)System-level ESD, EFT, and surge immunity±8 kV IEC 61000-4-2 contact discharge protection across isolation barrierReinforced and Basic isolation optionsHigh CMTI: 100-kV/µs (typical)Safety Related Certifications:VDE reinforced and basic insulation per DIN VDE V 0884-11:2017-01UL 1577 component recognition programIEC 62368-1, IEC 61010-1, IEC 60601-1 and GB 4943.1-2011 certificationsISOW774xB devices are plannedExtended temperature range: –40°C to +125°C20-pin wide body SOIC package

Description

The ISOW77xx family of devices are galvanically-isolated quad-channel digital isolator with an integrated high-efficiency power converter with low emissions. The integrated DC-DC converter provides up to 550 mW of isolated power, eliminating the need for a separate isolated power supply in space-constrained isolated designs. The ISOW77xx family of devices are galvanically-isolated quad-channel digital isolator with an integrated high-efficiency power converter with low emissions. The integrated DC-DC converter provides up to 550 mW of isolated power, eliminating the need for a separate isolated power supply in space-constrained isolated designs.
